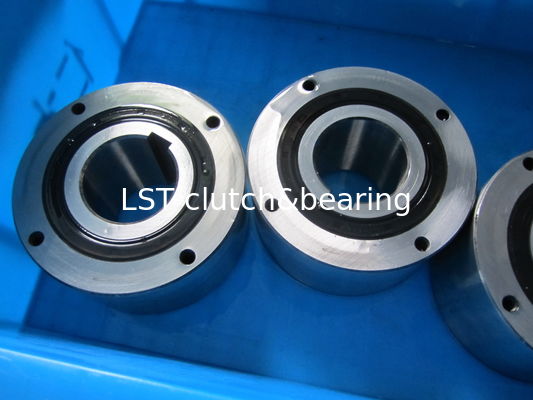

alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch

alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch
alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch

Large Image :  alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch

Product Details:
Place of Origin: Jiangsu,China
Brand Name: R&B
Certification: SGS
Model Number: BS85
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD276.00-300.00/pcs
Packaging Details: Industrial packing and commercial packing
Supply Ability: 100000pcs/per month

alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch

Description
Material: Gcr15 Model: BS85
Application: ,textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks ID: 70mm,75mm,80mm,85mm
OD: 210mm Height: 115mm
Torqure Capacity: 5880N.M Weight: 27kg/pcs



BS 95 BS95 Cam Clutch One Way Backstop Clutch Overrunning Bearing

Product Description

BS SERIES CAM CLUTCH



MODELS BS30 TO BS135

Data Sheet

Item BS
Material GCr15
Torque 7840 Nm
Drag Torque 9.80 Ncm
Max. Overrunning Inner Race 250 r/min
Weight 29.4 kg
Port Shanghai;Ningbo
Delivery time 10-15 days



Different Sizes For Your Reference

alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch 0



Dimensions and Capacities dimensions in mm



rough the center of the clutch.
10. Torque arms for the BS Cam Clutch are standardized.

Catalogue of BS30-BS 135



Model

Torque
Capacity
(N·m)
Max.
Overrunning
(r/min)
Inner Race

Drag
Torque
(N·m)


A


B


C


PCD
D


E


S

H-M
Size× Pitch
× No.of Tapped Holes
BS30 294 350 0.58 64 90 64 80 45 13 M 6 ×P1.0×4
BS50 784 300 0.98 67 125 67 110 70 16 M 8 ×P1.25×4
BS65 1570 340 3.92 90 160 85 140 90 20 M10 ×P1.5×6
BS75 2450 300 5.88 90 170 85 150 100 20 M10 ×P1.5×6
BS85 5880 300 7.84 115 210 110 185 115 30 M12 ×P1.75×6
BS95 7840 250 9.8 115 230 110 200 130 30 M14 ×P2.0× 6
BS110 10800 250 14.7 115 270 110 220 150 30 M16 ×P2.0× 6
BS135 15700 200 19.6 135 320 130 280 180 30 M16 ×P2.0× 8
Model Torque
Capacity (Nm)
  Drag Torque(N-m) A B C PCD
D
E S H-M Size× Pitch
× No.of Tapped Holes
BS30 294 350 0.58 64 90 64 80 45 13 M 6 ×P1.0×4
BS50 784 300 0.98 67 125 67 110 70 16 M 8 ×P1.25×4
BS65 1570 340 3.92 90 160 85 140 90 20 M10 ×P1.5×6
BS75 2450 300 5.88 90 170 85 150 100 20 M10 ×P1.5×6
BS85 5880 300 7.84 115 210 110 185 115 30 M12 ×P1.75×6
BS95 7840 250 9.8 115 230 110 200 130 30 M14 ×P2.0× 6
BS110 10800 250 14.7 115 270 110 220 150 30 M16 ×P2.0× 6
BS135 15700 200 19.6 135 320 130 280 180 30 M16 ×P2.0× 8


Catalogue of BS160-450

Model Torque
Capacity
(N·m)
Max.
Overrunning
(r/min)
Inner Race
Drag
Torque
(N·m)
A B C PCD D E S H-M Size× Pitch
× No.of Tapped
Holes
Grease
Filler Hole
(Size)
Q'ty
Grease
(kg)
Bore Diameter
Range (mm)
Min
Bore
Max
Bore
BS160 24500 100 33.1 130 360 130 315 220 40 M20×P2.5×10 PT 1/4 0.12 100 to 160 98.1 85.6
BS200 37200 100 44.1 150 430 145 380 265 40 M22×P2.5×8 PT 1/4 0.14 100 to 200 167 140
BS220 49000 80 73.5 235 500 230 420 290 40 M20×P2.5×16 PT 1/4 0.8 150 to 220 301 264
BS250 88200 50 93.1 295 600 290 530 330 50 M24×P3.0×16 PT 1/4 1.1 175 to 250 580 523
BS270 123000 50 98 295 650 290 575 370 50 M24×P3.0×16 PT 1/4 1.2 200 to 270 620 562
BS300 176000 50 108 295 780 290 690 470 60 M30×P3.5×16 PT 1/4 1.3 230 to 300 952 885
BS335 265000 50 137 305 850 320 750 495 70 M36×P4.0×16 PT 1/4 1.4 250 to 335 1140 1040
BS350 314000 50 157 320 930 360 815 535 70 M36×P4.0×16 PT 1/4 1.5 250 to 350 1600 1470
BS425 510000 50 216 440 1030 450 940 635 70 M36×P4.0×18 - oil 6,000ml 325 to 425 2450 2240
BS450 686000 50 245 450 1090 480 990 645 80 M42×P4.5×18 - oil 7,000ml 350 to 450 2820 2580


BS, BS-R SERIES CAM CLUTCH
Installation and Usage
1. For prevention of rotation in the reverse direction at slow speeds on conveyors or pumps.
2. Before installation, verify that the direction of rotation of the inner race of the BS Cam Clutch (shown by the arrow on the inner race) is the same as the direction of rotation of the conveyor.
3. Securely install the torque arm to the BS Cam Clutch using bolts of strength 10.9 or higher. Make sure that the contact between the surface of the torque arm and the side of the outer race is level and free of dust.
4. Recommended shaft tolerance is h7 or h8.
5. When inserting the BS Cam Clutch on the shaft, apply pressure only on the inner race. Do not tap the inner race directly with a hammer or exert any force upon the outer race, dust seal, or dust plate.
6. Always use a parallel key for installation onto the shaft and then fix the BS Cam Clutch to the shaft with the end plate. Never use a tapered key.
7. When installing models above BS160 (grease lubricated types), place one of the four oil plugs in
The direct bottom location. This will allow for easy drainage of the grease for cleaning.
8. While the shaft is rotating, the end of the torque arm will swing to some extent in the direction of rotation. Support the torque arm end only in the direction of rotation, but be sure to allow it a certain amount of free swing. If the torque arm end is fixed securely (see installation diagram), the inside of the clutch becomes twisted, and this can result in damage to the components.
9. For models BS30 to BS200, a single torque arm on one side is sufficient, but for models 220 to BS450, use two torque arms, one on each side. Install the torque arms evenly so the force is transmitted th




Mounting Example

BS 95 BS95 Cam Clutch One Way Backstop Clutch Overrunning Bearing

BS 95 BS95 Cam Clutch One Way Backstop Clutch Overrunning Bearing

alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch 3

alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch 4





Detailed Image

Sprag Clutch AS (NSS TSS) One Way Clutch



alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch 6





Company Information



Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



Workshop

alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch 7

Manufacture Processing

alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch 8

Testing equipment



alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch 9



Main products



1. One Way Bearing

alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch 10

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings

alternative TSUBAKI high quality R&B brand BS85 backstop one way cam clutch 11



Applications:



Backstop

A Backstop application is where rotation

is allowed in one direction and stopped in

the opposite.

Application examples:

· Conveyor equipment

· Mixers

· High voltage switches

· Furniture industry

· Turnstiles and revolving doors

· Geared motors

· Winches

· Elevators

· Cranes

· Strap/belt tighteners

· Bucket conveyors

· Belt reversing locks

· Fans

· Automatic doors (subway)

· Fire damper flaps

· Aviation technology

· Roller plants

· Summer skiing



Indexing clutch

A repeated drive then idle motion will

be transferred to the driven side, step by

step, as rotary motion in one direction (the

clamping direction).



Application examples:

·Paper processing (advance)

· Seeding machines

· Staplers (staples)

· Conveyor belts (drive)

· Ratchets

· Ratchet wrenches

· Roller advance

· Installation tools

· Automation technology





Overrunning clutch

If the speed of the driven side exceeds the

speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

Application examples:

·Copier machines

· Printing machines

· Conveyor equipment

· Transport equipment (speed matching)

· Starters for combustion engines

· Ergometers

· E-bikes

· Bicycle hubs

· Starters

· Emergency power aggregates

· Generators

· Hybrid applications (E-mobility)

· Palletizing and storage systems

· Model helicopters

· Hand operated sirens

· Roller coasters

· Washing systems

· Continuous ovens

· Compressors

· Compensating gearboxes

· Gas turbine drives

· Pump drives

· Belt drives

· Wheelchairs
