Home ProductsSprag freewheel one way clutch

FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series

Certification
China Changzhou Lisongtai Industrial Motion Technology Co.,LtD certification
I'm Online Chat Now

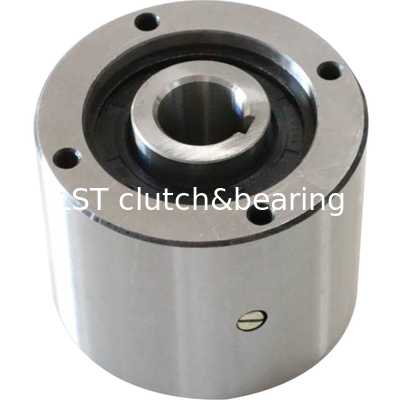

FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series

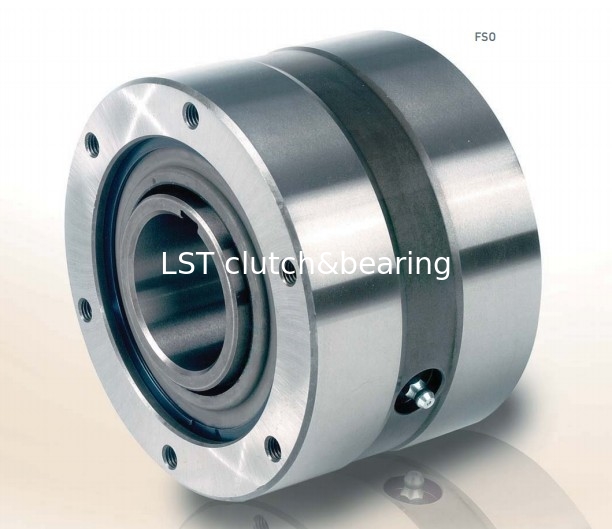

FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series

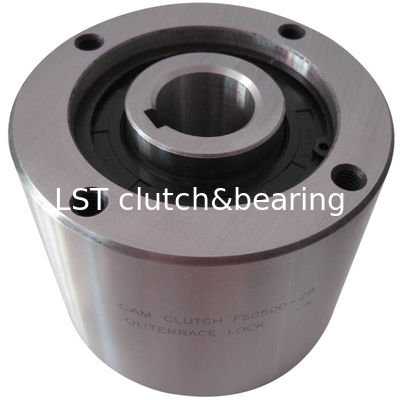

FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series

Large Image :  FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series

Product Details:
Place of Origin: Jiangsu,China
Brand Name: LST
Certification: SGS,ISO9001:2008
Model Number: FSO500-28
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD120.00-150.00/pcs
Packaging Details: Industrial packing and commercial packing
Supply Ability: 10000pcs/per month

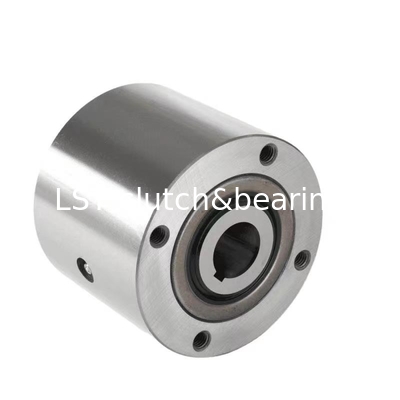

FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series

Description
Material: Gcr15 Model: FSO500-28
Application: ,textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks ID: 28mm
OD: 107.95mm Height: 88.90mm
Torqure Capacity: 1621N.M Weight: 4.8kg/pcs

Product Description
Product Model: FSO(HPI)

Types FSO, FSO-GR, and HPI 300 to 700 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.
Units are delivered oil or grease lubricated according to the type. It is a Formsprag USA design with a ?full sprag complement? that gives a very high torque for a given diameter. Any overload is resisted by a sprag to sprag abutment, avoiding a sprag tilt over. Types FSO and HPI are oil lubricated and use standard shaft lip seals. Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals. Type HPI is specially designed for high speed indexing applications.
One Way Clutch (FSO HPI))



FSO/HPI300-700

Type Size   Overrunning speeds   Lubricant Weight torqueDrag







FSO
FSO-GR
HPI
    FSO FSO-GR dH7-bxh d4) A B C E F G z J K L f FSO FSO..GR HPI   TR
  TKN1) nmax2) nmax3)   min-max   -0.05
[Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]     [mm]   [mm] [ml] [ml] [ml] [kg] [Ncm]
300 379 3000/900 3600/900 15-5x5 12... 19 63.5 76.2 60.45 1.6 28.58 66.67 4 M8 13 M6 0.8 7 10 14 1.6 18
400 407 2800/850 3600/850 18-6x6 12... 22 69.85 88.9 68.07 1.6 30 73 4 M8 13 M6 0.8 10 20 20 2.7 27
500 1621 2500/800 3000/800 30-8x7 19... 33 88.9 107.95 85.73 1.6 45 92 4 M8 16 M6 1.5 22 35 35 4.8 31
        40-12x8
600 3105 2200/750 2400/750 45-14x9 24... 57 95.25 136.525 92.2 1.6 63.5 120.6 6 M8 16 M6 1.6 52 84 84 8.6 62
        50-14x6
        50-14x9
700 6900 1600/450 2000/450 60-18x11 48... 82 127 180.975 123.85 1.6 90 158.75 8* M10* 20 M6 1.6 168 280 280 19 156
        65-18x11
        70-20x12           101,65)





FSO/HPI750-1027
Type Torque
capacity
Overrunning speed dH7 A B C E F G k f Wegiht Drag Torque
750 9660 1800/650 75-20x12 152.4 222.25 149.2 1.6 107.74 177.8 25 1.6 38 5.08
      80-22x14
      85-22x14
      80-22x14
800 17940 1500/525 90-25x14 152.4 254 149.2 1.6 139.7 227 25 1.6 46 7.12
      100-28x16
      110-28x16
      100-28x16
900 24408 1350/500 110-28x16 161.9 304.8 158.7 1.6 161.92 247.65 32 1.6 71 8.47
      120-32x18
      130-32x18
      130-32x18
1027 36612 700/375 150-36x20 168.3 381 165.1 3.2 228.6 298.45 32 3.2 113 13.56
      175-45x25
1) T max = 2 × T KN
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus
2 extra-holes at 180°

MOUNTING EXAMPLE
One Way Clutch for Indexing Applications Fso300-700

FSO 300-1027 /HPI300-1027 Self-contained sprag clutch.

Model Number:
FSO 300, FSO 400, FSO 500, FSO 600, FSO 700, FSO 750, FSO 800, FSO 900, FSO 1027, HPI 300, HPI 400, HPI 500, HPI 600, HPI 700, HPI 750, HPI 800, HPI 900, HPI 1027

Fso 300-1027 /Hpi300-1027 Self-Contained Sprag Clutch
Part No. Dimension (mm) G Mass
FSO HPI B D C D1 E S n-m numbers (kg)
FSO 300 HPI 300 60.45 76.2/76.15 63.5 28.58 66.67 - 1.58×45° 4 1.6
FSO 400 HPI 400 68.26 88.9/88.85 69.85 30.15 73.02 - 1.58×45° 4 2.7
FSO 500 HPI 500 85.72 107.95/107.9 88.9 44.45 92.07 - 1.58×45° 4 4.8
FSO 600 HPI 600 92.07 136.53/136.47 95.25 63.50/69.09 120.65 - 1.58×45° 6 8.6
FSO 700 HPI 700 123.8 180.97/180.92 127 90.42/101.6 158.75 - 1.58×45° 8 19
FSO 750 HPI 750 149.2 222.25/222.2 152.4 107.95 177.8 31.75 1.58×45° 8 38
FSO 800 HPI 800 149.2 254/253.95 152.4 139.7 227.01 31.75 1.58×45° 8 46
FSO 900 HPI 900 158.8 304.8/304.72 161.9 161.92 247.65 34.92 1.58×45° 10 71
FSO 1027 HPI 1027 165.1 381/380.92 168.3 228.6 298.45 34.92 3.17×45° 12 113





Company Information

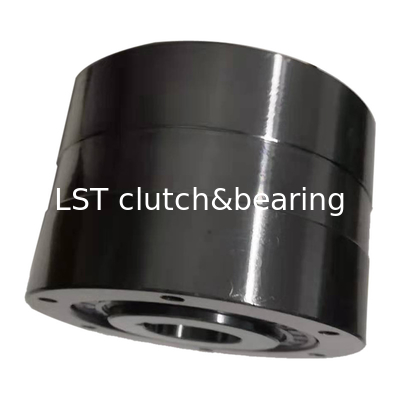

FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series 3



Workshop Manufacture Processing

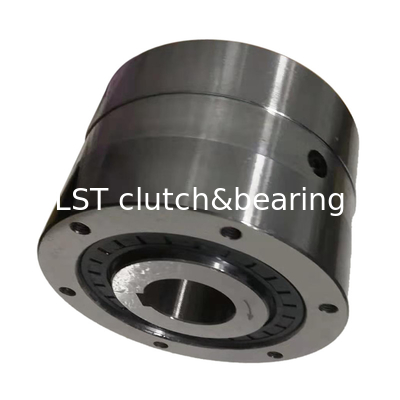

FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series 4

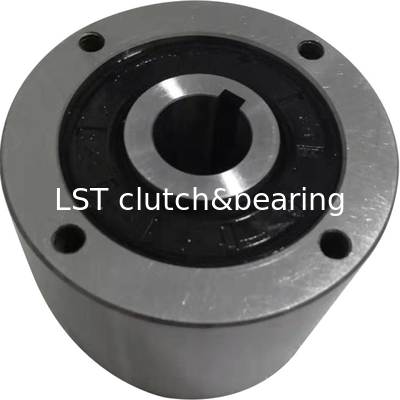

FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series 5

Testing equipment



FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series 6



Main products



1. One Way Bearing

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings





Applications:



Backstop

A Backstop application is where rotation

is allowed in one direction and stopped in

the opposite.

Application examples:

· Conveyor equipment

· Mixers

· High voltage switches

· Furniture industry

· Turnstiles and revolving doors

· Geared motors

· Winches

· Elevators

· Cranes

· Strap/belt tighteners

· Bucket conveyors

· Belt reversing locks

· Fans

· Automatic doors (subway)

· Fire damper flaps

· Aviation technology

· Roller plants

· Summer skiing



Indexing clutch

A repeated drive then idle motion will

be transferred to the driven side, step by

step, as rotary motion in one direction (the

clamping direction).



Application examples:

·Paper processing (advance)

· Seeding machines

· Staplers (staples)

· Conveyor belts (drive)

· Ratchets

· Ratchet wrenches

· Roller advance

· Installation tools

· Automation technology





Overrunning clutch

If the speed of the driven side exceeds the

speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

Application examples:

·Copier machines

· Printing machines

· Conveyor equipment

· Transport equipment (speed matching)

· Starters for combustion engines

· Ergometers

· E-bikes

· Bicycle hubs

· Starters

· Emergency power aggregates

· Generators

· Hybrid applications (E-mobility)

· Palletizing and storage systems

· Model helicopters

· Hand operated sirens

· Roller coasters

· Washing systems

· Continuous ovens

· Compressors

· Compensating gearboxes

· Gas turbine drives

· Pump drives

· Belt drives

· Wheelchairs



FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series 7



Our advanges:

FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series 8





 MODELS:

1. One way clutch MG Series MG300/MG400/MG500/MG600/MG700/MG750/MG800/MG900/MG100/MG1100/MG1200/MG13

2. One way clutch MZ Series MZ15/MZ17/MZ20/MZ30-22/MZ30-25/MZ30/MZ35/MZ45-40/MZ45-40/MZ60-50/MZ60-55/MZ60/MZ70-65/MZ70

3. B200 series cam clutch
B203/B204/B205/B206/B207/B208/B209/B210/B211/B212/B213/B214

4. BB series one way bearings
BB15/BB17/BB20/BB25/BB30/BB35/BB40/BB15-1K-K/BB17-1K-K/BB20-1K-K/BB25-1K-K /BB30-1K-K/BB35-1K-K/BB40-1K-K/BB15-2K-K/BB17-2K-K/BB20-2K-K/BB25-2K-K /BB30-2K-K/BB35-2K-K/BB40-2K-K/


5. CSK series one way bearings
CSK8/CSK12/CSK15/CSK15-1K/CSK15-2K/CSK17/CSK17P/CSK17PP/CSK20/CSK20P/CSK20PP/CSK25/CSK25P/CSK25PP/CSK30/CSK30P/CSK30PP/CSK35/CSK35P/CSK35PP/CSK40/CSK40-1K/CSK40-2K/CSK8-RS/CSK35-2RS/CSK12-2RS/SK40-2RS/CSK15-2RS/CSK20P-2RS/CSK17-2RS /CSK25P-2RS CSK20-2RS/CSK30P-2RS CSK25-2RS /CSK30PP-2RS CSK30-2RS


6. GFK series one way clutch bearings
GFK20/GFK25 /GFK30 /GFK35 /GFK40/GFK45 / GFK50

7. DC series sprag freewheel cage one way clutch
DC2222G /DC2776/ DC2222G /DC3175 (3C) DC2776 /DC3175A DC3175 (3C) /DC3034/ DC3175A
DC3809A/ DC3034 /DC3809A(3C) /DC3809A /DC4127 /DC3809A(3C) /DC4127
DC5476A/ DC4972 (4C) /DC5476A (4C) /DC5476A/ DC5476B/ DC5476A

8. BWC BW. X.BWX series cam clutch
BW-13161/BW-13167/BW-13167MZ/BW-13214/BW-13214/BW-13231/BW-13243/BW-13244/BW-13255/BWC-13168/BWC-13219A/BWC-13229/BWX/BWC/X/RC series freewheel cage overrunning clutch
BWX134939/BWX13219/BWX132640/BWC13230/BWC13244/BWX132909/BWX133339/BWC13167/BWC13239/BWC13168/BWX13261/BWX133403 X133400B /X133400/ X133401 X133402 /X133403 X134398 /X134954/ X135005/ X135006/ X135036/ X135041/ X135052 /X135067 RC061008 /RC081208 RC101410/ RC121610

9. RSBW series one way clutches
RSBW25/ RSBW30/RSBW35/ RSBW40/RSBW45/RSBW50/RSBW55/RSBW60
RSBW65/RSBW70/RSBW75/RSBW80/RSBW85/RSBW90


10. PB series one way clutches
PB3/PB5/PB6/PB8/PB10/PB12/PB14

11. TSS Freewheels sprag one way clutch
TSS8/TSS10/TSS12/TSS15/TSS20/TSS25/TSS30/TSS35/TSS40/TSS45/TSS50/TSS60


12. TFS series cam clutches
TFS12/TFS15/TFS17/TFS20/TFS25/TFS30/TFS35/TFS40/TFS45/TFS50/TFS60/TFS70/TFS8/TFS90

13. AS(NSS or TSS)series one way clutch
TSS8 AS8 NSS8/ TSS10 AS10 NSS10/ TSS12 AS12 NSS12/TSS15 AS15 NSS15/
TSS20 AS20 NSS20/ TSS25 AS25 NSS25/ TSS30 AS30 NSS30/ TSS35 AS35


14. ASNU(NFS or TFS) series one way clutch
TFS12 ASNU12 NFS12/ TFS15 ASNU15 NFS15/ TFS17 ASNU17 NFS17/ TFS20 ASNU20NFS20/TFS25 ASNU25 NFS25/TFS30 ASNU30 NFS30/TFS35 ASNU35

15. NF roller type one way clutch
STIEBER NF8 GFRN55/STIEBER NF12 GFRN60 /STIEBER NF15 GFRN70/
STIEBER NF20 GFRN80/STIEBER NF25 GFRN90/STIEBER NF30 GFRN100


16. AE roller type one way clutch
STIEBER AE8/STIEBER AE12/ STIEBER AE15/ STIEBER AE20/ STIEBER AE25/ STIEBER AE30/ STIEBER AE35/ STIEBER AE40/ STIEBER AE45/ STIEBER AE50/STIEBER AE55/ STIEBER AE60/

17. AA roller type one way clutch
STIEBER AA20/ STIEBER AA25/ STIEBER AA30/STIEBER AA35 /STIEBER AA40/STIEBER AA45/ STIEBER AA50/STIEBER AA55/STIEBER AA60/STIEBER AA70/ STIEBER AA80/STIEBER AA90/
STIEBER AA100/ STIEBER AA120/ STIEBER AA150/

18.GFRGFRN series miler overrunning clutch
GFR12/GFR15/GFR20/ GFR25/GFR30/ GFR35/GFR40/GFR45/GFR50/GFR55/GFR60/GFR70


19.FE series freewheel one way clutch

FE448 /FE443 /FE422/FE423/FE428/FE427/FE432/FE433/FE453 /FE437

20. One way clucth CKA Series bearngs: CK-A1542/CK-A1747/CK-A2052/CK-A2562/CK-A3072/CK-A3580/CK-A4090/CK-A45100/CK-A50110/CK-A60130

21. Drawn cup needle Roller one way HF0406/HF0612/HF0812/HF1012/HF1216HF1416/HF1616/HF1816/HF2016/HF25


22.KI series:KI196


23.HYCS cam clutch :HYC8S/HYC10S/HYC12S/HYC15S/HYC20S/HYC25S/HYC30S/HYC35S/HYC40S/HYC45S/HYC50S/HYC60S

24.LD series one way clutch:LD04/LD05/LD06/LD07/LD08

25.MA series cam clutch:MA20/MA30

26.MI series cam clutch :MI300/MI400/MI500/MI600/MI700/MI750/MI800/MI900/MI1000/MI1100/MI1200/MI1300

27.MZEUseries one way cam clutch :MZEU12K/MZEU15K/MZEU20K/MZEU25K/MZEU30K/MZEU35K/MZEU40K/MZEU45K/MZEU50K/MZEU55K/MZEU60K/MZEU70K/MZEU80K/MZEU90/MZEU100/MZEU130/MZEU150

28.BR series cam clutch BR20/BR25/BR30/BR35/BR40/BR45/BR50/BR60/BR71/BR80/BR90/BR100/BR130/BR150/BR180/BR190/BR220/BR240/

29.BSEU cam clutch BSEU40-20/BSEU40-25/BSEU40-30/BSEU40-35/BSEU40-40/BSEU70-45/BSEU70-50/BSRU70-55/BSEU70-60/BSEU70-65/BSEU70-70/BSEU90-75/BSEU90-80/BSEU90-85/BSEU90-90

30.BST cam clutch BST30/BST50/BST65/BST75/BST85/BST95/BST110/BST135/BST160/BST200/BST220/BST250/BST270/BST300/BST335/BST350/BST425/BST450


31.HYC series
HYC8C/HYC12C/HYC15C/HYC17C/HYC20C/HYC25C/HYC30C/HYC35C/HYC40C/HYC45C/HYC50C/HYC60C/HYC70C/HYC80C/HYC90C


32. CLD series one way bearings CLD04-09-06/CLD04-10-16/CLD04-13-3.1/CLD06-12-06/CLD06-16-3.5/CLD08-16-5.5/CLD08-16-09/

34.AV series backstop one way clutch
STIEBER AV20,STIEBER AV25,STIEBER AV30,STIEBER AV35,STIEBER AV40, STIEBER AV45,STIEBER AV50,STIEBER AV55,STIEBER AV60,STIEBER AV70,
STIEBER AV80,STIEBER AV90,STIEBER AV100,STIEBER AV110,STIEBER AV120

35.RSCI series one way clutch
RSCI20/STIEBER RSCI25/STIEBER RSCI30/STIEBER RSCI35/STIEBER RSCI40/ RSCI45/STIEBER RSCI50/STIEBER RSCI60/STIEBER RSCI70/STIEBER RSCI80/ STIEBER RSCI80M/STIEBER RSCI90/STIEBER RSCI90M/STIEBER RSCI100/STIEBER RSCI100M/ STIEBER RSCI130/STIEBER RSCI180/STIEBER RSCI180M/STIEBER RSCI180II/ STIEBER RSCI180II-M/STIEBER RSCI220/STIEBER RSCI220M/STIEBER RSCI220II/ STIEBER RSCI220II-M/STIEBER RSCI240/STIEBER RSCI240M/STIEBER RSCI240II/ STIEBER RSCI240II-M/STIEBER RSCI260/STIEBER RSCI260M/STIEBER RSCI260II/ STIEBER RSCI260II-M/STIEBER RSCI300/STIEBER RSCI300M/STIEBER RSCI300II

36.RSBI series
RSBI60/RSBI70/RSBI80/RSBI90/RSBI100/RSBI130/RSBI150/RSBI180/RSBI190/RSBI220/RSBI240STIEBER/RSBI100 /RIZ100G4 /STIEBER RSBI130 /RIZ130G4 /STIEBER RSBI150 /STIEBER RSBI100F8 RIZ30G7 /STIEBER RSBI130F8/ RIZ35G7 STIEBER/ RSBI150 F8 RIZ40G7

Needle roller bearings:
1. K series radial needle roller and cage assembiles,
NK series, Non-inner ring needle bearing, light series
NKS, Non-inner ring needle roller bearings, heavy series
RNA49, Non-inner needle roller bearing, sizes 49 series
RNA69, Non-inner needle roller bearings, size 69 series
RNA48, Non-inner needle roller bearings, size 48 series
NKI, with inner ring needle bearings, light series
AXK thrust ball bearing with flat seat.


2. Supporting roller and curve roller bearings:
NUTRseries, NUKRseries, KR series, PWKR series, NATR series, RSTOseries, STOseries, NATV series, CF series.

3. Combined radial bearings:
NKIA series, NKIB series, NX series, NKX series, NKXR series, ZARN series, ZARF series, RAXF series







Transport ways:

FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series 9

Easy communication  ways:



FSO500-28(Sprag coupling Freewheel) One Way Overrunning Clutch FSO/HPI series 10





FAQ

A:Will you send me free sample?

B: It is highly encouraged to ask for the samples for quality check.



A:Do you like to serve the client only with small orders?

B:We enjoy to grow up together with all our clients whatever big or small.And WIN-WIN is our objective.



A:Could you accept OEM and customize?
B:YES, we can customize for you according to sample or drawing, but, pls provide us technical data, such as dimension and mark.


A:Is it your company is factory or Trade Company?
B:We have our own factory; our type is factory + trade.


A:How to maintain my bearings?
B:a. Soak your bearings in mineral spririts or paint thinner to remove any grease or particulates;
b. Blowbearing out with compressed air;
c.place a light drop of oil on the bearing;
d.If the bearings feel rough repeat, give the bearing a spin.


A:Could you supply door to door service?
B:Yes, by air and by express (DHL, FEDEX, TNT, ARAMEX,EMS, SF)

Our Advantages

Contact Details
Changzhou Lisongtai Industrial Motion Technology Co.,LtD

Contact Person: Ms. Sun

Tel: +8615895075912

Fax: 86-519-68254183

Send your inquiry directly to us (0 / 3000)
