Home Productscam clutch

TSS、NSS、AS series sprag type one way backstop cam clutch apply in package machine

Certification
Good quality Overrunning clutch for sales
I'm Online Chat Now

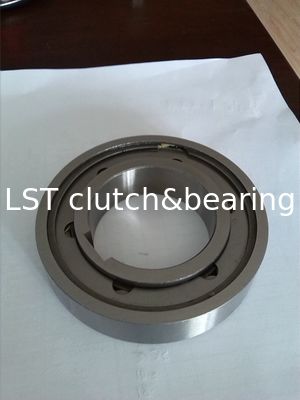

TSS、NSS、AS series sprag type one way backstop cam clutch apply in package machine

China TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine supplier
TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine supplier TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine supplier TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine supplier TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine supplier TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine supplier TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine supplier TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine supplier TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine supplier TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine supplier TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine supplier

Large Image :  TSS、NSS、AS series sprag type one way backstop cam clutch apply in package machine

Product Details:

Place of Origin: Jiangsu,China
Brand Name: R&B
Certification: SGS
Model Number: PB6

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD15.00-50.00/pcs
Packaging Details: Industrial packing and commercial packing
Supply Ability: 10000pcs/per month
Contact Now
Detailed Product Description
Material: Gcr15 Model: AS20
Application: ,textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks ID: 20mm
OD: 47mm Height: 14mm
Torqure Capacity: 41N.M Weight: 0.115kg/pcs

Product Description

as (NSS TSS) Series One Way Clutch for Reducers

as (NSS TSS) Series One Way Clutch for Reducers

TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine


Introduction of AS/NSS/TSS roller type one way clutch bearings
Type NSS/TSS is a roller type freewheel non bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outside dimensions are the same as series 62...Ball bearings.
A typical arrangement is to install this type alongside a series 62 bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft (except 6 mm bore).
The outer race has a positive r6 tolerance to give a press fit in a H7 housing. The outer housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2.


Parameter of AS/NSS/TSS roller type one way clutch bearings

as (NSS TSS) Series One Way Clutch for Reducers
Type Size   Overrunning speeds   Weight Drag torque
AS
(NSS TSS)
dH7 TKN1) nimax2) namax3) Dr6 D5 L s e f   TR
[mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
6 2.1 5000 7500 19 15.8 6 0.3 0.6 0.3 0.01 0.18
8 3.8 4300 6500 24 20 8 1.3 0.6 0.6 0.02 0.24
10 6.8 3500 5200 30 25.9 9 1.3 0.6 0.6 0.03 0.36
12 13 3200 4800 32 28 10 1.3 0.6 0.6 0.04 0.48
15 14 2800 4300 35 31 11 1.4 0.6 0.6 0.05 0.7
20 40 2200 3300 487 40 14 2.4 0.8 0.8 0.12 1.4
25 56 1900 2900 52 45.9 15 2.4 0.8 0.8 0.14 2.4
30 90 1600 2400 62 55 16 2.4 0.8 1 0.22 7.8
35 143 1300 2000 72 64 17 2.5 0.8 1 0.31 9
40 185 1200 1800 80 72 18 2.5 0.8 1 0.39 10
45 218 1000 1600 85 77 19 2.5 1.2 1 0.44 11
50 230 950 1500 90 82 20 2.5 1.2 1 0.49 13
55 308 800 1300 100 90 21 2.5 1.2 1 0.66 14
60 508 700 1100 110 100 22 2.5 1.2 1.5 0.81 26
80 1063 600 900 140 128 26 2.5 1.2 1.5 1.41 58


Mounting Example
as (NSS TSS) Series One Way Clutch for Reducers





MZ MI MG Sprag Freewheels One Way Backstop Clutch Cam Clutch Bearings



Company Information



Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



Workshop

TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine

Manufacture Processing

TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine

Testing equipment



TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine



Main products



1. One Way Bearing

TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings

TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine



Applications:



Backstop

A Backstop application is where rotation

is allowed in one direction and stopped in

the opposite.

Application examples:

· Conveyor equipment

· Mixers

· High voltage switches

· Furniture industry

· Turnstiles and revolving doors

· Geared motors

· Winches

· Elevators

· Cranes

· Strap/belt tighteners

· Bucket conveyors

· Belt reversing locks

· Fans

· Automatic doors (subway)

· Fire damper flaps

· Aviation technology

· Roller plants

· Summer skiing



Indexing clutch

A repeated drive then idle motion will

be transferred to the driven side, step by

step, as rotary motion in one direction (the

clamping direction).



Application examples:

·Paper processing (advance)

· Seeding machines

· Staplers (staples)

· Conveyor belts (drive)

· Ratchets

· Ratchet wrenches

· Roller advance

· Installation tools

· Automation technology





Overrunning clutch

If the speed of the driven side exceeds the

speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

Application examples:

·Copier machines

· Printing machines

· Conveyor equipment

· Transport equipment (speed matching)

· Starters for combustion engines

· Ergometers

· E-bikes

· Bicycle hubs

· Starters

· Emergency power aggregates

· Generators

· Hybrid applications (E-mobility)

· Palletizing and storage systems

· Model helicopters

· Hand operated sirens

· Roller coasters

· Washing systems

· Continuous ovens

· Compressors

· Compensating gearboxes

· Gas turbine drives

· Pump drives

· Belt drives

· Wheelchairs

TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine





Our advanges:

TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine

Our package:

TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine

R&B Certifications:

TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine

R&B MODELS:

1. One way clutch MG Series MG300/MG400/MG500/MG600/MG700/MG750/MG800/MG900/MG100/MG1100/MG1200/MG13

2. One way clutch MZ Series MZ15/MZ17/MZ20/MZ30-22/MZ30-25/MZ30/MZ35/MZ45-40/MZ45-40/MZ60-50/MZ60-55/MZ60/MZ70-65/MZ70

3. B200 series cam clutch
B203/B204/B205/B206/B207/B208/B209/B210/B211/B212/B213/B214

4. BB series one way bearings
BB15/BB17/BB20/BB25/BB30/BB35/BB40/BB15-1K-K/BB17-1K-K/BB20-1K-K/BB25-1K-K /BB30-1K-K/BB35-1K-K/BB40-1K-K/BB15-2K-K/BB17-2K-K/BB20-2K-K/BB25-2K-K /BB30-2K-K/BB35-2K-K/BB40-2K-K/


5. CSK series one way bearings
CSK8/CSK12/CSK15/CSK15-1K/CSK15-2K/CSK17/CSK17P/CSK17PP/CSK20/CSK20P/CSK20PP/CSK25/CSK25P/CSK25PP/CSK30/CSK30P/CSK30PP/CSK35/CSK35P/CSK35PP/CSK40/CSK40-1K/CSK40-2K/CSK8-RS/CSK35-2RS/CSK12-2RS/SK40-2RS/CSK15-2RS/CSK20P-2RS/CSK17-2RS /CSK25P-2RS CSK20-2RS/CSK30P-2RS CSK25-2RS /CSK30PP-2RS CSK30-2RS


6. GFK series one way clutch bearings
GFK20/GFK25 /GFK30 /GFK35 /GFK40/GFK45 / GFK50

7. DC series sprag freewheel cage one way clutch
DC2222G /DC2776/ DC2222G /DC3175 (3C) DC2776 /DC3175A DC3175 (3C) /DC3034/ DC3175A
DC3809A/ DC3034 /DC3809A(3C) /DC3809A /DC4127 /DC3809A(3C) /DC4127
DC5476A/ DC4972 (4C) /DC5476A (4C) /DC5476A/ DC5476B/ DC5476A

8. BWC BW. X.BWX series cam clutch
BW-13161/BW-13167/BW-13167MZ/BW-13214/BW-13214/BW-13231/BW-13243/BW-13244/BW-13255/BWC-13168/BWC-13219A/BWC-13229/BWX/BWC/X/RC series freewheel cage overrunning clutch
BWX134939/BWX13219/BWX132640/BWC13230/BWC13244/BWX132909/BWX133339/BWC13167/BWC13239/BWC13168/BWX13261/BWX133403 X133400B /X133400/ X133401 X133402 /X133403 X134398 /X134954/ X135005/ X135006/ X135036/ X135041/ X135052 /X135067 RC061008 /RC081208 RC101410/ RC121610

9. RSBW series one way clutches
RSBW25/ RSBW30/RSBW35/ RSBW40/RSBW45/RSBW50/RSBW55/RSBW60
RSBW65/RSBW70/RSBW75/RSBW80/RSBW85/RSBW90


10. PB series one way clutches
PB3/PB5/PB6/PB8/PB10/PB12/PB14

11. TSS Freewheels sprag one way clutch
TSS8/TSS10/TSS12/TSS15/TSS20/TSS25/TSS30/TSS35/TSS40/TSS45/TSS50/TSS60


12. TFS series cam clutches
TFS12/TFS15/TFS17/TFS20/TFS25/TFS30/TFS35/TFS40/TFS45/TFS50/TFS60/TFS70/TFS8/TFS90

13. AS(NSS or TSS)series one way clutch
TSS8 AS8 NSS8/ TSS10 AS10 NSS10/ TSS12 AS12 NSS12/TSS15 AS15 NSS15/
TSS20 AS20 NSS20/ TSS25 AS25 NSS25/ TSS30 AS30 NSS30/ TSS35 AS35


14. ASNU(NFS or TFS) series one way clutch
TFS12 ASNU12 NFS12/ TFS15 ASNU15 NFS15/ TFS17 ASNU17 NFS17/ TFS20 ASNU20NFS20/TFS25 ASNU25 NFS25/TFS30 ASNU30 NFS30/TFS35 ASNU35

15. NF roller type one way clutch
STIEBER NF8 GFRN55/STIEBER NF12 GFRN60 /STIEBER NF15 GFRN70/
STIEBER NF20 GFRN80/STIEBER NF25 GFRN90/STIEBER NF30 GFRN100


16. AE roller type one way clutch
STIEBER AE8/STIEBER AE12/ STIEBER AE15/ STIEBER AE20/ STIEBER AE25/ STIEBER AE30/ STIEBER AE35/ STIEBER AE40/ STIEBER AE45/ STIEBER AE50/STIEBER AE55/ STIEBER AE60/

17. AA roller type one way clutch
STIEBER AA20/ STIEBER AA25/ STIEBER AA30/STIEBER AA35 /STIEBER AA40/STIEBER AA45/ STIEBER AA50/STIEBER AA55/STIEBER AA60/STIEBER AA70/ STIEBER AA80/STIEBER AA90/
STIEBER AA100/ STIEBER AA120/ STIEBER AA150/

18.GFRGFRN series miler overrunning clutch
GFR12/GFR15/GFR20/ GFR25/GFR30/ GFR35/GFR40/GFR45/GFR50/GFR55/GFR60/GFR70


19.FE series freewheel one way clutch

FE448 /FE443 /FE422/FE423/FE428/FE427/FE432/FE433/FE453 /FE437

20. One way clucth CKA Series bearngs: CK-A1542/CK-A1747/CK-A2052/CK-A2562/CK-A3072/CK-A3580/CK-A4090/CK-A45100/CK-A50110/CK-A60130

21. Drawn cup needle Roller one way HF0406/HF0612/HF0812/HF1012/HF1216HF1416/HF1616/HF1816/HF2016/HF25


22.KI series:KI196


23.HYCS cam clutch :HYC8S/HYC10S/HYC12S/HYC15S/HYC20S/HYC25S/HYC30S/HYC35S/HYC40S/HYC45S/HYC50S/HYC60S

24.LD series one way clutch:LD04/LD05/LD06/LD07/LD08

25.MA series cam clutch:MA20/MA30

26.MI series cam clutch :MI300/MI400/MI500/MI600/MI700/MI750/MI800/MI900/MI1000/MI1100/MI1200/MI1300

27.MZEUseries one way cam clutch :MZEU12K/MZEU15K/MZEU20K/MZEU25K/MZEU30K/MZEU35K/MZEU40K/MZEU45K/MZEU50K/MZEU55K/MZEU60K/MZEU70K/MZEU80K/MZEU90/MZEU100/MZEU130/MZEU150

28.BR series cam clutch BR20/BR25/BR30/BR35/BR40/BR45/BR50/BR60/BR71/BR80/BR90/BR100/BR130/BR150/BR180/BR190/BR220/BR240/

29.BSEU cam clutch BSEU40-20/BSEU40-25/BSEU40-30/BSEU40-35/BSEU40-40/BSEU70-45/BSEU70-50/BSRU70-55/BSEU70-60/BSEU70-65/BSEU70-70/BSEU90-75/BSEU90-80/BSEU90-85/BSEU90-90

30.BST cam clutch BST30/BST50/BST65/BST75/BST85/BST95/BST110/BST135/BST160/BST200/BST220/BST250/BST270/BST300/BST335/BST350/BST425/BST450


31.HYC series
HYC8C/HYC12C/HYC15C/HYC17C/HYC20C/HYC25C/HYC30C/HYC35C/HYC40C/HYC45C/HYC50C/HYC60C/HYC70C/HYC80C/HYC90C


32. CLD series one way bearings CLD04-09-06/CLD04-10-16/CLD04-13-3.1/CLD06-12-06/CLD06-16-3.5/CLD08-16-5.5/CLD08-16-09/

34.AV series backstop one way clutch
STIEBER AV20,STIEBER AV25,STIEBER AV30,STIEBER AV35,STIEBER AV40, STIEBER AV45,STIEBER AV50,STIEBER AV55,STIEBER AV60,STIEBER AV70,
STIEBER AV80,STIEBER AV90,STIEBER AV100,STIEBER AV110,STIEBER AV120

35.RSCI series one way clutch
RSCI20/STIEBER RSCI25/STIEBER RSCI30/STIEBER RSCI35/STIEBER RSCI40/ RSCI45/STIEBER RSCI50/STIEBER RSCI60/STIEBER RSCI70/STIEBER RSCI80/ STIEBER RSCI80M/STIEBER RSCI90/STIEBER RSCI90M/STIEBER RSCI100/STIEBER RSCI100M/ STIEBER RSCI130/STIEBER RSCI180/STIEBER RSCI180M/STIEBER RSCI180II/ STIEBER RSCI180II-M/STIEBER RSCI220/STIEBER RSCI220M/STIEBER RSCI220II/ STIEBER RSCI220II-M/STIEBER RSCI240/STIEBER RSCI240M/STIEBER RSCI240II/ STIEBER RSCI240II-M/STIEBER RSCI260/STIEBER RSCI260M/STIEBER RSCI260II/ STIEBER RSCI260II-M/STIEBER RSCI300/STIEBER RSCI300M/STIEBER RSCI300II

36.RSBI series
RSBI60/RSBI70/RSBI80/RSBI90/RSBI100/RSBI130/RSBI150/RSBI180/RSBI190/RSBI220/RSBI240STIEBER/RSBI100 /RIZ100G4 /STIEBER RSBI130 /RIZ130G4 /STIEBER RSBI150 /STIEBER RSBI100F8 RIZ30G7 /STIEBER RSBI130F8/ RIZ35G7 STIEBER/ RSBI150 F8 RIZ40G7

Needle roller bearings:
1. K series radial needle roller and cage assembiles,
NK series, Non-inner ring needle bearing, light series
NKS, Non-inner ring needle roller bearings, heavy series
RNA49, Non-inner needle roller bearing, sizes 49 series
RNA69, Non-inner needle roller bearings, size 69 series
RNA48, Non-inner needle roller bearings, size 48 series
NKI, with inner ring needle bearings, light series
AXK thrust ball bearing with flat seat.


2. Supporting roller and curve roller bearings:
NUTRseries, NUKRseries, KR series, PWKR series, NATR series, RSTOseries, STOseries, NATV series, CF series.

3. Combined radial bearings:
NKIA series, NKIB series, NX series, NKX series, NKXR series, ZARN series, ZARF series, RAXF series







Transport ways:

TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine

Easy communication  ways:



TSS、NSS、AS series sprag  type one way backstop cam clutch apply in package machine





FAQ

A:Will you send me free sample?

B: It is highly encouraged to ask for the samples for quality check.



A:Do you like to serve the client only with small orders?

B:We enjoy to grow up together with all our clients whatever big or small.And WIN-WIN is our objective.



A:Could you accept OEM and customize?
B:YES, we can customize for you according to sample or drawing, but, pls provide us technical data, such as dimension and mark.


A:Is it your company is factory or Trade Company?
B:We have our own factory; our type is factory + trade.


A:How to maintain my bearings?
B:a. Soak your bearings in mineral spririts or paint thinner to remove any grease or particulates;
b. Blowbearing out with compressed air;
c.place a light drop of oil on the bearing;
d.If the bearings feel rough repeat, give the bearing a spin.


A:Could you supply door to door service?
B:Yes, by air and by express (DHL, FEDEX, TNT, ARAMEX,EMS, SF)
