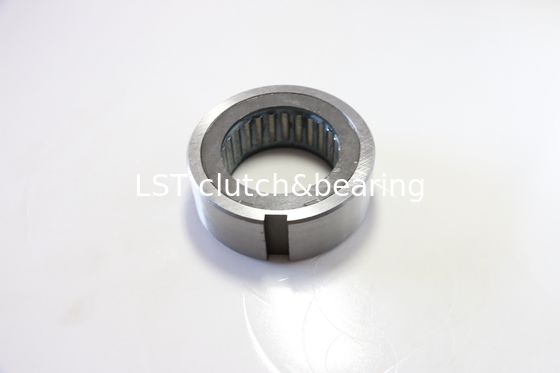

high quality R&B brand B206 TSUBAKI design sprag type one way clutch apply in harvester

high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester
high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester

Large Image :  high quality R&B brand B206 TSUBAKI design sprag type one way clutch apply in harvester

Product Details:
Place of Origin: Jiangsu,China
Brand Name: R&B
Certification: SGS
Model Number: B206
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD5.00-10.00/pcs
Packaging Details: Industrial packing and commercial packing
Supply Ability: 100000pcs/per month

high quality R&B brand B206 TSUBAKI design sprag type one way clutch apply in harvester

Description
Material: Gcr15 Model: B206
Application: ,textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks ID: 32.7662mm
OD: 62mm Height: 28mm
Torqure Capacity: 235N.M Weight: 0.68kg/pcs

Industrial Bearing CB206,S206,B206 Sprag Cam Clutch One Way Clutch

Product Description

GFR 130 GFRN130 Roller Clutch Bearing Roller One Way Bearing



high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester 1



Details
Item CB-206,B206,S206
Material GCr15
Inner Diameter 32.766 mm
Key Way 7X4mm
Outer Diameter 62 mm
Weight 0.7 kg
Drag Torque 0.2 Nm
Application Elevator, Industrial Machines



Introduction

Type B206,CB-200 is a sprag type free wheel not self-centring. It is therefore necessary to place one or two bearings next to the free wheel so that the outer race can rotate centrally to the inner race.

The bearings to use next to the free wheel are written in the following table.

A key will transmit the torque between outer ring and the shaft. the tolerance of the housing bore must be h7.



The sprags work on the shaft made by the user which must be realized following these indications:

1) carburized depth after grinding 0,6 mm

2) surface hardness of hrc58-62

3) core hardness of hrc35-45

4) surface roughness must not exceed 6,3 μm

5) maximum shaft taper 0,01 mm per 50 mm length

CB-200 series can be lubricated with grease or oil but they must not have EP additives



Different Sizes For Your Reference

Industrial Bearing CB206 B206 Sprag Cam Clutch One Way

Type Drag torque(N.m) Overrunning Speed (r/min) Shaft size
(mm)
Outer race h7(mm) Thickness Key way
inner race outer race (mm) (mm)
CB203 43.2 2650 550 16.51 40 25 4.0×2.5
CB204 64.7 2650 550 18.796 47 25 5.0×3.0
CB205 108 2000 440 23.622 52 25 5.0×3.0
CB206 258 2000 385 32.766 62 28 7.0×4.0
CB207 409 2000 330 42.088 72 28 7.0×4.0
CB208 590 2000 220 46.761 80 32 10.0×4.5
CB209 590 2000 220 46.761 85 32 10.0×4.5
CB210 835 1350 220 56.109 90 32 10.0×4.5

Specification:

Type
Drag torque(N.m) Overrunning Speed (r/min) Shaft size Outer race h7(mm) Thickness Key way
inner race outer race (mm) (mm) (mm)
B203 39.2 2400 500 16.51 40 25 4.0×2.5
B204 58.8 2400 500 18.796 47 25 5.0×3.0
B205 98 1800 400 23.622 52 25 5.0×3.0
B206 235 1800 350 32.766 62 28 7.0×4.0
B207 372 1800 300 42.088 72 28 7.0×4.0
B208 549 1800 200 46.761 80 32 10.0×4.5
B209 549 1200 200 46.761 85 32 10.0×4.5
B210 784 1200 200 56.109 90 32 10.0×4.5
B211 784 1200 200 56.109 100 32 10.0×4.5
B212 1230 1200 180 70.029 110 42 10.0×4.5
B213 1230 1200 180 70.029 120 42 10.0×4.5
B214 1390 1000 180 79.356 125 42 12.0×4.5

Installation and Usage
1.B200 Series Cam Clutch is shaft mounted, so the shaft on which the clutch is mounted must be hardened to Rc 56-60 and 1.5 mm case depth after grinding. Grind to 1.5S (16micro-inch) finish. The taper of this shaft should not exceed 0.01 mm per 50mm.
2. For installation of the clutch mount the clutch with bearings at both sides or on one side in
order to obtain concentricity between the shaft and the clutch outer race and to take up radial
or thrust loads which may work on the outer race or the shaft. See the installation example.
3. The clutch should be mounted on the shaft by rotating it in the direction marked by the arrow
shown on the clutch plate. Do not apply shock to the clutch by hammering.
4. The clutches have the same outside diameters as the bearings shown in the table above. Bore tolerance of the housing in which the clutch is assembled should be within the range shown in the table below.
5. For indexing, oil lubrication is recommended.
6. Concentricity of the housing bore and shaft should be within 0.05 mm.
7. Key profile should be in accordance with JIS B1301-1959

Model
Tolerance of housing bore(mm)
B203,B204 +0 to + 0.025
B205,B206,B207,B208 +0 to + 0.030
B210,B211,B212,B213 +0 to + 0.035
B214 +0 to + 0.040

Typical applications of one way bearing B206
Air cleaning plants; Agricultural machines; Buchet elevators; Compressors; Conveyors; Cranes and hoists; Dry cleaning machinery; Duplicator equipment; Fish net machines; Heat-treatment furnaces; Induced draft fans; Multi-states conveyors; Packaging machinery; Printing machinery; Pumps; Punch presses and feeders; Power plants; Refinery equipment; Speed reducers; Standby power units; Textile looms; Two-speed grinders; Two-speed shiftovers; Washing machines; Wire winding machinery.



Detailed Image

Sprag Clutch AS (NSS TSS) One Way Clutch



high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester 4





high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester 5



Company Information



Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



Workshop

high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester 6

Manufacture Processing

high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester 7

Testing equipment



high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester 8



Main products



1. One Way Bearing

high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester 9

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings

high quality R&B brand B206 TSUBAKI design sprag type one way  clutch apply in harvester 10



Applications:



Backstop

A Backstop application is where rotation

is allowed in one direction and stopped in

the opposite.

Application examples:

· Conveyor equipment

· Mixers

· High voltage switches

· Furniture industry

· Turnstiles and revolving doors

· Geared motors

· Winches

· Elevators

· Cranes

· Strap/belt tighteners

· Bucket conveyors

· Belt reversing locks

· Fans

· Automatic doors (subway)

· Fire damper flaps

· Aviation technology

· Roller plants

· Summer skiing



Indexing clutch

A repeated drive then idle motion will

be transferred to the driven side, step by

step, as rotary motion in one direction (the

clamping direction).



Application examples:

·Paper processing (advance)

· Seeding machines

· Staplers (staples)

· Conveyor belts (drive)

· Ratchets

· Ratchet wrenches

· Roller advance

· Installation tools

· Automation technology





Overrunning clutch

If the speed of the driven side exceeds the

speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

Application examples:

·Copier machines

· Printing machines

· Conveyor equipment

· Transport equipment (speed matching)

· Starters for combustion engines

· Ergometers

· E-bikes

· Bicycle hubs

· Starters

· Emergency power aggregates

· Generators

· Hybrid applications (E-mobility)

· Palletizing and storage systems

· Model helicopters

· Hand operated sirens

· Roller coasters

· Washing systems

· Continuous ovens

· Compressors

· Compensating gearboxes

· Gas turbine drives

· Pump drives

· Belt drives

· Wheelchairs
