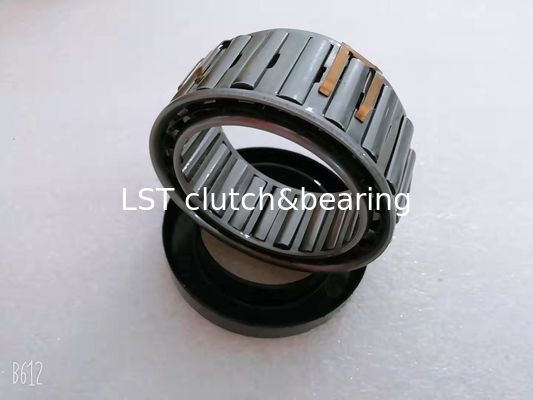

China made DC4445C(3C) one way sprag freewheel clutch to U.S.A

China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A
China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A

Large Image :  China made DC4445C(3C) one way sprag freewheel clutch to U.S.A

Product Details:
Place of Origin: Jiangsu,China
Brand Name: R&B
Certification: SGS
Model Number: DC4445C(3C)
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD8.00-10.00/pcs
Packaging Details: Industrial packing and commercial packing
Supply Ability: 100000pcs/per month

China made DC4445C(3C) one way sprag freewheel clutch to U.S.A

Description
Material: Gcr15 Model: DC4445C(3C)
Application: ,textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks ID: 44.450mm
OD: 61.110mm Height: 25.4mm
Torqure Capacity: 360N.M Weight: 0.10kg/pcs
Number Of Sprag: 20pcs Clips: 3pcs

China Bearing Factory Sprag Clutch DC One Way Bearing

Product Description

China Bearing Factory Sprag Clutch DC One Way Bearing



Data Sheet

Item DC
Outer Diameter 38.885-142.88mm
Bore Size 22.225-123.881 mm
Norminal Torque 63-4785 Nm
Weight 0.03-0.4 kg
Sprags Quantity 12-44
Overrunning Speed(outer race) 750-4300 min-1
Overrunning Speed (inner race) 1500-8600 min-1
Precision Rate P6
Port Shanghai;Ningbo
Delivery Time 7-10 days



Feature

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.

The DC type version-N accepts all types of lubricants currently used in the power transmis-sion equipement.



-Tolearance

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly as shown on following data sheet.



-Hardness
Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0, 6 mm minimum.
Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA.

Maximum taper between races: 0, 007 mm for 25 mm width.



Different Sizes for Your Reference

China Bearing Factory Sprag Clutch DC One Way Bearing

Type Drag torque Size(mm) Number of clips
Tkn(NM) a c sprag space e d b
DC2222G 50 22.225 38.885 8.33 10 50 17
DC2776 95 27.762 44.422 8.33 13.5 58 21
DC3034 99 30.34 47 8.33 13.5 62 23
DC3175(3C) 127 31.75 48.41 8.33 13.5 63 24 3
DC3809A 220 38.092 54.752 8.33 16 71 29
DC4127(3C) 179 41.275 57.935 8.33 13.5 75 32 3
DC4445A 290 44.45 61.11 8.33 16 79 34
DC4972(4C) 245 49.721 66.381 8.33 13.5 86 38 4
DC5476A 420 54.765 71.425 8.33 16 92 42
DC5476A(4C) 420 54.765 71.425 8.33 16 92 42 4
DC5476B(4C) 615 54.765 71.425 8.33 21 92 42 4
DC5476C(4C) 792 54.765 71.425 8.33 25.4 92 42 4
DC5776A 483 57.76 74.42 8.33 16 98 44
DC6334B 645 63.34 80 8.33 21 104 50
DC7221(5C) 540 72.217 88.877 8.33 13.5 115 56 5
DC7221B 1023 72.217 88.877 8.33 21 115 56
DC7221B(5C) 1023 72.217 88.877 8.33 21 115 56 5
DC7969C(5C) 1630 79.698 96.358 8.33 25.4 124 61 5
DC8334C 1645 83.34 100 8.33 25.4 132 65
DC8729A 1000 87.29 103.96 8.33 16 134 67
DC10323A(3C) * 1290 103.231 ** 119.891 8.33 16 155 80 3
DC12334C * 3840 123.34 ** 140 8.33 25.4 184 96
DC12388C(11C) 3900 123.881 142.88 9.5 25.4 196 96 11



Cage Freewheels BWX
for assembly with inner and outer ring
with sprags

Features
Cage Freewheels BWX are sprag freewheels to be installed between customer-supplied inner
and outer rings. The freewheels BWX are used as:
Backstops
Overrunning Clutches
Indexing Freewheels
Nominal torques up to 4 900 Nm.



Cage Freewheel Bwx133339 One Way Sprag Clutch with High Quality

Freewheel Size Type Nominal t orque J D B K Sprags Quantity Drag strips Brake clips Design as ill. Weight
MN +0,008 ±0,013 mm mm mm Quantity Quantity kg
Nm -0,005 mm
BWX133590A Disengaging 63 22,225 38,887 10,0 44,0 12     109-2 0,03
BWX13143A Engaging 120 27,767 44,425 13,5 51,0 14     109-2 0,06
BWX133392 Disengaging 280 38,092 54,750 16,0 71,0 18     109-3 0,09
BWX1310145 Disengaging 180 41,275 57,937 13,5 74,2 14   3 109-2 0,07
BWX132909A Disengaging 360 44,450 61,112 16,0 78,5 20 2 3 109-2 0,10
BWX133339 Disengaging 310 49,721 66,383 13,5 85,0 22 2 4 109-2 0,09
BWX1310003 Disengaging 310 49,721 66,383 13,5 85,0 22   4 109-2 0,09
BWX137222 Engaging 570 49,721 66,383 19,0 85,0 22     109-2 0,12
BWX1310445 Disengaging 400 54,765 71,427 13,5 91,7 24     109-2 0,09
BWX1310172 Engaging 540 54,765 71,427 16,0 91,7 24     109-2 0,12
BWX1310226 Disengaging 520 54,765 71,427 16,0 91,7 24 2 4 109-2 0,12
BWX136709 Engaging 770 54,765 71,427 21,0 91,7 24 3 10 109-2 0,16
BWX1310147 Disengaging 1 000 54,765 71,427 25,4 91,7 24 3 8 109-2 0,20
BWX136324 Engaging 600 57,760 74,427 19,0 95,0 26     109-3 0,14
BWX1310080 Disengaging 670 72,217 88,882 13,5 115,0 30   4 109-2 0,12
BWX13168 Engaging 1 300 72,217 88,882 21,0 115,0 30     109-3 0,20
BWX134012 Engaging 1 300 72,217 88,882 21,0 115,0 30 4 10 109-3 0,20
BWX137322 Disengaging 2 000 79,6982 96,363 25,4 124,0 34 5 12 109-2 0,28
BWX138316 Disengaging 2 960 83,5972 102,596 25,4 131,6 34 5 12 109-2 0,30
BWX13261A1 Disengaging 1 600 103,2312 119,893 16,0 154,0 40 6 10 109-3 0,19
BWX13236 Disengaging 1 700 117,3912 136,391 16,0 175,3 30 5 6 109-3 0,25
BWX133403B Engaging 4 900 123,8812 142,880 25,4 188,0 44   11 109-2 0,46


Disengaging
When the outer ring is rotating the centrifugal force causes the sprags to lift off from the inner
race. This reduces wear during freewheeling operation.
Engaging
When the outer ring is rotating the centrifugal force presses the sprags against the inner ring.
This enhances the ability of the sprags to engage immediately when torque is applied.
Drag strips
To reduce wear during freewheeling operation between sprags and the inner race, drag strips
made from wear-resistant beryllium copper alloy are attached to the inner cage. This results in increased friction between inner cage and inner race. This counteracts individual sprag activation during freewheeling operation, thereby greatly reducing sprag pressure on the inner race.
Brake clips
Some freewheel sizes are available with brake clips fitted on the outer cage to prevent further
automatic rotation of the Cage Freewheel during rapid acceleration and deceleration of




Type

d


Diameter

D
Number of sprags Direction Designation Auxitiary Weight
(g)
X-135006 43.6 89.1 24 D C 1 CL.ST 60
BW -13231     20 D C 1 T.ST 95
BW-13214 43.8 89.3 14 D c 1 T.ST 105
BW-13167     22 E c 1   120
BW-13209     26 D c 1 T.ST 105
BWC-13239B 46.2 93.1 26 D cc 1 CL.ST 125
BW-13238     26 E c 1   175
X-133401 47.6 95.3 26 E c 1   220
BW -13243     24 D c 1 CL.ST 120
BWC-13168
BWC-13229
57.7 111 30
30
E
E
cc
cc
1 EB 210
190
BW -13255     30 D c 1 CL.ST 255
X-133614C 66.7 128 34 E c 1 CL. 350
X-133402 68.6 131 34 E c 1   350
BWC-13251 BWC-13261 82.5 150 18
36
D
D
cc
cc
1 CL.ST
CL.ST
180
200
X-133639 82.5 153 40 E c 1 CL.ST 410
X-133403 99.1 179 44 E c 1



Detailed Image

China Bearing Factory Sprag Clutch DC One Way BearingChina Bearing Factory Sprag Clutch DC One Way BearingChina Bearing Factory Sprag Clutch DC One Way Bearing



Company Information



Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



Workshop

China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A 6

Manufacture Processing

China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A 7

Testing equipment



China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A 8



Main products



1. One Way Bearing

China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A 9

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings

China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A 10



Applications:



Backstop

A Backstop application is where rotation

is allowed in one direction and stopped in

the opposite.

Application examples:

· Conveyor equipment

· Mixers

· High voltage switches

· Furniture industry

· Turnstiles and revolving doors

· Geared motors

· Winches

· Elevators

· Cranes

· Strap/belt tighteners

· Bucket conveyors

· Belt reversing locks

· Fans

· Automatic doors (subway)

· Fire damper flaps

· Aviation technology

· Roller plants

· Summer skiing



Indexing clutch

A repeated drive then idle motion will

be transferred to the driven side, step by

step, as rotary motion in one direction (the

clamping direction).



Application examples:

·Paper processing (advance)

· Seeding machines

· Staplers (staples)

· Conveyor belts (drive)

· Ratchets

· Ratchet wrenches

· Roller advance

· Installation tools

· Automation technology





Overrunning clutch

If the speed of the driven side exceeds the

speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

Application examples:

·Copier machines

· Printing machines

· Conveyor equipment

· Transport equipment (speed matching)

· Starters for combustion engines

· Ergometers

· E-bikes

· Bicycle hubs

· Starters

· Emergency power aggregates

· Generators

· Hybrid applications (E-mobility)

· Palletizing and storage systems

· Model helicopters

· Hand operated sirens

· Roller coasters

· Washing systems

· Continuous ovens

· Compressors

· Compensating gearboxes

· Gas turbine drives

· Pump drives

· Belt drives

· Wheelchairs

China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A 11





Our advanges:

China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A 12

Our package:

China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A 13

R&B Certifications:

China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A 14

R&B MODELS:

1. One way clutch MG Series MG300/MG400/MG500/MG600/MG700/MG750/MG800/MG900/MG100/MG1100/MG1200/MG13

2. One way clutch MZ Series MZ15/MZ17/MZ20/MZ30-22/MZ30-25/MZ30/MZ35/MZ45-40/MZ45-40/MZ60-50/MZ60-55/MZ60/MZ70-65/MZ70

3. B200 series cam clutch
B203/B204/B205/B206/B207/B208/B209/B210/B211/B212/B213/B214

4. BB series one way bearings
BB15/BB17/BB20/BB25/BB30/BB35/BB40/BB15-1K-K/BB17-1K-K/BB20-1K-K/BB25-1K-K /BB30-1K-K/BB35-1K-K/BB40-1K-K/BB15-2K-K/BB17-2K-K/BB20-2K-K/BB25-2K-K /BB30-2K-K/BB35-2K-K/BB40-2K-K/


5. CSK series one way bearings
CSK8/CSK12/CSK15/CSK15-1K/CSK15-2K/CSK17/CSK17P/CSK17PP/CSK20/CSK20P/CSK20PP/CSK25/CSK25P/CSK25PP/CSK30/CSK30P/CSK30PP/CSK35/CSK35P/CSK35PP/CSK40/CSK40-1K/CSK40-2K/CSK8-RS/CSK35-2RS/CSK12-2RS/SK40-2RS/CSK15-2RS/CSK20P-2RS/CSK17-2RS /CSK25P-2RS CSK20-2RS/CSK30P-2RS CSK25-2RS /CSK30PP-2RS CSK30-2RS


6. GFK series one way clutch bearings
GFK20/GFK25 /GFK30 /GFK35 /GFK40/GFK45 / GFK50

7. DC series sprag freewheel cage one way clutch
DC2222G /DC2776/ DC2222G /DC3175 (3C) DC2776 /DC3175A DC3175 (3C) /DC3034/ DC3175A
DC3809A/ DC3034 /DC3809A(3C) /DC3809A /DC4127 /DC3809A(3C) /DC4127
DC5476A/ DC4972 (4C) /DC5476A (4C) /DC5476A/ DC5476B/ DC5476A

8. BWC BW. X.BWX series cam clutch
BW-13161/BW-13167/BW-13167MZ/BW-13214/BW-13214/BW-13231/BW-13243/BW-13244/BW-13255/BWC-13168/BWC-13219A/BWC-13229/BWX/BWC/X/RC series freewheel cage overrunning clutch
BWX134939/BWX13219/BWX132640/BWC13230/BWC13244/BWX132909/BWX133339/BWC13167/BWC13239/BWC13168/BWX13261/BWX133403 X133400B /X133400/ X133401 X133402 /X133403 X134398 /X134954/ X135005/ X135006/ X135036/ X135041/ X135052 /X135067 RC061008 /RC081208 RC101410/ RC121610

9. RSBW series one way clutches
RSBW25/ RSBW30/RSBW35/ RSBW40/RSBW45/RSBW50/RSBW55/RSBW60
RSBW65/RSBW70/RSBW75/RSBW80/RSBW85/RSBW90


10. PB series one way clutches
PB3/PB5/PB6/PB8/PB10/PB12/PB14

11. TSS Freewheels sprag one way clutch
TSS8/TSS10/TSS12/TSS15/TSS20/TSS25/TSS30/TSS35/TSS40/TSS45/TSS50/TSS60


12. TFS series cam clutches
TFS12/TFS15/TFS17/TFS20/TFS25/TFS30/TFS35/TFS40/TFS45/TFS50/TFS60/TFS70/TFS8/TFS90

13. AS(NSS or TSS)series one way clutch
TSS8 AS8 NSS8/ TSS10 AS10 NSS10/ TSS12 AS12 NSS12/TSS15 AS15 NSS15/
TSS20 AS20 NSS20/ TSS25 AS25 NSS25/ TSS30 AS30 NSS30/ TSS35 AS35


14. ASNU(NFS or TFS) series one way clutch
TFS12 ASNU12 NFS12/ TFS15 ASNU15 NFS15/ TFS17 ASNU17 NFS17/ TFS20 ASNU20NFS20/TFS25 ASNU25 NFS25/TFS30 ASNU30 NFS30/TFS35 ASNU35

15. NF roller type one way clutch
STIEBER NF8 GFRN55/STIEBER NF12 GFRN60 /STIEBER NF15 GFRN70/
STIEBER NF20 GFRN80/STIEBER NF25 GFRN90/STIEBER NF30 GFRN100


16. AE roller type one way clutch
STIEBER AE8/STIEBER AE12/ STIEBER AE15/ STIEBER AE20/ STIEBER AE25/ STIEBER AE30/ STIEBER AE35/ STIEBER AE40/ STIEBER AE45/ STIEBER AE50/STIEBER AE55/ STIEBER AE60/

17. AA roller type one way clutch
STIEBER AA20/ STIEBER AA25/ STIEBER AA30/STIEBER AA35 /STIEBER AA40/STIEBER AA45/ STIEBER AA50/STIEBER AA55/STIEBER AA60/STIEBER AA70/ STIEBER AA80/STIEBER AA90/
STIEBER AA100/ STIEBER AA120/ STIEBER AA150/

18.GFRGFRN series miler overrunning clutch
GFR12/GFR15/GFR20/ GFR25/GFR30/ GFR35/GFR40/GFR45/GFR50/GFR55/GFR60/GFR70


19.FE series freewheel one way clutch

FE448 /FE443 /FE422/FE423/FE428/FE427/FE432/FE433/FE453 /FE437

20. One way clucth CKA Series bearngs: CK-A1542/CK-A1747/CK-A2052/CK-A2562/CK-A3072/CK-A3580/CK-A4090/CK-A45100/CK-A50110/CK-A60130

21. Drawn cup needle Roller one way HF0406/HF0612/HF0812/HF1012/HF1216HF1416/HF1616/HF1816/HF2016/HF25


22.KI series:KI196


23.HYCS cam clutch :HYC8S/HYC10S/HYC12S/HYC15S/HYC20S/HYC25S/HYC30S/HYC35S/HYC40S/HYC45S/HYC50S/HYC60S

24.LD series one way clutch:LD04/LD05/LD06/LD07/LD08

25.MA series cam clutch:MA20/MA30

26.MI series cam clutch :MI300/MI400/MI500/MI600/MI700/MI750/MI800/MI900/MI1000/MI1100/MI1200/MI1300

27.MZEUseries one way cam clutch :MZEU12K/MZEU15K/MZEU20K/MZEU25K/MZEU30K/MZEU35K/MZEU40K/MZEU45K/MZEU50K/MZEU55K/MZEU60K/MZEU70K/MZEU80K/MZEU90/MZEU100/MZEU130/MZEU150

28.BR series cam clutch BR20/BR25/BR30/BR35/BR40/BR45/BR50/BR60/BR71/BR80/BR90/BR100/BR130/BR150/BR180/BR190/BR220/BR240/

29.BSEU cam clutch BSEU40-20/BSEU40-25/BSEU40-30/BSEU40-35/BSEU40-40/BSEU70-45/BSEU70-50/BSRU70-55/BSEU70-60/BSEU70-65/BSEU70-70/BSEU90-75/BSEU90-80/BSEU90-85/BSEU90-90

30.BST cam clutch BST30/BST50/BST65/BST75/BST85/BST95/BST110/BST135/BST160/BST200/BST220/BST250/BST270/BST300/BST335/BST350/BST425/BST450


31.HYC series
HYC8C/HYC12C/HYC15C/HYC17C/HYC20C/HYC25C/HYC30C/HYC35C/HYC40C/HYC45C/HYC50C/HYC60C/HYC70C/HYC80C/HYC90C


32. CLD series one way bearings CLD04-09-06/CLD04-10-16/CLD04-13-3.1/CLD06-12-06/CLD06-16-3.5/CLD08-16-5.5/CLD08-16-09/

34.AV series backstop one way clutch
STIEBER AV20,STIEBER AV25,STIEBER AV30,STIEBER AV35,STIEBER AV40, STIEBER AV45,STIEBER AV50,STIEBER AV55,STIEBER AV60,STIEBER AV70,
STIEBER AV80,STIEBER AV90,STIEBER AV100,STIEBER AV110,STIEBER AV120

35.RSCI series one way clutch
RSCI20/STIEBER RSCI25/STIEBER RSCI30/STIEBER RSCI35/STIEBER RSCI40/ RSCI45/STIEBER RSCI50/STIEBER RSCI60/STIEBER RSCI70/STIEBER RSCI80/ STIEBER RSCI80M/STIEBER RSCI90/STIEBER RSCI90M/STIEBER RSCI100/STIEBER RSCI100M/ STIEBER RSCI130/STIEBER RSCI180/STIEBER RSCI180M/STIEBER RSCI180II/ STIEBER RSCI180II-M/STIEBER RSCI220/STIEBER RSCI220M/STIEBER RSCI220II/ STIEBER RSCI220II-M/STIEBER RSCI240/STIEBER RSCI240M/STIEBER RSCI240II/ STIEBER RSCI240II-M/STIEBER RSCI260/STIEBER RSCI260M/STIEBER RSCI260II/ STIEBER RSCI260II-M/STIEBER RSCI300/STIEBER RSCI300M/STIEBER RSCI300II

36.RSBI series
RSBI60/RSBI70/RSBI80/RSBI90/RSBI100/RSBI130/RSBI150/RSBI180/RSBI190/RSBI220/RSBI240STIEBER/RSBI100 /RIZ100G4 /STIEBER RSBI130 /RIZ130G4 /STIEBER RSBI150 /STIEBER RSBI100F8 RIZ30G7 /STIEBER RSBI130F8/ RIZ35G7 STIEBER/ RSBI150 F8 RIZ40G7

Needle roller bearings:
1. K series radial needle roller and cage assembiles,
NK series, Non-inner ring needle bearing, light series
NKS, Non-inner ring needle roller bearings, heavy series
RNA49, Non-inner needle roller bearing, sizes 49 series
RNA69, Non-inner needle roller bearings, size 69 series
RNA48, Non-inner needle roller bearings, size 48 series
NKI, with inner ring needle bearings, light series
AXK thrust ball bearing with flat seat.


2. Supporting roller and curve roller bearings:
NUTRseries, NUKRseries, KR series, PWKR series, NATR series, RSTOseries, STOseries, NATV series, CF series.

3. Combined radial bearings:
NKIA series, NKIB series, NX series, NKX series, NKXR series, ZARN series, ZARF series, RAXF series







Transport ways:

China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A 15

Easy communication  ways:



China made DC4445C(3C) one  way sprag  freewheel clutch to U.S.A 16





FAQ

A:Will you send me free sample?

B: It is highly encouraged to ask for the samples for quality check.



A:Do you like to serve the client only with small orders?

B:We enjoy to grow up together with all our clients whatever big or small.And WIN-WIN is our objective.



A:Could you accept OEM and customize?
B:YES, we can customize for you according to sample or drawing, but, pls provide us technical data, such as dimension and mark.


A:Is it your company is factory or Trade Company?
B:We have our own factory; our type is factory + trade.


A:How to maintain my bearings?
B:a. Soak your bearings in mineral spririts or paint thinner to remove any grease or particulates;
b. Blowbearing out with compressed air;
c.place a light drop of oil on the bearing;
d.If the bearings feel rough repeat, give the bearing a spin.


A:Could you supply door to door service?
B:Yes, by air and by express (DHL, FEDEX, TNT, ARAMEX,EMS, SF)

Our Advantages

Contact Details
Changzhou Lisongtai Industrial Motion Technology Co.,LtD

Contact Person: Ms. Sun

Tel: +8615895075912

Fax: 86-519-68254183

Send your inquiry directly to us (0 / 3000)
