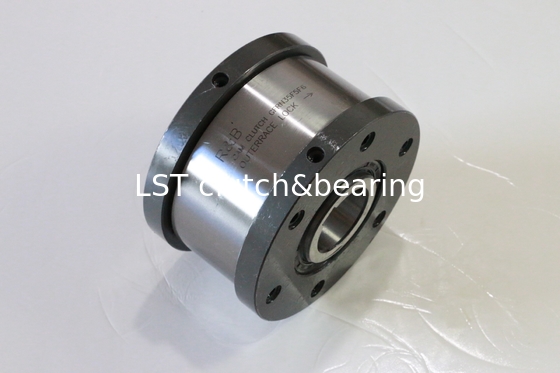

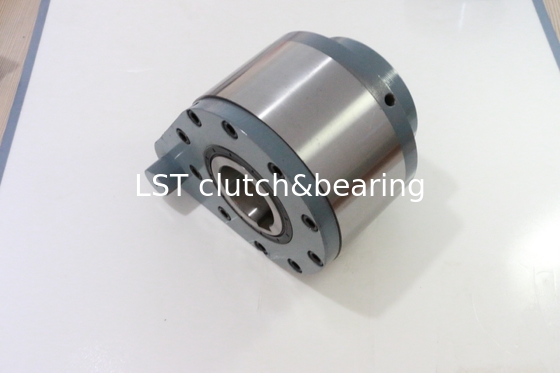

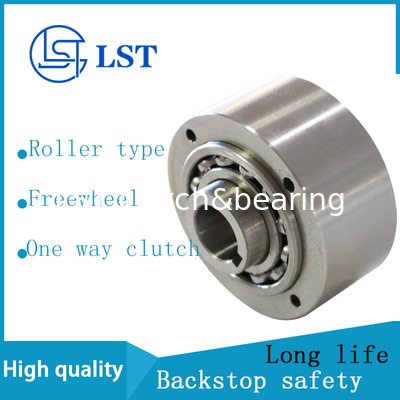

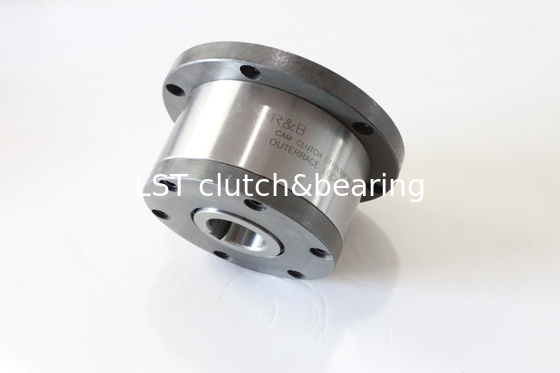

overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch

Description
Material: Gcr15 Model: GFR25
Application: Textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks ID: 25mm
OD: 90mm Height: 60mm
Torqure Capacity: 288N.M Weight2.9: 138kg/pcs

GFR GFRN Roller Clutch Roller One Way Bearing

Product Description

GFR 130 GFRN130 Roller Clutch Bearing Roller One Way Bearing

GFR GFRN

Features

Types GFR,GFRN /MZEU/FGR/GLG  are roller type freewheels. They are bearing supported, using two 160.. series bearings, and require oil lubrication. These units may be used in designs providing oil lubrication and sealing as on the example overleaf. The bearings must not be axially stressed.

Typically, types GFR,GFRN are used with the F series covers that are designed to transmit torque, and provide oil lubrication and sealing. Usually these covers are used in pairs according to combinations shown on the following pages. The outer race of the GFR model is plain to receive and center any component bored to H7 tolerance.
Torque is transmitted by bolts through the cover plate in this case. Types GFR, GFRN are identical except that type GFRN has a keyway on the outside diameter to transmit the torque. Two paper seals are delivered with each unit to be placed between the outer race and cover plates.



Types GFR...F1F2/F2F7 and GFRN...F5F6 are roller type freewheels, self-contained, sealed and bearing supported, using two 160...Series bearings.

Units must be oil lubricated before use if they are delivered disassembled. Primarily used as overrunning or indexing clutches. The cover combination is chosen according to the type of drive, as shown overleaf.

F2 and F6 covers are used to close the unit. They are equipped with 3 screws for oil filling, drain and level.

The shaft seal is a standard lip seal. Covers may be easily assembled by a qualified user, allowing direction of rotation to be selected on site. Alternatively, units can be delivered assembled and lubricated (except GFRN...F5F6).

MODEL : GFR.. F3F4 ROLLER FREEWHEEL



Item GFR.. F1F2/ F2F7/ GFRN...F5F6
Precision P6
Type Roller
Type of Support Bearing Support
Bore size (mm) 12-150
Outer race (mm) 62-400
Torque (KN) 55-70000
Overrunning speed (min-1) 200-3100
Weight (kg) 1.2-187
Application Elevator , industrial machine and so on



INTRODUCTION

Types GFR...F1F2/F2F7 and GFRN...F5F6 are roller type freewheels, self-contained, sealed and bearing supported, using two 160...Series bearings.


Units must be oil lubricated before use if they are delivered disassembled. Primarily used as overrunning or indexing clutches.

F2 and F6 covers are used to close the unit. They are equipped with 3 screws for oil filling, drain and level.

The shaft seal is a standard lip seal. Covers may be easily assembled by a qualified user, allowing direction of rotation to be selected on site. Alternatively, units can be delivered assembled and lubricated (except GFRN...F5F6).

overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 1

PARAMETERS LIST

overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 2



Type Size   Overrunning speeds

keyway

outer race

Weight
  dH7 TKN1) nimax2) namax3) Dh7 D5 D7 D3 D4h7 t2 L1 L5 L t1 bP10
  [mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
  12 55 3100 4700 62 85 70 72 42 5.7 42 44 20 2.5 4 1.2
  15 125 2800 4400 68 92 76 78 47 5.7 52 54 28 3 5 1.6
  20 181 2400 4100 75 98 84 85 55 5.7 57 59 34 3.5 6 1.9
  25 288 1600 3800 90 118 99 104 68 6.8 60 62 35 4 8 2.9
  30 500 1300 2800 100 128 109 114 75 6.8 68 70 43 4 8 3.9
  35 725 1200 2600 110 140 119 124 80 6.8 74 76 45 5 10 4.9
  40 1025 850 2300 125 160 135 142 90 9 86 88 53 5 12 7.5

GFR..

F1F2

45 1125 740 2200 130 165 140 146 95 9 86 88 53 5.5 14 7.8

GFRN..

F5F6

50 2125 580 1950 150 185 160 166 110 9 94 96 64 5.5 14 10.8

GFR..

F2F7

55 2625 550 1800 160 204 170 182 115 11 104 106 66 6 16 14
  60 3500 530 1700 170 214 182 192 125 11 114 116 78 7 18 16.8
  70 5750 500 1600 190 234 202 212 140 11 134 136 95 7.5 20 20.8
  80 8500 480 1500 210 254 222 232 160 11 144 146 100 9 22 27
  90 14500 450 1300 230 278 242 254 180 13 158 160 115 9 25 40
  100 20000 350 1100 270 335 282 305 210 17.5 182 184 120 10 28 67
  130 31250 250 900 310 380 322 345 240 17.5 212 214 152 11 32 94
  150 70000 200 700 400 485 412 445 310 21.5 246 248 180 12 36 187



NOTES

1) T max = 2 × T KN

2) Inner race overruns. Values without radial lip seals

3) Outer race overruns. Values without radial lip seals

Keyway to DIN 6885.1



overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 3





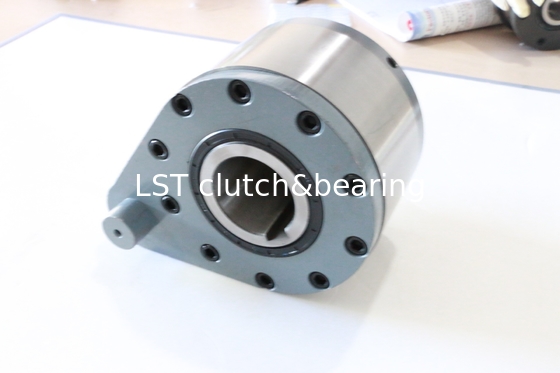

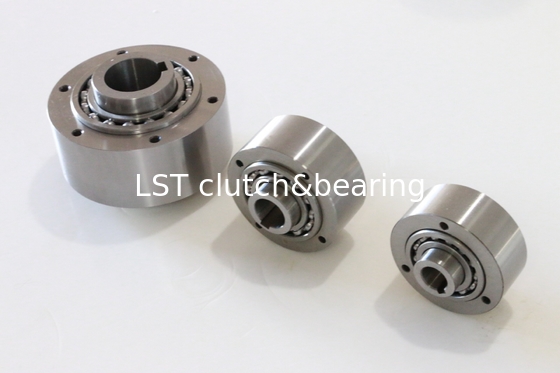

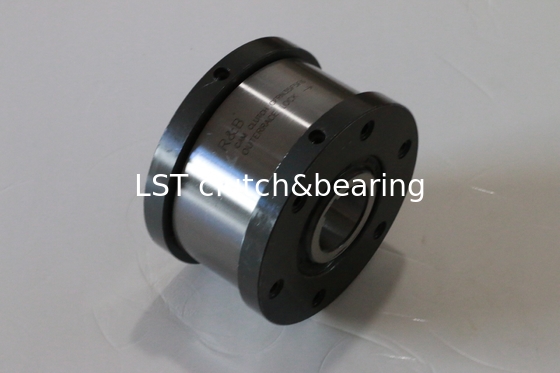

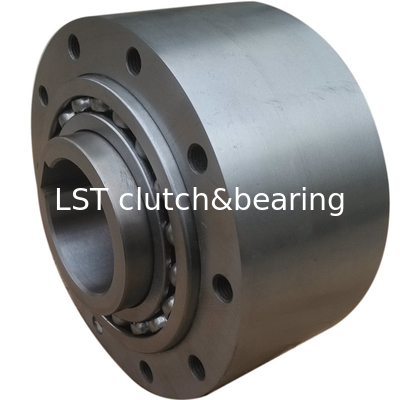

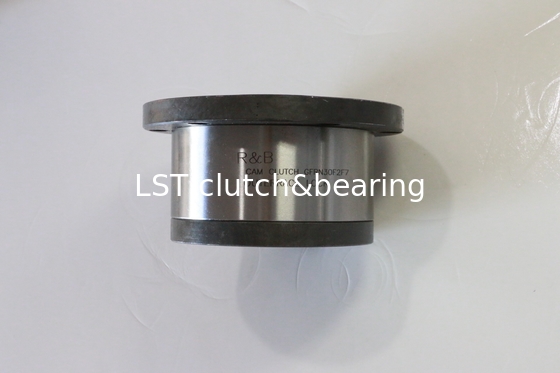

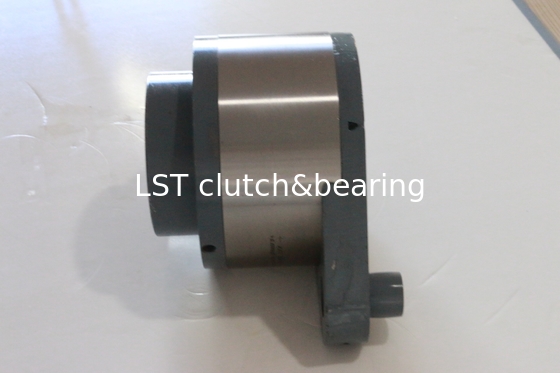

Detailed Image

Sprag Clutch AS (NSS TSS) One Way Clutch



overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 5

overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 6



Company Information



Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



Workshop

overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 7

Manufacture Processing

overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 8

Testing equipment

overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 9

overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 10



Main products



1. One Way Bearing

overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 11

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings

overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 12



Applications:



Backstop

A Backstop application is where rotation

is allowed in one direction and stopped in

the opposite.

Application examples:

· Conveyor equipment

· Mixers

· High voltage switches

· Furniture industry

· Turnstiles and revolving doors

· Geared motors

· Winches

· Elevators

· Cranes

· Strap/belt tighteners

· Bucket conveyors

· Belt reversing locks

· Fans

· Automatic doors (subway)

· Fire damper flaps

· Aviation technology

· Roller plants

· Summer skiing



Indexing clutch

A repeated drive then idle motion will

be transferred to the driven side, step by

step, as rotary motion in one direction (the

clamping direction).



Application examples:

·Paper processing (advance)

· Seeding machines

· Staplers (staples)

· Conveyor belts (drive)

· Ratchets

· Ratchet wrenches

· Roller advance

· Installation tools

· Automation technology





Overrunning clutch

If the speed of the driven side exceeds the

speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

Application examples:

·Copier machines

· Printing machines

· Conveyor equipment

· Transport equipment (speed matching)

· Starters for combustion engines

· Ergometers

· E-bikes

· Bicycle hubs

· Starters

· Emergency power aggregates

· Generators

· Hybrid applications (E-mobility)

· Palletizing and storage systems

· Model helicopters

· Hand operated sirens

· Roller coasters

· Washing systems

· Continuous ovens

· Compressors

· Compensating gearboxes

· Gas turbine drives

· Pump drives

· Belt drives

· Wheelchairs



overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 13

Our advanges:

overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 14

LST MODELS:


1. One way clutch MG Series MG300/MG400/MG500/MG600/MG700/MG750/MG800/MG900/MG100/MG1100/MG1200/MG13

2. One way clutch MZ Series MZ15/MZ17/MZ20/MZ30-22/MZ30-25/MZ30/MZ35/MZ45-40/MZ45-40/MZ60-50/MZ60-55/MZ60/MZ70-65/MZ70

3. B200 series cam clutch
B203/B204/B205/B206/B207/B208/B209/B210/B211/B212/B213/B214

4. BB series one way bearings
BB15/BB17/BB20/BB25/BB30/BB35/BB40/BB15-1K-K/BB17-1K-K/BB20-1K-K/BB25-1K-K /BB30-1K-K/BB35-1K-K/BB40-1K-K/BB15-2K-K/BB17-2K-K/BB20-2K-K/BB25-2K-K /BB30-2K-K/BB35-2K-K/BB40-2K-K/


5. CSK series one way bearings
CSK8/CSK12/CSK15/CSK15-1K/CSK15-2K/CSK17/CSK17P/CSK17PP/CSK20/CSK20P/CSK20PP/CSK25/CSK25P/CSK25PP/CSK30/CSK30P/CSK30PP/CSK35/CSK35P/CSK35PP/CSK40/CSK40-1K/CSK40-2K/CSK8-RS/CSK35-2RS/CSK12-2RS/SK40-2RS/CSK15-2RS/CSK20P-2RS/CSK17-2RS /CSK25P-2RS CSK20-2RS/CSK30P-2RS CSK25-2RS /CSK30PP-2RS CSK30-2RS


6. GFK series one way clutch bearings
GFK20/GFK25 /GFK30 /GFK35 /GFK40/GFK45 / GFK50

7. DC series sprag freewheel cage one way clutch
DC2222G /DC2776/ DC2222G /DC3175 (3C) DC2776 /DC3175A DC3175 (3C) /DC3034/ DC3175A
DC3809A/ DC3034 /DC3809A(3C) /DC3809A /DC4127 /DC3809A(3C) /DC4127
DC5476A/ DC4972 (4C) /DC5476A (4C) /DC5476A/ DC5476B/ DC5476A

8. BWC BW. X.BWX series cam clutch
BW-13161/BW-13167/BW-13167MZ/BW-13214/BW-13214/BW-13231/BW-13243/BW-13244/BW-13255/BWC-13168/BWC-13219A/BWC-13229/BWX/BWC/X/RC series freewheel cage overrunning clutch
BWX134939/BWX13219/BWX132640/BWC13230/BWC13244/BWX132909/BWX133339/BWC13167/BWC13239/BWC13168/BWX13261/BWX133403 X133400B /X133400/ X133401 X133402 /X133403 X134398 /X134954/ X135005/ X135006/ X135036/ X135041/ X135052 /X135067 RC061008 /RC081208 RC101410/ RC121610

9. RSBW series one way clutches
RSBW25/ RSBW30/RSBW35/ RSBW40/RSBW45/RSBW50/RSBW55/RSBW60
RSBW65/RSBW70/RSBW75/RSBW80/RSBW85/RSBW90


10. PB series one way clutches
PB3/PB5/PB6/PB8/PB10/PB12/PB14

11. TSS Freewheels sprag one way clutch
TSS8/TSS10/TSS12/TSS15/TSS20/TSS25/TSS30/TSS35/TSS40/TSS45/TSS50/TSS60


12. TFS series cam clutches
TFS12/TFS15/TFS17/TFS20/TFS25/TFS30/TFS35/TFS40/TFS45/TFS50/TFS60/TFS70/TFS8/TFS90

13. AS(NSS or TSS)series one way clutch
TSS8 AS8 NSS8/ TSS10 AS10 NSS10/ TSS12 AS12 NSS12/TSS15 AS15 NSS15/
TSS20 AS20 NSS20/ TSS25 AS25 NSS25/ TSS30 AS30 NSS30/ TSS35 AS35


14. ASNU(NFS or TFS) series one way clutch
TFS12 ASNU12 NFS12/ TFS15 ASNU15 NFS15/ TFS17 ASNU17 NFS17/ TFS20 ASNU20NFS20/TFS25 ASNU25 NFS25/TFS30 ASNU30 NFS30/TFS35 ASNU35

15. NF roller type one way clutch
STIEBER NF8 GFRN55/STIEBER NF12 GFRN60 /STIEBER NF15 GFRN70/
STIEBER NF20 GFRN80/STIEBER NF25 GFRN90/STIEBER NF30 GFRN100


16. AE roller type one way clutch
STIEBER AE8/STIEBER AE12/ STIEBER AE15/ STIEBER AE20/ STIEBER AE25/ STIEBER AE30/ STIEBER AE35/ STIEBER AE40/ STIEBER AE45/ STIEBER AE50/STIEBER AE55/ STIEBER AE60/

17. AA roller type one way clutch
STIEBER AA20/ STIEBER AA25/ STIEBER AA30/STIEBER AA35 /STIEBER AA40/STIEBER AA45/ STIEBER AA50/STIEBER AA55/STIEBER AA60/STIEBER AA70/ STIEBER AA80/STIEBER AA90/
STIEBER AA100/ STIEBER AA120/ STIEBER AA150/

18.GFRGFRN series miler overrunning clutch
GFR12/GFR15/GFR20/ GFR25/GFR30/ GFR35/GFR40/GFR45/GFR50/GFR55/GFR60/GFR70


19.FE series freewheel one way clutch

FE448 /FE443 /FE422/FE423/FE428/FE427/FE432/FE433/FE453 /FE437

20. One way clucth CKA Series bearngs: CK-A1542/CK-A1747/CK-A2052/CK-A2562/CK-A3072/CK-A3580/CK-A4090/CK-A45100/CK-A50110/CK-A60130

21. Drawn cup needle Roller one way HF0406/HF0612/HF0812/HF1012/HF1216HF1416/HF1616/HF1816/HF2016/HF25


22.KI series:KI196


23.HYCS cam clutch :HYC8S/HYC10S/HYC12S/HYC15S/HYC20S/HYC25S/HYC30S/HYC35S/HYC40S/HYC45S/HYC50S/HYC60S

24.LD series one way clutch:LD04/LD05/LD06/LD07/LD08

25.MA series cam clutch:MA20/MA30

26.MI series cam clutch :MI300/MI400/MI500/MI600/MI700/MI750/MI800/MI900/MI1000/MI1100/MI1200/MI1300

27.MZEUseries one way cam clutch :MZEU12K/MZEU15K/MZEU20K/MZEU25K/MZEU30K/MZEU35K/MZEU40K/MZEU45K/MZEU50K/MZEU55K/MZEU60K/MZEU70K/MZEU80K/MZEU90/MZEU100/MZEU130/MZEU150

28.BR series cam clutch BR20/BR25/BR30/BR35/BR40/BR45/BR50/BR60/BR71/BR80/BR90/BR100/BR130/BR150/BR180/BR190/BR220/BR240/

29.BSEU cam clutch BSEU40-20/BSEU40-25/BSEU40-30/BSEU40-35/BSEU40-40/BSEU70-45/BSEU70-50/BSRU70-55/BSEU70-60/BSEU70-65/BSEU70-70/BSEU90-75/BSEU90-80/BSEU90-85/BSEU90-90

30.BST cam clutch BST30/BST50/BST65/BST75/BST85/BST95/BST110/BST135/BST160/BST200/BST220/BST250/BST270/BST300/BST335/BST350/BST425/BST450


31.HYC series
HYC8C/HYC12C/HYC15C/HYC17C/HYC20C/HYC25C/HYC30C/HYC35C/HYC40C/HYC45C/HYC50C/HYC60C/HYC70C/HYC80C/HYC90C


32. CLD series one way bearings CLD04-09-06/CLD04-10-16/CLD04-13-3.1/CLD06-12-06/CLD06-16-3.5/CLD08-16-5.5/CLD08-16-09/

34.AV series backstop one way clutch
STIEBER AV20,STIEBER AV25,STIEBER AV30,STIEBER AV35,STIEBER AV40, STIEBER AV45,STIEBER AV50,STIEBER AV55,STIEBER AV60,STIEBER AV70,
STIEBER AV80,STIEBER AV90,STIEBER AV100,STIEBER AV110,STIEBER AV120

35.RSCI series one way clutch
RSCI20/STIEBER RSCI25/STIEBER RSCI30/STIEBER RSCI35/STIEBER RSCI40/ RSCI45/STIEBER RSCI50/STIEBER RSCI60/STIEBER RSCI70/STIEBER RSCI80/ STIEBER RSCI80M/STIEBER RSCI90/STIEBER RSCI90M/STIEBER RSCI100/STIEBER RSCI100M/ STIEBER RSCI130/STIEBER RSCI180/STIEBER RSCI180M/STIEBER RSCI180II/ STIEBER RSCI180II-M/STIEBER RSCI220/STIEBER RSCI220M/STIEBER RSCI220II/ STIEBER RSCI220II-M/STIEBER RSCI240/STIEBER RSCI240M/STIEBER RSCI240II/ STIEBER RSCI240II-M/STIEBER RSCI260/STIEBER RSCI260M/STIEBER RSCI260II/ STIEBER RSCI260II-M/STIEBER RSCI300/STIEBER RSCI300M/STIEBER RSCI300II

36.RSBI series
RSBI60/RSBI70/RSBI80/RSBI90/RSBI100/RSBI130/RSBI150/RSBI180/RSBI190/RSBI220/RSBI240STIEBER/RSBI100 /RIZ100G4 /STIEBER RSBI130 /RIZ130G4 /STIEBER RSBI150 /STIEBER RSBI100F8 RIZ30G7 /STIEBER RSBI130F8/ RIZ35G7 STIEBER/ RSBI150 F8 RIZ40G7

Needle roller bearings:
1. K series radial needle roller and cage assembiles,
NK series, Non-inner ring needle bearing, light series
NKS, Non-inner ring needle roller bearings, heavy series
RNA49, Non-inner needle roller bearing, sizes 49 series
RNA69, Non-inner needle roller bearings, size 69 series
RNA48, Non-inner needle roller bearings, size 48 series
NKI, with inner ring needle bearings, light series
AXK thrust ball bearing with flat seat.


2. Supporting roller and curve roller bearings:
NUTRseries, NUKRseries, KR series, PWKR series, NATR series, RSTOseries, STOseries, NATV series, CF series.

3. Combined radial bearings:
NKIA series, NKIB series, NX series, NKX series, NKXR series, ZARN series, ZARF series, RAXF series


Transport ways:

overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 15

Easy communication  ways:



overrunning clutch GFR/GFRN/MZEU/FGR/GL12-150F1F2/A1A2/F2D2 ramp & roller type one way clutch 16





Contact Details
Changzhou Lisongtai Industrial Motion Technology Co.,LtD

Contact Person: Ms. Sun

Tel: +8615895075912

Fax: 86-519-68254183

Send your inquiry directly to us (0 / 3000)
