Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings

Certification
China Changzhou Lisongtai Industrial Motion Technology Co.,LtD certification
I'm Online Chat Now

Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings

Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings
Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings

Large Image :  Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings

Product Details:
Place of Origin: Jiangsu,China
Brand Name: R&B
Certification: SGS
Model Number: CSK17PP
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD2.30-3.00/pcs
Packaging Details: Industrial packing and commercial packing
Supply Ability: 100000pcs/per month

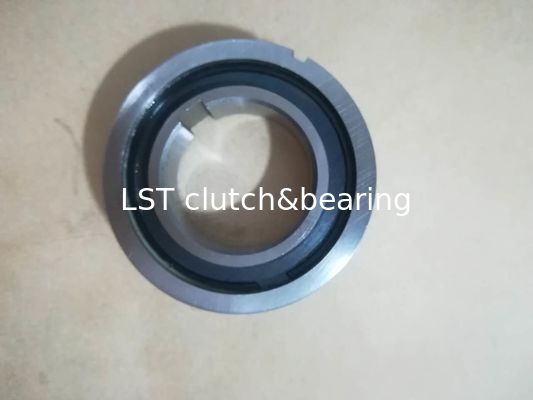

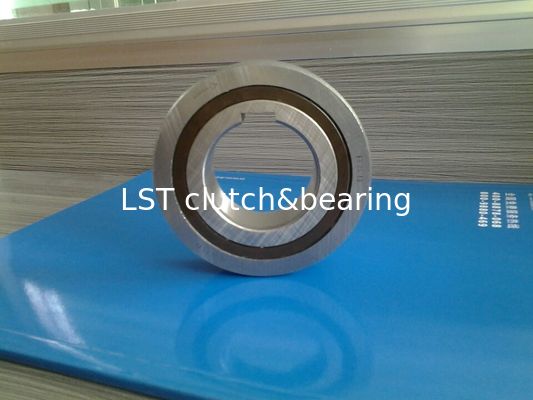

Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings

Description
Material: Gcr15 Model: CSK17PP
Application: Elevator Machine ID: 17mm
OD: 40mm Height: 12mm
Torqure Capacity: 30N.M Weight: 0.07kg/pcs



SPECIFICATIONS
Model CSK17PP
Inner diameter 17mm
Outer diameter 40mm
Thickness 12mm
Torque capacity 30Nm
Max Torque 65Nm
Max outer race overrunning speed 7350r/min
Weight 0.07kg
Delivery time 5-7days,stock
Payment Terms TT,D/P,D/A,Western Union, Paypal,Payoneer



One Way Clutch Indexing Clutch (CSK CSK-2RS)
One Way Clutch Indexing Clutch Csk Csk-2RS

Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40). It is bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional "nylos" type seals is recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
All the CSK versions are equipped with "formchromed" sprags. This process increases several times the overrunning life time. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if
using the press fit as specified. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C. CSK..2RS is 5 mm wider but is equiped with lip seals to be water splash resistant.

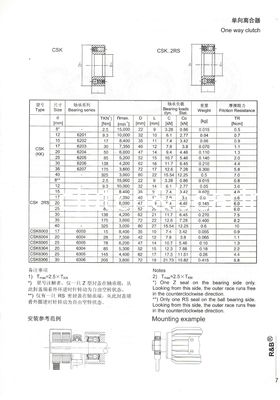

One Way Clutch Indexing Clutch Csk Csk-2RS
Type Size Bearing series   Bearing loads Weight Dragtorque
dynamic static





CSK (KK)
d   TKN1) nmax D L C C0   TR
[mm] [Nm] [min-1] [mm] [mm] [kN] [kN] [kg] [Ncm]
8* - 2.5 15000 22 9 3.28 0.86 0.015 0.5
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 - 325 3000 80 22 15.54 12.25 0.5 7




CSK..2RS
8**   2.5 15000 22 9 3.28 0.86 0.015 0.8
12 - 9.3 10000 32 14 6.1 2.77 0.05 3
15   17 8400 35 16 7.4 3.42 0.07 4
17   30 7350 40 17 7.9 3.8 0.09 5.6
20   50 6000 47 19 9.4 4.46 0.145 6
25   85 5200 52 20 10.7 5.46 0.175 6
30   138 4200 62 21 11.7 6.45 0.27 7.5
35   175 3600 72 22 12.6 7.28 0.4 8.2
40 - 325 3000 80 27 15.54 12.25 0.6 10





Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings 2


One Way Clutch Indexing Clutch Csk Csk-2RS



Company Information



Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



Workshop

Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings 4

Manufacture Processing

Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings 5

Testing equipment



Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings 6



Main products



1. One Way Bearing

Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings 7

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings

Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings 8

Applications:

Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings 9

Our advanges:

Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings 10

Our package:

Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings 11

R&B Certifications:

Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings 12

Transport ways:

Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings 13

Easy communication  ways:



Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings 14





FAQ

A:Will you send me free sample?

B: It is highly encouraged to ask for the samples for quality check.



A:Do you like to serve the client only with small orders?

B:We enjoy to grow up together with all our clients whatever big or small.And WIN-WIN is our objective.



A:Could you accept OEM and customize?
B:YES, we can customize for you according to sample or drawing, but, pls provide us technical data, such as dimension and mark.


A:Is it your company is factory or Trade Company?
B:We have our own factory; our type is factory + trade.


A:How to maintain my bearings?
B:a. Soak your bearings in mineral spririts or paint thinner to remove any grease or particulates;
b. Blowbearing out with compressed air;
c.place a light drop of oil on the bearing;
d.If the bearings feel rough repeat, give the bearing a spin.


A:Could you supply door to door service?
B:Yes, by air and by express (DHL, FEDEX, TNT, ARAMEX,EMS, SF)
