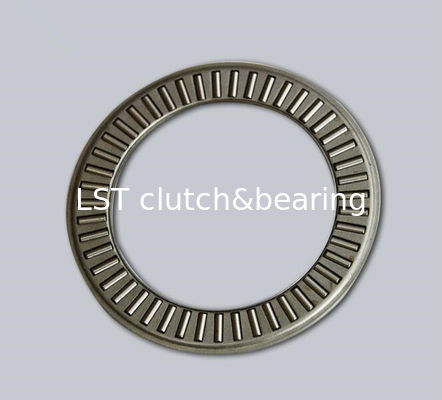

Large Image :  INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings

Product Details:
Place of Origin: Jiangsu,China
Brand Name: R&B
Certification: SGS, ISO9001:2015
Model Number: AXK120155 +2AS
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD1-3pcs
Packaging Details: Industrial packing and commercial packing
Supply Ability: 100000pcs/per month

INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings

Description
Original Model: 889124 Material: ST12
Torrington Model: No ID: 120mm
OD: 155mm Height: 4mm
Cr Dynamic: 101500N Cor Static: 679600N
Weight: 131g Application: Electrical Machinery, Electrical Appliances, Machinery, Furniture, Toys, Printers,



Made in China Bearing Factory Trust Needle Roller and Cage assemblies bearings

Product Description



INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 0



INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 1




Feature

  • Accommodate heavy axial loads and peak loads
    The very small diameter deviation of the rollers within one assembly enables these bearings to accommodate heavy axial loads and peak loads.
  • Extended bearing service life
    To prevent stress peaks, the roller ends are relieved slightly to modify the line contact between the raceway and rollers.



Thrust bearings consist of a thrust cage assembly with a needle roller or cylindrical roller or ball and a thrust washer. Needle roller and cylindrical roller by the thrust cage to maintain and guide. When used with different series of DF thrust bearing washers, many different combinations of bearing configurations are available. Due to the selection of high-precision cylindrical roller (needle roller) increased contact length, making this bearing in a small space to obtain high load capacity and high stiffness. Another advantage is that the gasket can be dispensed with if the adjacent part surfaces are suitable for raceway surfaces and the design is compact. The cylindrical surfaces of the needle rollers and cylindrical rollers used in DF thrust needle roller thrust bearings and thrust cylindrical roller bearings are Shaping the surface, can reduce edge stress, improve service life.





Application


It is dely used in machine tools, metallurgical machinery, textile machinery and printing machinery and other machinery and equipment, and mechanical design can be more compact and smart.



Dimensions





                                          INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 2

Thrust Shaft Dia Bearing Mass Housing Mass Dimension(mm)
needle roller bearing (mm) Washer Approx (g) Locating Washer Approx (g) d D B1
AXK0414TN 4 AS0414 1     4 14 2
AXK0515TN 5 AS0515 1     5 15 2
AXK0614TN 6 AS0614 1     6 14 2
AXK0619TN 6 AS0619 2     6 19 2
AXK0821TN 8 AS0821 2     8 21 2
AXK1024 10 AS1024 3     10 24 2
AXK1226 12 AS1226 3     12 26 2
AXK1528 15 AS1528 3 GS81102 8 15 28 2
AXK1722 17 AS1722 3     17 22 2
AXK1730 17 AS1730 4 GS81103 9 17 30 2
AXK2035 20 AS2035 5 GS81104 12 20 35 2
AXK2542 25 AS2542 7 GS81105 19 25 42 2
AXK3047 30 AS3047 8 GS81106 20 30 47 2
AXK3552 35 AS3552 9 GS81107 27 35 52 2
AXK4060 40 AS4060 12 GS81108 37 40 60 3
AXK4565 45 AS4565 13 GS81109 47 45 65 3
AXK5070 50 AS5070 14 GS81110 51 50 70 3
AXK5578 55 AS5578 18 GS81111 82 55 78 3
AXK6085 60 AS6085 22 GS81112 92 60 85 3
AXK6590 65 AS6590 24 GS81113 110 65 90 3
AXK7095 70 AS7095 25 GS81114 120 70 95 4
AXK75100 75 AS75100 27 GS81115 136 75 100 4
AXK80105 80 AS80105 28 GS81116 144 80 105 4
AXK85110 85 AS85110 29 GS81117 151 85 110 4
AXK90120 90 AS90120 39 GS81118 225 90 120 4
AXK100135 100 AS100135 50 GS81120 350 100 135 4
AXK110145 110 AS110145 55 GS81122 385 110 145 4
AXK120155 120 AS120155 59 GS81124 415 120 155 4
AXK130170 130 AS130170 65 GS81126 643 130 170 5
AXK140180 140 AS140180 79 GS81128 749 140 180 5
AXK150190 150 AS150190 84 GS81130 796 150 190 5
AXK160200 160 As160200 89 Gs81132 842 160 200 5


INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 3

INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 4

81102TN 0.024 K81102TN 0.006 GS81102 WS81102 LS1528 0.008 15 16 28 28 9 3.5 2.75 0.3
17 81103TN 0.027 K81103TN 0.009 GS81103 WS81103 LSl730 0.009 17 18 30 30 9 3.5 2.75 0.3
20 81104TN 0.037 K81104TN 0.013 GS81104 WS81104 LS2035 0.012 20 21 35 35 10 4.5 2.75 0.3
25 81105TN 0.053 K81105TN 0.015 GS81105 WS81105 LS2542 0.019 25 26 42 42 11 5 3 0.6
30 81106TN 0.057 K81106TN 0.017 GS81106 WS81106 LS3047 0.02 30 32 47 47 11 5 3 0.6
81206TN 0.123 K81206TN 0.033 GS81206 WS81206   0.045 30 32 52 52 16 7.5 4.25 0.6
89306TN 0.24 K89306TN 0.04 GS89306 WS89306   0.095 30 32 60 60 18 5.5 6.25 1
35 81107TN 0.073 K81107TN 0.019 GS81107 WS81107 LS3552 0.027 35 37 52 52 12 5 3.5 0.6
81207TN 0.195 K81207TN 0.043 GS81207 WS81207   0.076 35 37 62 62 18 7.5 5.25 1
89307TN 0.34 K89307TN 0.053 GS89307 WS89307   0.134 35 37 68 68 20 6 7 1
40 81108TN 0.105 K81108TN 0.031 GS81108 WS81108 LS4060 0.037 40 42 60 60 13 6 3.5 0.6
81208TN 0.249 K81208TN 0.081 GS81208 WS81208   0.084 40 42 68 68 19 9 5 1
89308TN 0.484 K89308TN 0.098 GS89308 WS89308   0.193 40 42 78 78 22 7 7.5 1
45 81109TN 0.13 K81109TN 0.035 GS81109 WS81109 LS4565 0.047 45 47 65 65 14 6 4 0.6
81209TN 0.287 K81209TN 0.085 GS81209 WS81209   0.101 45 47 73 73 20 9 5.5 1
89309TN 0.615 K89309TN 0.121 GS89309 WS89309   0.247 45 47 85 85 24 7.5 8.25 1
50 81110TN 0.14 K81110TN 0.038 GS81110 WS81110 LS5070 0.051 50 52 70 70 14 6 4 0.6
81210TN 0.356 K81210TN 0.098 GS81210 WS81210   0.129 50 52 78 78 22 9 6.5 1
89310TN 0.887 K89310TN 0.175 GS89310 WS89310   0.356 50 52 95 95 27 8 9.5 1.1
55 81111TN 0.218 K81111TN 0.045 GS81111 WS81111 LS5578 0.082 55 57 78 78 16 6 5 0.6
81211TN 0.568 K81211TN 0.166 GS81211 WS81211   0.201 55 57 90 90 25 11 7 1
89311TN 1.18 K89311TN 0.195 GS89311 WS89311   0.485 55 57 105 105 30 9 10.5 1.1
60 81112TN 0.266 K81112TN 0.082 GS81112 WS81112 LS6085 0.092 60 62 85 85 17 7.5 4.75 1
81212TN 0.642 K81212TN 0.176 GS81212 WS81212   0.233 60 62 95 95 26 11 7.5 1
89312TN 1.26 K89312TN 0.21 GS89312 WS89312   0.517 60 62 110 110 30 9 10.5 1.1
89412TN 2.818 K89412TN 0.538 GS89412 WS89412   1.115 60 62 130 130 42 14 14 1.5
65 81113TN 0.31 K81113TN 0.09 GS81113 WS81113 LS6590 0.11 65 67 90 90 18 7.5 5.25 1
81213TN 0.721 K81213TN 0.185 GS81213 WS81213   0.268 65 67 100 100 27 11 8 1
89313TN 1.33 K89313TN 0.21 GS89313 WS89313   0.535 65 67 115 115 30 9 10.5 1.1
89413TN 3.52 K89413TN 0.72 GS89413 WS89413   1.4 65 68 140 140 45 15 15 2
70 81114TN 0.332 K81114TN 0.092 GS81114 WS81114 LS7095 0.12 70 72 95 95 18 7.5 5.25 1
81214TN 0.768 K81214TN 0.212 GS81214 WS81214   0.278 70 72 105 105 27 11 8 1
89314TN 1.82 K89314TN 0.29 GS89314 WS89314   0.8 70 72 125 125 34 10 12 1.1
89414TN 4.18 K89414TN 0.76 GS89414 WS89414   1.73 70 73 150 150 48 16 16 2
75 81115TN 0.393 K81115TN 0.096 GS81115 WS81115 LS75100 0.136 75 77 100 100 19 7.5 5.75 1
81215TN 0.8 K81215TN 0.195 GS81215 WS81215   0.293 75 77 110 110 27 11 8 1
89315TN 2.23 K89315TN 0.375 GS89315 WS89315   0.97 75 77 135 135 36 11 12.5 1.5
89415 5.96 K89415 1.78 GS89415 WS89415   2.09 75 78 160 160 51 17 17 2
80 81116TN 0.4 K81116TN 0.095 GS81116 WS81116 LS80105 0.144 80 82 105 105 19 7.5 5.75 1
81216 TN 0.9 K812 16 TN 0.234 GS812 16 WS812 16   0.333 80 82 115 115 28 11 8.5 1
89316 TN 2.37 K893 16 TN 0.42 GS893 16 WS893 16   1.02 80 82 140 140 3

INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 5
Detailed Image


China Bearing Factory Sprag Clutch DC One Way Bearing





INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 7



WE SUPPLY YOU THE MODELS AS FOLLOWS:
AXK0515 AXK0821 AXK1024 AXK1226 AXK1528 AXK1730 AXK2035 AXK2542 AXK3047 AXK3552 AXK4060 AXK4565 AXK5070 AXK5578 AXK6085 AXK6590 AXK7095 AXK75100 AXK80105 AXK85110 AXK90120 AXK100135 AXK110145 AXK120155/AXK130170/AXK140180/AXK150190 AXK0414TN/AXK0515TN/AXK0619TN/AXK0821TN/AXK1024/AXK1226/AXK1528/AXK1730/AXK2035/AXK2542/AXK3047/AXK3552/AXK4060/AXK4565/AXK5070/AXK5578/AXK6085/AXK6590/AXK7095/AXK75100/AXK80105/AXK85110/AXK90120/AXK100135/AXK110145/AXK120155/AXK130170/AXK140180/AXK150190/AXK160200,AXW10/AXW12/AXW15/AXW17/AXW20/AXW25/AXW30/AXW35/AXW40/AXW45/AXW50/AS0414/AS0515/AS0619/AS0821/AS100135/AS1024/AS110145/AS120155/AS1226/AS130170/AS140180/AS150190/AS1528/AS160200/AS1730/AS2035/AS2542/AS3047/AS3552/AS4060/AS4565/AS5070/AS5578/AS6085/AS6590/AS7095/AS75100/AS80105/AS85110/AS90120/AS90120/LS0414/LS0515/LS0619/LS0821/LS100135/LS1024/LS110145/LS120155/LS1226/LS130170/LS140180/LS150190/LS1528/LS160200/LS1730/LS2035/LS2542/LS3047/LS3552/LS4060/LS4565/LS5070/LS5578/LS6085/LS6590/LS7095/LS75100/LS80105/LS85110/LS90120/81102/81103/81104/81105/81106/81107/81108/81109/81110/81111/81112/81113/81114/WS81102/WS81103/WS81104/WS81105/WS81106/WS81107/WS81108/WS81109/WS81110/WS81111//WS81112/WS81113/WS81114/GS81102/GS81103/GS81104/GS81105/GS81106/GS81107/GS81108/GS81109/GS81110/GS81111/GS81112/GS81113/GS81114 WS81115/WS81116/WS81117/WS81118/WS81119/WS81120/WS81122/WS81124/WS81126/WS81128/WS81130/WS81132 GS81115/GS81116/GS81117/GS81118/GS81120/GS81122/GS81124/GS81128/GS81130/GS81132/GS81134



INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 8

Company Information



Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



Workshop

INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 9



Manufacture Processing

INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 10

Application Industry:



INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 11



INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 12

Testing equipment



INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 13



Main products



1. One Way Bearing

INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 14

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings

INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 15





Our advanges:

INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 16

Our package:

INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 17

R&B Certifications:

INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 18

R&B manufactured Models

1. One way clutch MG Series MG300/MG400/MG500/MG600/MG700/MG750/MG800/MG900/MG100/MG1100/MG1200/MG13

2. One way clutch MZ Series MZ15/MZ17/MZ20/MZ30-22/MZ30-25/MZ30/MZ35/MZ45-40/MZ45-40/MZ60-50/MZ60-55/MZ60/MZ70-65/MZ70

3. B200 series cam clutch
B203/B204/B205/B206/B207/B208/B209/B210/B211/B212/B213/B214

4. BB series one way bearings
BB15/BB17/BB20/BB25/BB30/BB35/BB40/BB15-1K-K/BB17-1K-K/BB20-1K-K/BB25-1K-K /BB30-1K-K/BB35-1K-K/BB40-1K-K/BB15-2K-K/BB17-2K-K/BB20-2K-K/BB25-2K-K /BB30-2K-K/BB35-2K-K/BB40-2K-K/


5. CSK series one way bearings
CSK8/CSK12/CSK15/CSK15-1K/CSK15-2K/CSK17/CSK17P/CSK17PP/CSK20/CSK20P/CSK20PP/CSK25/CSK25P/CSK25PP/CSK30/CSK30P/CSK30PP/CSK35/CSK35P/CSK35PP/CSK40/CSK40-1K/CSK40-2K/CSK8-RS/CSK35-2RS/CSK12-2RS/SK40-2RS/CSK15-2RS/CSK20P-2RS/CSK17-2RS /CSK25P-2RS CSK20-2RS/CSK30P-2RS CSK25-2RS /CSK30PP-2RS CSK30-2RS


6. GFK series one way clutch bearings
GFK20/GFK25 /GFK30 /GFK35 /GFK40/GFK45 / GFK50

7. DC series sprag freewheel cage one way clutch
DC2222G /DC2776/ DC2222G /DC3175 (3C) DC2776 /DC3175A DC3175 (3C) /DC3034/ DC3175A
DC3809A/ DC3034 /DC3809A(3C) /DC3809A /DC4127 /DC3809A(3C) /DC4127
DC5476A/ DC4972 (4C) /DC5476A (4C) /DC5476A/ DC5476B/ DC5476A

8. BWC BW. X.BWX series cam clutch
BW-13161/BW-13167/BW-13167MZ/BW-13214/BW-13214/BW-13231/BW-13243/BW-13244/BW-13255/BWC-13168/BWC-13219A/BWC-13229/BWX/BWC/X/RC series freewheel cage overrunning clutch
BWX134939/BWX13219/BWX132640/BWC13230/BWC13244/BWX132909/BWX133339/BWC13167/BWC13239/BWC13168/BWX13261/BWX133403 X133400B /X133400/ X133401 X133402 /X133403 X134398 /X134954/ X135005/ X135006/ X135036/ X135041/ X135052 /X135067 RC061008 /RC081208 RC101410/ RC121610

9. RSBW series one way clutches
RSBW25/ RSBW30/RSBW35/ RSBW40/RSBW45/RSBW50/RSBW55/RSBW60
RSBW65/RSBW70/RSBW75/RSBW80/RSBW85/RSBW90


10. PB series one way clutches
PB3/PB5/PB6/PB8/PB10/PB12/PB14

11. TSS Freewheels sprag one way clutch
TSS8/TSS10/TSS12/TSS15/TSS20/TSS25/TSS30/TSS35/TSS40/TSS45/TSS50/TSS60


12. TFS series cam clutches
TFS12/TFS15/TFS17/TFS20/TFS25/TFS30/TFS35/TFS40/TFS45/TFS50/TFS60/TFS70/TFS8/TFS90

13. AS(NSS or TSS)series one way clutch
TSS8 AS8 NSS8/ TSS10 AS10 NSS10/ TSS12 AS12 NSS12/TSS15 AS15 NSS15/
TSS20 AS20 NSS20/ TSS25 AS25 NSS25/ TSS30 AS30 NSS30/ TSS35 AS35


14. ASNU(NFS or TFS) series one way clutch
TFS12 ASNU12 NFS12/ TFS15 ASNU15 NFS15/ TFS17 ASNU17 NFS17/ TFS20 ASNU20NFS20/TFS25 ASNU25 NFS25/TFS30 ASNU30 NFS30/TFS35 ASNU35

15. NF roller type one way clutch
STIEBER NF8 GFRN55/STIEBER NF12 GFRN60 /STIEBER NF15 GFRN70/
STIEBER NF20 GFRN80/STIEBER NF25 GFRN90/STIEBER NF30 GFRN100


16. AE roller type one way clutch
STIEBER AE8/STIEBER AE12/ STIEBER AE15/ STIEBER AE20/ STIEBER AE25/ STIEBER AE30/ STIEBER AE35/ STIEBER AE40/ STIEBER AE45/ STIEBER AE50/STIEBER AE55/ STIEBER AE60/

17. AA roller type one way clutch
STIEBER AA20/ STIEBER AA25/ STIEBER AA30/STIEBER AA35 /STIEBER AA40/STIEBER AA45/ STIEBER AA50/STIEBER AA55/STIEBER AA60/STIEBER AA70/ STIEBER AA80/STIEBER AA90/
STIEBER AA100/ STIEBER AA120/ STIEBER AA150/

18.GFRGFRN series miler overrunning clutch
GFR12/GFR15/GFR20/ GFR25/GFR30/ GFR35/GFR40/GFR45/GFR50/GFR55/GFR60/GFR70


19.FE series freewheel one way clutch

FE448 /FE443 /FE422/FE423/FE428/FE427/FE432/FE433/FE453 /FE437

20. One way clucth CKA Series bearngs: CK-A1542/CK-A1747/CK-A2052/CK-A2562/CK-A3072/CK-A3580/CK-A4090/CK-A45100/CK-A50110/CK-A60130

21. Drawn cup needle Roller one way HF0406/HF0612/HF0812/HF1012/HF1216HF1416/HF1616/HF1816/HF2016/HF25


22.KI series:KI196


23.HYCS cam clutch :HYC8S/HYC10S/HYC12S/HYC15S/HYC20S/HYC25S/HYC30S/HYC35S/HYC40S/HYC45S/HYC50S/HYC60S

24.LD series one way clutch:LD04/LD05/LD06/LD07/LD08

25.MA series cam clutch:MA20/MA30

26.MI series cam clutch :MI300/MI400/MI500/MI600/MI700/MI750/MI800/MI900/MI1000/MI1100/MI1200/MI1300

27.MZEUseries one way cam clutch :MZEU12K/MZEU15K/MZEU20K/MZEU25K/MZEU30K/MZEU35K/MZEU40K/MZEU45K/MZEU50K/MZEU55K/MZEU60K/MZEU70K/MZEU80K/MZEU90/MZEU100/MZEU130/MZEU150

28.BR series cam clutch BR20/BR25/BR30/BR35/BR40/BR45/BR50/BR60/BR71/BR80/BR90/BR100/BR130/BR150/BR180/BR190/BR220/BR240/

29.BSEU cam clutch BSEU40-20/BSEU40-25/BSEU40-30/BSEU40-35/BSEU40-40/BSEU70-45/BSEU70-50/BSRU70-55/BSEU70-60/BSEU70-65/BSEU70-70/BSEU90-75/BSEU90-80/BSEU90-85/BSEU90-90

30.BST cam clutch BST30/BST50/BST65/BST75/BST85/BST95/BST110/BST135/BST160/BST200/BST220/BST250/BST270/BST300/BST335/BST350/BST425/BST450


31.HYC series
HYC8C/HYC12C/HYC15C/HYC17C/HYC20C/HYC25C/HYC30C/HYC35C/HYC40C/HYC45C/HYC50C/HYC60C/HYC70C/HYC80C/HYC90C


32. CLD series one way bearings CLD04-09-06/CLD04-10-16/CLD04-13-3.1/CLD06-12-06/CLD06-16-3.5/CLD08-16-5.5/CLD08-16-09/

34.AV series backstop one way clutch
STIEBER AV20,STIEBER AV25,STIEBER AV30,STIEBER AV35,STIEBER AV40, STIEBER AV45,STIEBER AV50,STIEBER AV55,STIEBER AV60,STIEBER AV70,
STIEBER AV80,STIEBER AV90,STIEBER AV100,STIEBER AV110,STIEBER AV120

35.RSCI series one way clutch
RSCI20/STIEBER RSCI25/STIEBER RSCI30/STIEBER RSCI35/STIEBER RSCI40/ RSCI45/STIEBER RSCI50/STIEBER RSCI60/STIEBER RSCI70/STIEBER RSCI80/ STIEBER RSCI80M/STIEBER RSCI90/STIEBER RSCI90M/STIEBER RSCI100/STIEBER RSCI100M/ STIEBER RSCI130/STIEBER RSCI180/STIEBER RSCI180M/STIEBER RSCI180II/ STIEBER RSCI180II-M/STIEBER RSCI220/STIEBER RSCI220M/STIEBER RSCI220II/ STIEBER RSCI220II-M/STIEBER RSCI240/STIEBER RSCI240M/STIEBER RSCI240II/ STIEBER RSCI240II-M/STIEBER RSCI260/STIEBER RSCI260M/STIEBER RSCI260II/ STIEBER RSCI260II-M/STIEBER RSCI300/STIEBER RSCI300M/STIEBER RSCI300II

36.RSBI series
RSBI60/RSBI70/RSBI80/RSBI90/RSBI100/RSBI130/RSBI150/RSBI180/RSBI190/RSBI220/RSBI240STIEBER/RSBI100 /RIZ100G4 /STIEBER RSBI130 /RIZ130G4 /STIEBER RSBI150 /STIEBER RSBI100F8 RIZ30G7 /STIEBER RSBI130F8/ RIZ35G7 STIEBER/ RSBI150 F8 RIZ40G7

Needle roller bearings:


1. K series radial needle roller and cage assembiles,
NK series, Non-inner ring needle bearing, light series
NKS, Non-inner ring needle roller bearings, heavy series
RNA49, Non-inner needle roller bearing, sizes 49 series
RNA69, Non-inner needle roller bearings, size 69 series
RNA48, Non-inner needle roller bearings, size 48 series
NKI, with inner ring needle bearings, light series
AXK thrust ball bearing with flat seat.

HK series drawn cup needle roller bearings

RAX series combined needle roller bearings




2. Supporting roller and curve roller bearings:
NUTRseries, NUKRseries, KR series, PWKR series, NATR series, RSTOseries, STOseries, NATV series, CF series.

3. Combined radial bearings:
NKIA series, NKIB series, NX series, NKX series, NKXR series, ZARN series, ZARF series, RAXF series



Transport ways:

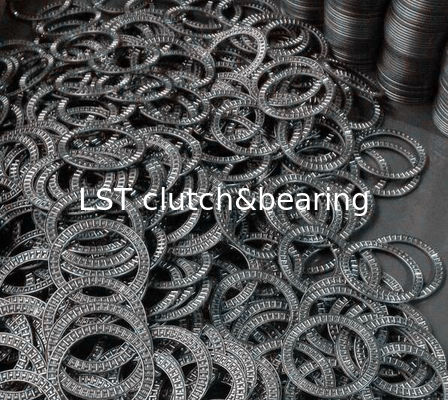

INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 19

Easy communication  ways:



INA design trust needle roller and cage assemblies AXK120155 and 2AS bearings 20





FAQ

A:Will you send me free sample?

B: It is highly encouraged to ask for the samples for quality check.



A:Do you like to serve the client only with small orders?

B:We enjoy to grow up together with all our clients whatever big or small.And WIN-WIN is our objective.



A:Could you accept OEM and customize?
B:YES, we can customize for you according to sample or drawing, but, pls provide us technical data, such as dimension and mark.


A:Is it your company is factory or Trade Company?
B:We have our own factory; our type is factory + trade.


A:How to maintain my bearings?
B:a. Soak your bearings in mineral spririts or paint thinner to remove any grease or particulates;
b. Blowbearing out with compressed air;
c.place a light drop of oil on the bearing;
d.If the bearings feel rough repeat, give the bearing a spin.


A:Could you supply door to door service?
B:Yes, by air and by express (DHL, FEDEX, TNT, ARAMEX,EMS, SF)

Our Advantages

Contact Details
Changzhou Lisongtai Industrial Motion Technology Co.,LtD

Contact Person: Ms. Sun

Tel: +8615895075912

Fax: 86-519-68254183

Send your inquiry directly to us (0 / 3000)
