Product Details:
|
Material: | ST12 | Torrington Model: | No |
---|---|---|---|
ID: | 30mm | OD: | 47mm |
Height: | 2.8/5mm | Cr Dynamic: | 14500N |
Cor Static: | 57000N | Weight: | 13.7/29g |
Application: | Electrical Machinery, Electrical Appliances, Machinery, Furniture, Toys, Printers, |

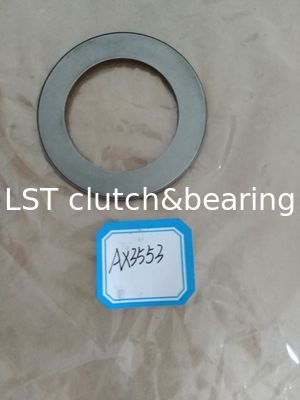

Made in China Bearing Factory Trust Needle Roller and Cage assemblies bearings
Feature
Thrust bearings consist of a thrust cage assembly with a needle roller or cylindrical roller or ball and a thrust washer. Needle roller and cylindrical roller by the thrust cage to maintain and guide. When used with different series of DF thrust bearing washers, many different combinations of bearing configurations are available. Due to the selection of high-precision cylindrical roller (needle roller) increased contact length, making this bearing in a small space to obtain high load capacity and high stiffness. Another advantage is that the gasket can be dispensed with if the adjacent part surfaces are suitable for raceway surfaces and the design is compact. The cylindrical surfaces of the needle rollers and cylindrical rollers used in DF thrust needle roller thrust bearings and thrust cylindrical roller bearings are Shaping the surface, can reduce edge stress, improve service life.
Application
It is dely used in machine tools, metallurgical machinery, textile machinery and printing machinery and other machinery and equipment, and mechanical design can be more compact and smart.
Dimensions
Thrust | Shaft Dia | Bearing | Mass | Housing | Mass | Dimension(mm) | ||
needle roller bearing | (mm) | Washer | Approx (g) | Locating Washer | Approx (g) | d | D | B1 |
AXK0414TN | 4 | AS0414 | 1 | 4 | 14 | 2 | ||
AXK0515TN | 5 | AS0515 | 1 | 5 | 15 | 2 | ||
AXK0614TN | 6 | AS0614 | 1 | 6 | 14 | 2 | ||
AXK0619TN | 6 | AS0619 | 2 | 6 | 19 | 2 | ||
AXK0821TN | 8 | AS0821 | 2 | 8 | 21 | 2 | ||
AXK1024 | 10 | AS1024 | 3 | 10 | 24 | 2 | ||
AXK1226 | 12 | AS1226 | 3 | 12 | 26 | 2 | ||
AXK1528 | 15 | AS1528 | 3 | GS81102 | 8 | 15 | 28 | 2 |
AXK1722 | 17 | AS1722 | 3 | 17 | 22 | 2 | ||
AXK1730 | 17 | AS1730 | 4 | GS81103 | 9 | 17 | 30 | 2 |
AXK2035 | 20 | AS2035 | 5 | GS81104 | 12 | 20 | 35 | 2 |
AXK2542 | 25 | AS2542 | 7 | GS81105 | 19 | 25 | 42 | 2 |
AXK3047 | 30 | AS3047 | 8 | GS81106 | 20 | 30 | 47 | 2 |
AXK3552 | 35 | AS3552 | 9 | GS81107 | 27 | 35 | 52 | 2 |
AXK4060 | 40 | AS4060 | 12 | GS81108 | 37 | 40 | 60 | 3 |
AXK4565 | 45 | AS4565 | 13 | GS81109 | 47 | 45 | 65 | 3 |
AXK5070 | 50 | AS5070 | 14 | GS81110 | 51 | 50 | 70 | 3 |
AXK5578 | 55 | AS5578 | 18 | GS81111 | 82 | 55 | 78 | 3 |
AXK6085 | 60 | AS6085 | 22 | GS81112 | 92 | 60 | 85 | 3 |
AXK6590 | 65 | AS6590 | 24 | GS81113 | 110 | 65 | 90 | 3 |
AXK7095 | 70 | AS7095 | 25 | GS81114 | 120 | 70 | 95 | 4 |
AXK75100 | 75 | AS75100 | 27 | GS81115 | 136 | 75 | 100 | 4 |
AXK80105 | 80 | AS80105 | 28 | GS81116 | 144 | 80 | 105 | 4 |
AXK85110 | 85 | AS85110 | 29 | GS81117 | 151 | 85 | 110 | 4 |
AXK90120 | 90 | AS90120 | 39 | GS81118 | 225 | 90 | 120 | 4 |
AXK100135 | 100 | AS100135 | 50 | GS81120 | 350 | 100 | 135 | 4 |
AXK110145 | 110 | AS110145 | 55 | GS81122 | 385 | 110 | 145 | 4 |
AXK120155 | 120 | AS120155 | 59 | GS81124 | 415 | 120 | 155 | 4 |
AXK130170 | 130 | AS130170 | 65 | GS81126 | 643 | 130 | 170 | 5 |
AXK140180 | 140 | AS140180 | 79 | GS81128 | 749 | 140 | 180 | 5 |
AXK150190 | 150 | AS150190 | 84 | GS81130 | 796 | 150 | 190 | 5 |
AXK160200 | 160 | As160200 | 89 | Gs81132 | 842 | 160 | 200 | 5 |
81102TN | 0.024 | K81102TN | 0.006 | GS81102 | WS81102 | LS1528 | 0.008 | 15 | 16 | 28 | 28 | 9 | 3.5 | 2.75 | 0.3 | |
17 | 81103TN | 0.027 | K81103TN | 0.009 | GS81103 | WS81103 | LSl730 | 0.009 | 17 | 18 | 30 | 30 | 9 | 3.5 | 2.75 | 0.3 |
20 | 81104TN | 0.037 | K81104TN | 0.013 | GS81104 | WS81104 | LS2035 | 0.012 | 20 | 21 | 35 | 35 | 10 | 4.5 | 2.75 | 0.3 |
25 | 81105TN | 0.053 | K81105TN | 0.015 | GS81105 | WS81105 | LS2542 | 0.019 | 25 | 26 | 42 | 42 | 11 | 5 | 3 | 0.6 |
30 | 81106TN | 0.057 | K81106TN | 0.017 | GS81106 | WS81106 | LS3047 | 0.02 | 30 | 32 | 47 | 47 | 11 | 5 | 3 | 0.6 |
81206TN | 0.123 | K81206TN | 0.033 | GS81206 | WS81206 | 0.045 | 30 | 32 | 52 | 52 | 16 | 7.5 | 4.25 | 0.6 | ||
89306TN | 0.24 | K89306TN | 0.04 | GS89306 | WS89306 | 0.095 | 30 | 32 | 60 | 60 | 18 | 5.5 | 6.25 | 1 | ||
35 | 81107TN | 0.073 | K81107TN | 0.019 | GS81107 | WS81107 | LS3552 | 0.027 | 35 | 37 | 52 | 52 | 12 | 5 | 3.5 | 0.6 |
81207TN | 0.195 | K81207TN | 0.043 | GS81207 | WS81207 | 0.076 | 35 | 37 | 62 | 62 | 18 | 7.5 | 5.25 | 1 | ||
89307TN | 0.34 | K89307TN | 0.053 | GS89307 | WS89307 | 0.134 | 35 | 37 | 68 | 68 | 20 | 6 | 7 | 1 | ||
40 | 81108TN | 0.105 | K81108TN | 0.031 | GS81108 | WS81108 | LS4060 | 0.037 | 40 | 42 | 60 | 60 | 13 | 6 | 3.5 | 0.6 |
81208TN | 0.249 | K81208TN | 0.081 | GS81208 | WS81208 | 0.084 | 40 | 42 | 68 | 68 | 19 | 9 | 5 | 1 | ||
89308TN | 0.484 | K89308TN | 0.098 | GS89308 | WS89308 | 0.193 | 40 | 42 | 78 | 78 | 22 | 7 | 7.5 | 1 | ||
45 | 81109TN | 0.13 | K81109TN | 0.035 | GS81109 | WS81109 | LS4565 | 0.047 | 45 | 47 | 65 | 65 | 14 | 6 | 4 | 0.6 |
81209TN | 0.287 | K81209TN | 0.085 | GS81209 | WS81209 | 0.101 | 45 | 47 | 73 | 73 | 20 | 9 | 5.5 | 1 | ||
89309TN | 0.615 | K89309TN | 0.121 | GS89309 | WS89309 | 0.247 | 45 | 47 | 85 | 85 | 24 | 7.5 | 8.25 | 1 | ||
50 | 81110TN | 0.14 | K81110TN | 0.038 | GS81110 | WS81110 | LS5070 | 0.051 | 50 | 52 | 70 | 70 | 14 | 6 | 4 | 0.6 |
81210TN | 0.356 | K81210TN | 0.098 | GS81210 | WS81210 | 0.129 | 50 | 52 | 78 | 78 | 22 | 9 | 6.5 | 1 | ||
89310TN | 0.887 | K89310TN | 0.175 | GS89310 | WS89310 | 0.356 | 50 | 52 | 95 | 95 | 27 | 8 | 9.5 | 1.1 | ||
55 | 81111TN | 0.218 | K81111TN | 0.045 | GS81111 | WS81111 | LS5578 | 0.082 | 55 | 57 | 78 | 78 | 16 | 6 | 5 | 0.6 |
81211TN | 0.568 | K81211TN | 0.166 | GS81211 | WS81211 | 0.201 | 55 | 57 | 90 | 90 | 25 | 11 | 7 | 1 | ||
89311TN | 1.18 | K89311TN | 0.195 | GS89311 | WS89311 | 0.485 | 55 | 57 | 105 | 105 | 30 | 9 | 10.5 | 1.1 | ||
60 | 81112TN | 0.266 | K81112TN | 0.082 | GS81112 | WS81112 | LS6085 | 0.092 | 60 | 62 | 85 | 85 | 17 | 7.5 | 4.75 | 1 |
81212TN | 0.642 | K81212TN | 0.176 | GS81212 | WS81212 | 0.233 | 60 | 62 | 95 | 95 | 26 | 11 | 7.5 | 1 | ||
89312TN | 1.26 | K89312TN | 0.21 | GS89312 | WS89312 | 0.517 | 60 | 62 | 110 | 110 | 30 | 9 | 10.5 | 1.1 | ||
89412TN | 2.818 | K89412TN | 0.538 | GS89412 | WS89412 | 1.115 | 60 | 62 | 130 | 130 | 42 | 14 | 14 | 1.5 | ||
65 | 81113TN | 0.31 | K81113TN | 0.09 | GS81113 | WS81113 | LS6590 | 0.11 | 65 | 67 | 90 | 90 | 18 | 7.5 | 5.25 | 1 |
81213TN | 0.721 | K81213TN | 0.185 | GS81213 | WS81213 | 0.268 | 65 | 67 | 100 | 100 | 27 | 11 | 8 | 1 | ||
89313TN | 1.33 | K89313TN | 0.21 | GS89313 | WS89313 | 0.535 | 65 | 67 | 115 | 115 | 30 | 9 | 10.5 | 1.1 | ||
89413TN | 3.52 | K89413TN | 0.72 | GS89413 | WS89413 | 1.4 | 65 | 68 | 140 | 140 | 45 | 15 | 15 | 2 | ||
70 | 81114TN | 0.332 | K81114TN | 0.092 | GS81114 | WS81114 | LS7095 | 0.12 | 70 | 72 | 95 | 95 | 18 | 7.5 | 5.25 | 1 |
81214TN | 0.768 | K81214TN | 0.212 | GS81214 | WS81214 | 0.278 | 70 | 72 | 105 | 105 | 27 | 11 | 8 | 1 | ||
89314TN | 1.82 | K89314TN | 0.29 | GS89314 | WS89314 | 0.8 | 70 | 72 | 125 | 125 | 34 | 10 | 12 | 1.1 | ||
89414TN | 4.18 | K89414TN | 0.76 | GS89414 | WS89414 | 1.73 | 70 | 73 | 150 | 150 | 48 | 16 | 16 | 2 | ||
75 | 81115TN | 0.393 | K81115TN | 0.096 | GS81115 | WS81115 | LS75100 | 0.136 | 75 | 77 | 100 | 100 | 19 | 7.5 | 5.75 | 1 |
81215TN | 0.8 | K81215TN | 0.195 | GS81215 | WS81215 | 0.293 | 75 | 77 | 110 | 110 | 27 | 11 | 8 | 1 | ||
89315TN | 2.23 | K89315TN | 0.375 | GS89315 | WS89315 | 0.97 | 75 | 77 | 135 | 135 | 36 | 11 | 12.5 | 1.5 | ||
89415 | 5.96 | K89415 | 1.78 | GS89415 | WS89415 | 2.09 | 75 | 78 | 160 | 160 | 51 | 17 | 17 | 2 | ||
80 | 81116TN | 0.4 | K81116TN | 0.095 | GS81116 | WS81116 | LS80105 | 0.144 | 80 | 82 | 105 | 105 | 19 | 7.5 | 5.75 | 1 |
81216 TN | 0.9 | K812 16 TN | 0.234 | GS812 16 | WS812 16 | 0.333 | 80 | 82 | 115 | 115 | 28 | 11 | 8.5 | 1 | ||
89316 TN | 2.37 | K893 16 TN | 0.42 | GS893 16 | WS893 16 | 1.02 | 80 | 82 | 140 | 140 | 3 |
WE SUPPLY YOU THE MODELS AS FOLLOWS:
AXK0515 AXK0821 AXK1024 AXK1226 AXK1528 AXK1730 AXK2035 AXK2542 AXK3047 AXK3552 AXK4060 AXK4565 AXK5070 AXK5578 AXK6085 AXK6590 AXK7095 AXK75100 AXK80105 AXK85110 AXK90120 AXK100135 AXK110145 AXK120155/AXK130170/AXK140180/AXK150190 AXK0414TN/AXK0515TN/AXK0619TN/AXK0821TN/AXK1024/AXK1226/AXK1528/AXK1730/AXK2035/AXK2542/AXK3047/AXK3552/AXK4060/AXK4565/AXK5070/AXK5578/AXK6085/AXK6590/AXK7095/AXK75100/AXK80105/AXK85110/AXK90120/AXK100135/AXK110145/AXK120155/AXK130170/AXK140180/AXK150190/AXK160200,AXW10/AXW12/AXW15/AXW17/AXW20/AXW25/AXW30/AXW35/AXW40/AXW45/AXW50/AS0414/AS0515/AS0619/AS0821/AS100135/AS1024/AS110145/AS120155/AS1226/AS130170/AS140180/AS150190/AS1528/AS160200/AS1730/AS2035/AS2542/AS3047/AS3552/AS4060/AS4565/AS5070/AS5578/AS6085/AS6590/AS7095/AS75100/AS80105/AS85110/AS90120/AS90120/LS0414/LS0515/LS0619/LS0821/LS100135/LS1024/LS110145/LS120155/LS1226/LS130170/LS140180/LS150190/LS1528/LS160200/LS1730/LS2035/LS2542/LS3047/LS3552/LS4060/LS4565/LS5070/LS5578/LS6085/LS6590/LS7095/LS75100/LS80105/LS85110/LS90120/81102/81103/81104/81105/81106/81107/81108/81109/81110/81111/81112/81113/81114/WS81102/WS81103/WS81104/WS81105/WS81106/WS81107/WS81108/WS81109/WS81110/WS81111//WS81112/WS81113/WS81114/GS81102/GS81103/GS81104/GS81105/GS81106/GS81107/GS81108/GS81109/GS81110/GS81111/GS81112/GS81113/GS81114 WS81115/WS81116/WS81117/WS81118/WS81119/WS81120/WS81122/WS81124/WS81126/WS81128/WS81130/WS81132 GS81115/GS81116/GS81117/GS81118/GS81120/GS81122/GS81124/GS81128/GS81130/GS81132/GS81134
Company Information
Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
Workshop
Manufacture Processing
Application Industry:
Testing equipment
Main products
1. One Way Bearing
1. Overrunning clutch
for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.
2. Indexing clutch
which turns a shaft step by step, thus achieving indexed material feed or a variable speed.
3. Backstop
to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake
2.Needle roller bearings
Our advanges:
Our package:
R&B Certifications:
R&B manufactured Models
1. One way clutch MG Series MG300/MG400/MG500/MG600/MG700/MG750/MG800/MG900/MG100/MG1100/MG1200/MG13
2. One way clutch MZ Series MZ15/MZ17/MZ20/MZ30-22/MZ30-25/MZ30/MZ35/MZ45-40/MZ45-40/MZ60-50/MZ60-55/MZ60/MZ70-65/MZ70
3. B200 series cam clutch
B203/B204/B205/B206/B207/B208/B209/B210/B211/B212/B213/B214
4. BB series one way bearings
BB15/BB17/BB20/BB25/BB30/BB35/BB40/BB15-1K-K/BB17-1K-K/BB20-1K-K/BB25-1K-K /BB30-1K-K/BB35-1K-K/BB40-1K-K/BB15-2K-K/BB17-2K-K/BB20-2K-K/BB25-2K-K /BB30-2K-K/BB35-2K-K/BB40-2K-K/
5. CSK series one way bearings
CSK8/CSK12/CSK15/CSK15-1K/CSK15-2K/CSK17/CSK17P/CSK17PP/CSK20/CSK20P/CSK20PP/CSK25/CSK25P/CSK25PP/CSK30/CSK30P/CSK30PP/CSK35/CSK35P/CSK35PP/CSK40/CSK40-1K/CSK40-2K/CSK8-RS/CSK35-2RS/CSK12-2RS/SK40-2RS/CSK15-2RS/CSK20P-2RS/CSK17-2RS /CSK25P-2RS CSK20-2RS/CSK30P-2RS CSK25-2RS /CSK30PP-2RS CSK30-2RS
6. GFK series one way clutch bearings
GFK20/GFK25 /GFK30 /GFK35 /GFK40/GFK45 / GFK50
7. DC series sprag freewheel cage one way clutch
DC2222G /DC2776/ DC2222G /DC3175 (3C) DC2776 /DC3175A DC3175 (3C) /DC3034/ DC3175A
DC3809A/ DC3034 /DC3809A(3C) /DC3809A /DC4127 /DC3809A(3C) /DC4127
DC5476A/ DC4972 (4C) /DC5476A (4C) /DC5476A/ DC5476B/ DC5476A
8. BWC BW. X.BWX series cam clutch
BW-13161/BW-13167/BW-13167MZ/BW-13214/BW-13214/BW-13231/BW-13243/BW-13244/BW-13255/BWC-13168/BWC-13219A/BWC-13229/BWX/BWC/X/RC series freewheel cage overrunning clutch
BWX134939/BWX13219/BWX132640/BWC13230/BWC13244/BWX132909/BWX133339/BWC13167/BWC13239/BWC13168/BWX13261/BWX133403 X133400B /X133400/ X133401 X133402 /X133403 X134398 /X134954/ X135005/ X135006/ X135036/ X135041/ X135052 /X135067 RC061008 /RC081208 RC101410/ RC121610
9. RSBW series one way clutches
RSBW25/ RSBW30/RSBW35/ RSBW40/RSBW45/RSBW50/RSBW55/RSBW60
RSBW65/RSBW70/RSBW75/RSBW80/RSBW85/RSBW90
10. PB series one way clutches
PB3/PB5/PB6/PB8/PB10/PB12/PB14
11. TSS Freewheels sprag one way clutch
TSS8/TSS10/TSS12/TSS15/TSS20/TSS25/TSS30/TSS35/TSS40/TSS45/TSS50/TSS60
12. TFS series cam clutches
TFS12/TFS15/TFS17/TFS20/TFS25/TFS30/TFS35/TFS40/TFS45/TFS50/TFS60/TFS70/TFS8/TFS90
13. AS(NSS or TSS)series one way clutch
TSS8 AS8 NSS8/ TSS10 AS10 NSS10/ TSS12 AS12 NSS12/TSS15 AS15 NSS15/
TSS20 AS20 NSS20/ TSS25 AS25 NSS25/ TSS30 AS30 NSS30/ TSS35 AS35
14. ASNU(NFS or TFS) series one way clutch
TFS12 ASNU12 NFS12/ TFS15 ASNU15 NFS15/ TFS17 ASNU17 NFS17/ TFS20 ASNU20NFS20/TFS25 ASNU25 NFS25/TFS30 ASNU30 NFS30/TFS35 ASNU35
15. NF roller type one way clutch
STIEBER NF8 GFRN55/STIEBER NF12 GFRN60 /STIEBER NF15 GFRN70/
STIEBER NF20 GFRN80/STIEBER NF25 GFRN90/STIEBER NF30 GFRN100
16. AE roller type one way clutch
STIEBER AE8/STIEBER AE12/ STIEBER AE15/ STIEBER AE20/ STIEBER AE25/ STIEBER AE30/ STIEBER AE35/ STIEBER AE40/ STIEBER AE45/ STIEBER AE50/STIEBER AE55/ STIEBER AE60/
17. AA roller type one way clutch
STIEBER AA20/ STIEBER AA25/ STIEBER AA30/STIEBER AA35 /STIEBER AA40/STIEBER AA45/ STIEBER AA50/STIEBER AA55/STIEBER AA60/STIEBER AA70/ STIEBER AA80/STIEBER AA90/
STIEBER AA100/ STIEBER AA120/ STIEBER AA150/
18.GFRGFRN series miler overrunning clutch
GFR12/GFR15/GFR20/ GFR25/GFR30/ GFR35/GFR40/GFR45/GFR50/GFR55/GFR60/GFR70
19.FE series freewheel one way clutch
FE448 /FE443 /FE422/FE423/FE428/FE427/FE432/FE433/FE453 /FE437
20. One way clucth CKA Series bearngs: CK-A1542/CK-A1747/CK-A2052/CK-A2562/CK-A3072/CK-A3580/CK-A4090/CK-A45100/CK-A50110/CK-A60130
21. Drawn cup needle Roller one way HF0406/HF0612/HF0812/HF1012/HF1216HF1416/HF1616/HF1816/HF2016/HF25
22.KI series:KI196
23.HYCS cam clutch :HYC8S/HYC10S/HYC12S/HYC15S/HYC20S/HYC25S/HYC30S/HYC35S/HYC40S/HYC45S/HYC50S/HYC60S
24.LD series one way clutch:LD04/LD05/LD06/LD07/LD08
25.MA series cam clutch:MA20/MA30
26.MI series cam clutch :MI300/MI400/MI500/MI600/MI700/MI750/MI800/MI900/MI1000/MI1100/MI1200/MI1300
27.MZEUseries one way cam clutch :MZEU12K/MZEU15K/MZEU20K/MZEU25K/MZEU30K/MZEU35K/MZEU40K/MZEU45K/MZEU50K/MZEU55K/MZEU60K/MZEU70K/MZEU80K/MZEU90/MZEU100/MZEU130/MZEU150
28.BR series cam clutch BR20/BR25/BR30/BR35/BR40/BR45/BR50/BR60/BR71/BR80/BR90/BR100/BR130/BR150/BR180/BR190/BR220/BR240/
29.BSEU cam clutch BSEU40-20/BSEU40-25/BSEU40-30/BSEU40-35/BSEU40-40/BSEU70-45/BSEU70-50/BSRU70-55/BSEU70-60/BSEU70-65/BSEU70-70/BSEU90-75/BSEU90-80/BSEU90-85/BSEU90-90
30.BST cam clutch BST30/BST50/BST65/BST75/BST85/BST95/BST110/BST135/BST160/BST200/BST220/BST250/BST270/BST300/BST335/BST350/BST425/BST450
31.HYC series
HYC8C/HYC12C/HYC15C/HYC17C/HYC20C/HYC25C/HYC30C/HYC35C/HYC40C/HYC45C/HYC50C/HYC60C/HYC70C/HYC80C/HYC90C
32. CLD series one way bearings CLD04-09-06/CLD04-10-16/CLD04-13-3.1/CLD06-12-06/CLD06-16-3.5/CLD08-16-5.5/CLD08-16-09/
34.AV series backstop one way clutch
STIEBER AV20,STIEBER AV25,STIEBER AV30,STIEBER AV35,STIEBER AV40, STIEBER AV45,STIEBER AV50,STIEBER AV55,STIEBER AV60,STIEBER AV70,
STIEBER AV80,STIEBER AV90,STIEBER AV100,STIEBER AV110,STIEBER AV120
35.RSCI series one way clutch
RSCI20/STIEBER RSCI25/STIEBER RSCI30/STIEBER RSCI35/STIEBER RSCI40/ RSCI45/STIEBER RSCI50/STIEBER RSCI60/STIEBER RSCI70/STIEBER RSCI80/ STIEBER RSCI80M/STIEBER RSCI90/STIEBER RSCI90M/STIEBER RSCI100/STIEBER RSCI100M/ STIEBER RSCI130/STIEBER RSCI180/STIEBER RSCI180M/STIEBER RSCI180II/ STIEBER RSCI180II-M/STIEBER RSCI220/STIEBER RSCI220M/STIEBER RSCI220II/ STIEBER RSCI220II-M/STIEBER RSCI240/STIEBER RSCI240M/STIEBER RSCI240II/ STIEBER RSCI240II-M/STIEBER RSCI260/STIEBER RSCI260M/STIEBER RSCI260II/ STIEBER RSCI260II-M/STIEBER RSCI300/STIEBER RSCI300M/STIEBER RSCI300II
36.RSBI series
RSBI60/RSBI70/RSBI80/RSBI90/RSBI100/RSBI130/RSBI150/RSBI180/RSBI190/RSBI220/RSBI240STIEBER/RSBI100 /RIZ100G4 /STIEBER RSBI130 /RIZ130G4 /STIEBER RSBI150 /STIEBER RSBI100F8 RIZ30G7 /STIEBER RSBI130F8/ RIZ35G7 STIEBER/ RSBI150 F8 RIZ40G7
Needle roller bearings:
1. K series radial needle roller and cage assembiles,
NK series, Non-inner ring needle bearing, light series
NKS, Non-inner ring needle roller bearings, heavy series
RNA49, Non-inner needle roller bearing, sizes 49 series
RNA69, Non-inner needle roller bearings, size 69 series
RNA48, Non-inner needle roller bearings, size 48 series
NKI, with inner ring needle bearings, light series
AXK thrust ball bearing with flat seat.
HK series drawn cup needle roller bearings
RAX series combined needle roller bearings
2. Supporting roller and curve roller bearings:
NUTRseries, NUKRseries, KR series, PWKR series, NATR series, RSTOseries, STOseries, NATV series, CF series.
3. Combined radial bearings:
NKIA series, NKIB series, NX series, NKX series, NKXR series, ZARN series, ZARF series, RAXF series
Transport ways:
Easy communication ways:
FAQ
A:Will you send me free sample?
B: It is highly encouraged to ask for the samples for quality check.
A:Do you like to serve the client only with small orders?
B:We enjoy to grow up together with all our clients whatever big or small.And WIN-WIN is our objective.
A:Could you accept OEM and customize?
B:YES, we can customize for you according to sample or drawing, but, pls provide us technical data, such as dimension and mark.
A:Is it your company is factory or Trade Company?
B:We have our own factory; our type is factory + trade.
A:How to maintain my bearings?
B:a. Soak your bearings in mineral spririts or paint thinner to remove any grease or particulates;
b. Blowbearing out with compressed air;
c.place a light drop of oil on the bearing;
d.If the bearings feel rough repeat, give the bearing a spin.
A:Could you supply door to door service?
B:Yes, by air and by express (DHL, FEDEX, TNT, ARAMEX,EMS, SF)
