one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS

one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS
one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS

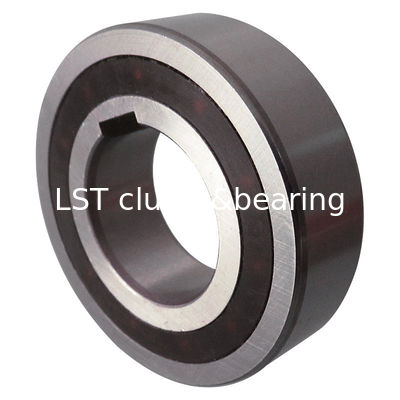

Large Image :  one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS

Product Details:
Place of Origin: Jiangsu,China
Brand Name: R&B
Certification: SGS
Model Number: CSK35
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD1.00-3.00/pcs
Packaging Details: single box paacking
Delivery Time: 5 -10 work days
Supply Ability: 100000pcs/per month

one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS

Description
Material: Gcr15 ID: 35mm
OD: 72mm Height: 17mm,22mm
Weight: 0.3kg Torque Capacity: 175N.M
Application: Printing Machine,textile Machine,Conveying Machinery

Product Description
One Way Clutch Indexing Clutch (CSK CSK-2RS)
one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 0
Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40). It is bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional "nylos" type seals is recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
All the CSK versions are equipped with "formchromed" sprags. This process increases several times the overrunning life time. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if
using the press fit as specified. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C. CSK..2RS is 5 mm wider but is equiped with lip seals to be water splash resistant.

One Way Clutch Indexing Clutch Csk Csk-2RS
Type Size Bearing series   Bearing loads Weight Dragtorque
dynamic static





CSK (KK)
d   TKN1) nmax D L C C0   TR
[mm] [Nm] [min-1] [mm] [mm] [kN] [kN] [kg] [Ncm]
8* - 2.5 15000 22 9 3.28 0.86 0.015 0.5
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 - 325 3000 80 22 15.54 12.25 0.5 7




CSK..2RS
8**   2.5 15000 22 9 3.28 0.86 0.015 0.8
12 - 9.3 10000 32 14 6.1 2.77 0.05 3
15   17 8400 35 16 7.4 3.42 0.07 4
17   30 7350 40 17 7.9 3.8 0.09 5.6
20   50 6000 47 19 9.4 4.46 0.145 6
25   85 5200 52 20 10.7 5.46 0.175 6
30   138 4200 62 21 11.7 6.45 0.27 7.5
35   175 3600 72 22 12.6 7.28 0.4 8.2
40 - 325 3000 80 27 15.54 12.25 0.6 10



one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 2
one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 3



one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 4

Company Information



Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



Workshop

one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 5



Manufacture Processing

one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 6

Application Industry:



one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 7



one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 8

Testing equipment



one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 9



Main products



1. One Way Bearing

one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 10

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings

one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 11





Our advanges:

one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 12

Our package:

one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 13

R&B Certifications:

one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 14

R&B manufactured Models

1. One way clutch MG Series MG300/MG400/MG500/MG600/MG700/MG750/MG800/MG900/MG100/MG1100/MG1200/MG13

2. One way clutch MZ Series MZ15/MZ17/MZ20/MZ30-22/MZ30-25/MZ30/MZ35/MZ45-40/MZ45-40/MZ60-50/MZ60-55/MZ60/MZ70-65/MZ70

3. B200 series cam clutch
B203/B204/B205/B206/B207/B208/B209/B210/B211/B212/B213/B214

4. BB series one way bearings
BB15/BB17/BB20/BB25/BB30/BB35/BB40/BB15-1K-K/BB17-1K-K/BB20-1K-K/BB25-1K-K /BB30-1K-K/BB35-1K-K/BB40-1K-K/BB15-2K-K/BB17-2K-K/BB20-2K-K/BB25-2K-K /BB30-2K-K/BB35-2K-K/BB40-2K-K/


5. CSK series one way bearings
CSK8/CSK12/CSK15/CSK15-1K/CSK15-2K/CSK17/CSK17P/CSK17PP/CSK20/CSK20P/CSK20PP/CSK25/CSK25P/CSK25PP/CSK30/CSK30P/CSK30PP/CSK35/CSK35P/CSK35PP/CSK40/CSK40-1K/CSK40-2K/CSK8-RS/CSK35-2RS/CSK12-2RS/SK40-2RS/CSK15-2RS/CSK20P-2RS/CSK17-2RS /CSK25P-2RS CSK20-2RS/CSK30P-2RS CSK25-2RS /CSK30PP-2RS CSK30-2RS


6. GFK series one way clutch bearings
GFK20/GFK25 /GFK30 /GFK35 /GFK40/GFK45 / GFK50

7. DC series sprag freewheel cage one way clutch
DC2222G /DC2776/ DC2222G /DC3175 (3C) DC2776 /DC3175A DC3175 (3C) /DC3034/ DC3175A
DC3809A/ DC3034 /DC3809A(3C) /DC3809A /DC4127 /DC3809A(3C) /DC4127
DC5476A/ DC4972 (4C) /DC5476A (4C) /DC5476A/ DC5476B/ DC5476A

8. BWC BW. X.BWX series cam clutch
BW-13161/BW-13167/BW-13167MZ/BW-13214/BW-13214/BW-13231/BW-13243/BW-13244/BW-13255/BWC-13168/BWC-13219A/BWC-13229/BWX/BWC/X/RC series freewheel cage overrunning clutch
BWX134939/BWX13219/BWX132640/BWC13230/BWC13244/BWX132909/BWX133339/BWC13167/BWC13239/BWC13168/BWX13261/BWX133403 X133400B /X133400/ X133401 X133402 /X133403 X134398 /X134954/ X135005/ X135006/ X135036/ X135041/ X135052 /X135067 RC061008 /RC081208 RC101410/ RC121610

9. RSBW series one way clutches
RSBW25/ RSBW30/RSBW35/ RSBW40/RSBW45/RSBW50/RSBW55/RSBW60
RSBW65/RSBW70/RSBW75/RSBW80/RSBW85/RSBW90


10. PB series one way clutches
PB3/PB5/PB6/PB8/PB10/PB12/PB14

11. TSS Freewheels sprag one way clutch
TSS8/TSS10/TSS12/TSS15/TSS20/TSS25/TSS30/TSS35/TSS40/TSS45/TSS50/TSS60


12. TFS series cam clutches
TFS12/TFS15/TFS17/TFS20/TFS25/TFS30/TFS35/TFS40/TFS45/TFS50/TFS60/TFS70/TFS8/TFS90

13. AS(NSS or TSS)series one way clutch
TSS8 AS8 NSS8/ TSS10 AS10 NSS10/ TSS12 AS12 NSS12/TSS15 AS15 NSS15/
TSS20 AS20 NSS20/ TSS25 AS25 NSS25/ TSS30 AS30 NSS30/ TSS35 AS35


14. ASNU(NFS or TFS) series one way clutch
TFS12 ASNU12 NFS12/ TFS15 ASNU15 NFS15/ TFS17 ASNU17 NFS17/ TFS20 ASNU20NFS20/TFS25 ASNU25 NFS25/TFS30 ASNU30 NFS30/TFS35 ASNU35

15. NF roller type one way clutch
STIEBER NF8 GFRN55/STIEBER NF12 GFRN60 /STIEBER NF15 GFRN70/
STIEBER NF20 GFRN80/STIEBER NF25 GFRN90/STIEBER NF30 GFRN100


16. AE roller type one way clutch
STIEBER AE8/STIEBER AE12/ STIEBER AE15/ STIEBER AE20/ STIEBER AE25/ STIEBER AE30/ STIEBER AE35/ STIEBER AE40/ STIEBER AE45/ STIEBER AE50/STIEBER AE55/ STIEBER AE60/

17. AA roller type one way clutch
STIEBER AA20/ STIEBER AA25/ STIEBER AA30/STIEBER AA35 /STIEBER AA40/STIEBER AA45/ STIEBER AA50/STIEBER AA55/STIEBER AA60/STIEBER AA70/ STIEBER AA80/STIEBER AA90/
STIEBER AA100/ STIEBER AA120/ STIEBER AA150/

18.GFRGFRN series miler overrunning clutch
GFR12/GFR15/GFR20/ GFR25/GFR30/ GFR35/GFR40/GFR45/GFR50/GFR55/GFR60/GFR70


19.FE series freewheel one way clutch

FE448 /FE443 /FE422/FE423/FE428/FE427/FE432/FE433/FE453 /FE437

20. One way clucth CKA Series bearngs: CK-A1542/CK-A1747/CK-A2052/CK-A2562/CK-A3072/CK-A3580/CK-A4090/CK-A45100/CK-A50110/CK-A60130

21. Drawn cup needle Roller one way HF0406/HF0612/HF0812/HF1012/HF1216HF1416/HF1616/HF1816/HF2016/HF25


22.KI series:KI196


23.HYCS cam clutch :HYC8S/HYC10S/HYC12S/HYC15S/HYC20S/HYC25S/HYC30S/HYC35S/HYC40S/HYC45S/HYC50S/HYC60S

24.LD series one way clutch:LD04/LD05/LD06/LD07/LD08

25.MA series cam clutch:MA20/MA30

26.MI series cam clutch :MI300/MI400/MI500/MI600/MI700/MI750/MI800/MI900/MI1000/MI1100/MI1200/MI1300

27.MZEUseries one way cam clutch :MZEU12K/MZEU15K/MZEU20K/MZEU25K/MZEU30K/MZEU35K/MZEU40K/MZEU45K/MZEU50K/MZEU55K/MZEU60K/MZEU70K/MZEU80K/MZEU90/MZEU100/MZEU130/MZEU150

28.BR series cam clutch BR20/BR25/BR30/BR35/BR40/BR45/BR50/BR60/BR71/BR80/BR90/BR100/BR130/BR150/BR180/BR190/BR220/BR240/

29.BSEU cam clutch BSEU40-20/BSEU40-25/BSEU40-30/BSEU40-35/BSEU40-40/BSEU70-45/BSEU70-50/BSRU70-55/BSEU70-60/BSEU70-65/BSEU70-70/BSEU90-75/BSEU90-80/BSEU90-85/BSEU90-90

30.BST cam clutch BST30/BST50/BST65/BST75/BST85/BST95/BST110/BST135/BST160/BST200/BST220/BST250/BST270/BST300/BST335/BST350/BST425/BST450


31.HYC series
HYC8C/HYC12C/HYC15C/HYC17C/HYC20C/HYC25C/HYC30C/HYC35C/HYC40C/HYC45C/HYC50C/HYC60C/HYC70C/HYC80C/HYC90C


32. CLD series one way bearings CLD04-09-06/CLD04-10-16/CLD04-13-3.1/CLD06-12-06/CLD06-16-3.5/CLD08-16-5.5/CLD08-16-09/

34.AV series backstop one way clutch
STIEBER AV20,STIEBER AV25,STIEBER AV30,STIEBER AV35,STIEBER AV40, STIEBER AV45,STIEBER AV50,STIEBER AV55,STIEBER AV60,STIEBER AV70,
STIEBER AV80,STIEBER AV90,STIEBER AV100,STIEBER AV110,STIEBER AV120

35.RSCI series one way clutch
RSCI20/STIEBER RSCI25/STIEBER RSCI30/STIEBER RSCI35/STIEBER RSCI40/ RSCI45/STIEBER RSCI50/STIEBER RSCI60/STIEBER RSCI70/STIEBER RSCI80/ STIEBER RSCI80M/STIEBER RSCI90/STIEBER RSCI90M/STIEBER RSCI100/STIEBER RSCI100M/ STIEBER RSCI130/STIEBER RSCI180/STIEBER RSCI180M/STIEBER RSCI180II/ STIEBER RSCI180II-M/STIEBER RSCI220/STIEBER RSCI220M/STIEBER RSCI220II/ STIEBER RSCI220II-M/STIEBER RSCI240/STIEBER RSCI240M/STIEBER RSCI240II/ STIEBER RSCI240II-M/STIEBER RSCI260/STIEBER RSCI260M/STIEBER RSCI260II/ STIEBER RSCI260II-M/STIEBER RSCI300/STIEBER RSCI300M/STIEBER RSCI300II

36.RSBI series
RSBI60/RSBI70/RSBI80/RSBI90/RSBI100/RSBI130/RSBI150/RSBI180/RSBI190/RSBI220/RSBI240STIEBER/RSBI100 /RIZ100G4 /STIEBER RSBI130 /RIZ130G4 /STIEBER RSBI150 /STIEBER RSBI100F8 RIZ30G7 /STIEBER RSBI130F8/ RIZ35G7 STIEBER/ RSBI150 F8 RIZ40G7

Needle roller bearings:


1. K series radial needle roller and cage assembiles,
NK series, Non-inner ring needle bearing, light series
NKS, Non-inner ring needle roller bearings, heavy series
RNA49, Non-inner needle roller bearing, sizes 49 series
RNA69, Non-inner needle roller bearings, size 69 series
RNA48, Non-inner needle roller bearings, size 48 series
NKI, with inner ring needle bearings, light series
AXK thrust ball bearing with flat seat.

HK series drawn cup needle roller bearings

RAX series combined needle roller bearings




2. Supporting roller and curve roller bearings:
NUTRseries, NUKRseries, KR series, PWKR series, NATR series, RSTOseries, STOseries, NATV series, CF series.

3. Combined radial bearings:
NKIA series, NKIB series, NX series, NKX series, NKXR series, ZARN series, ZARF series, RAXF series



Transport ways:

one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 15

Easy communication ways:



one way sprag clutch ball bearings CSK35/CSK35P/CSK35PP/CSK....2RS 16





FAQ

A:Will you send me free sample?

B: It is highly encouraged to ask for the samples for quality check.



A:Do you like to serve the client only with small orders?

B:We enjoy to grow up together with all our clients whatever big or small.And WIN-WIN is our objective.



A:Could you accept OEM and customize?
B:YES, we can customize for you according to sample or drawing, but, pls provide us technical data, such as dimension and mark.


A:Is it your company is factory or Trade Company?
B:We have our own factory; our type is factory + trade.


A:How to maintain my bearings?
B:a. Soak your bearings in mineral spririts or paint thinner to remove any grease or particulates;
b. Blowbearing out with compressed air;
c.place a light drop of oil on the bearing;
d.If the bearings feel rough repeat, give the bearing a spin.


A:Could you supply door to door service?
B:Yes, by air and by express (DHL, FEDEX, TNT, ARAMEX,EMS, SF)
