Product Details:
|
Sprag Material: | Gcr15 | Model: | DC55.25T |
---|---|---|---|
Application: | Hydraulic Rheostat,textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks | ID: | 58mm |
OD: | 70mm | Height: | 11.5mm |
Torqure Capacity: | 500N.M | Weight: | 0.06kg/pcs |
Cage Material: | ST 12 | Hardness: | HRC60-62 |
Surface Treatment: | Nitridation |

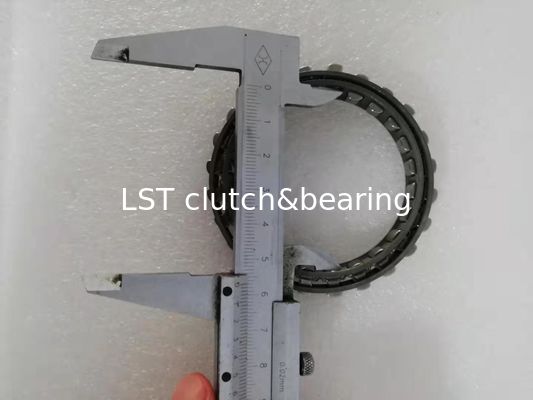

Changzhou Renben Bearing Factory DC One Way Bearing
Data Sheet
Item | DC |
Outer Diameter | 38.885-142.88mm |
Bore Size | 22.225-123.881 mm |
Norminal Torque | 63-4785 Nm |
Weight | 0.03-0.4 kg |
Sprags Quantity | 12-44 |
Overrunning Speed(outer race) | 750-4300 min-1 |
Overrunning Speed (inner race) | 1500-8600 min-1 |
Precision Rate | P6 |
Port | Shanghai;Ningbo |
Delivery Time | 7-10 days |
Feature
Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.
The DC type version-N accepts all types of lubricants currently used in the power transmis-sion equipement.
-Tolearance
The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly as shown on following data sheet.
-Hardness
Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0, 6 mm minimum.
Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA.
Maximum taper between races: 0, 007 mm for 25 mm width.
Different Sizes for Your Reference
DC series
Type | Drag torque | Size(mm) | Number of clips | |||||
Tkn(NM) | a | c | sprag space | e | d | b | ||
DC2222G | 50 | 22.225 | 38.885 | 8.33 | 10 | 50 | 17 | |
DC2776 | 95 | 27.762 | 44.422 | 8.33 | 13.5 | 58 | 21 | |
DC3034 | 99 | 30.34 | 47 | 8.33 | 13.5 | 62 | 23 | |
DC3175(3C) | 127 | 31.75 | 48.41 | 8.33 | 13.5 | 63 | 24 | 3 |
DC3809A | 220 | 38.092 | 54.752 | 8.33 | 16 | 71 | 29 | |
DC4127(3C) | 179 | 41.275 | 57.935 | 8.33 | 13.5 | 75 | 32 | 3 |
DC4445A | 290 | 44.45 | 61.11 | 8.33 | 16 | 79 | 34 | |
DC4972(4C) | 245 | 49.721 | 66.381 | 8.33 | 13.5 | 86 | 38 | 4 |
DC5476A | 420 | 54.765 | 71.425 | 8.33 | 16 | 92 | 42 | |
DC5476A(4C) | 420 | 54.765 | 71.425 | 8.33 | 16 | 92 | 42 | 4 |
DC5476B(4C) | 615 | 54.765 | 71.425 | 8.33 | 21 | 92 | 42 | 4 |
DC5476C(4C) | 792 | 54.765 | 71.425 | 8.33 | 25.4 | 92 | 42 | 4 |
DC5776A | 483 | 57.76 | 74.42 | 8.33 | 16 | 98 | 44 | |
DC6334B | 645 | 63.34 | 80 | 8.33 | 21 | 104 | 50 | |
DC7221(5C) | 540 | 72.217 | 88.877 | 8.33 | 13.5 | 115 | 56 | 5 |
DC7221B | 1023 | 72.217 | 88.877 | 8.33 | 21 | 115 | 56 | |
DC7221B(5C) | 1023 | 72.217 | 88.877 | 8.33 | 21 | 115 | 56 | 5 |
DC7969C(5C) | 1630 | 79.698 | 96.358 | 8.33 | 25.4 | 124 | 61 | 5 |
DC8334C | 1645 | 83.34 | 100 | 8.33 | 25.4 | 132 | 65 | |
DC8729A | 1000 | 87.29 | 103.96 | 8.33 | 16 | 134 | 67 | |
DC10323A(3C) * | 1290 | 103.231 ** | 119.891 | 8.33 | 16 | 155 | 80 | 3 |
DC12334C * | 3840 | 123.34 ** | 140 | 8.33 | 25.4 | 184 | 96 | |
DC12388C(11C) | 3900 | 123.881 | 142.88 | 9.5 | 25.4 | 196 | 96 | 11 |
Cage Freewheels BWX series
for assembly with inner and outer ring
with sprags
Features
Cage Freewheels BWX are sprag freewheels to be installed between customer-supplied inner
and outer rings. The freewheels BWX are used as:
Backstops
Overrunning Clutches
Indexing Freewheels
Nominal torques up to 4 900 Nm.
Freewheel Size | Type | Nominal t orque | J | D | B | K | Sprags Quantity | Drag strips | Brake clips | Design as ill. | Weight |
MN | +0,008 | ±0,013 mm | mm | mm | Quantity | Quantity | kg | ||||
Nm | -0,005 mm | ||||||||||
BWX133590A | Disengaging | 63 | 22,225 | 38,887 | 10,0 | 44,0 | 12 | 109-2 | 0,03 | ||
BWX13143A | Engaging | 120 | 27,767 | 44,425 | 13,5 | 51,0 | 14 | 109-2 | 0,06 | ||
BWX133392 | Disengaging | 280 | 38,092 | 54,750 | 16,0 | 71,0 | 18 | 109-3 | 0,09 | ||
BWX1310145 | Disengaging | 180 | 41,275 | 57,937 | 13,5 | 74,2 | 14 | 3 | 109-2 | 0,07 | |
BWX132909A | Disengaging | 360 | 44,450 | 61,112 | 16,0 | 78,5 | 20 | 2 | 3 | 109-2 | 0,10 |
BWX133339 | Disengaging | 310 | 49,721 | 66,383 | 13,5 | 85,0 | 22 | 2 | 4 | 109-2 | 0,09 |
BWX1310003 | Disengaging | 310 | 49,721 | 66,383 | 13,5 | 85,0 | 22 | 4 | 109-2 | 0,09 | |
BWX137222 | Engaging | 570 | 49,721 | 66,383 | 19,0 | 85,0 | 22 | 109-2 | 0,12 | ||
BWX1310445 | Disengaging | 400 | 54,765 | 71,427 | 13,5 | 91,7 | 24 | 109-2 | 0,09 | ||
BWX1310172 | Engaging | 540 | 54,765 | 71,427 | 16,0 | 91,7 | 24 | 109-2 | 0,12 | ||
BWX1310226 | Disengaging | 520 | 54,765 | 71,427 | 16,0 | 91,7 | 24 | 2 | 4 | 109-2 | 0,12 |
BWX136709 | Engaging | 770 | 54,765 | 71,427 | 21,0 | 91,7 | 24 | 3 | 10 | 109-2 | 0,16 |
BWX1310147 | Disengaging | 1 000 | 54,765 | 71,427 | 25,4 | 91,7 | 24 | 3 | 8 | 109-2 | 0,20 |
BWX136324 | Engaging | 600 | 57,760 | 74,427 | 19,0 | 95,0 | 26 | 109-3 | 0,14 | ||
BWX1310080 | Disengaging | 670 | 72,217 | 88,882 | 13,5 | 115,0 | 30 | 4 | 109-2 | 0,12 | |
BWX13168 | Engaging | 1 300 | 72,217 | 88,882 | 21,0 | 115,0 | 30 | 109-3 | 0,20 | ||
BWX134012 | Engaging | 1 300 | 72,217 | 88,882 | 21,0 | 115,0 | 30 | 4 | 10 | 109-3 | 0,20 |
BWX137322 | Disengaging | 2 000 | 79,6982 | 96,363 | 25,4 | 124,0 | 34 | 5 | 12 | 109-2 | 0,28 |
BWX138316 | Disengaging | 2 960 | 83,5972 | 102,596 | 25,4 | 131,6 | 34 | 5 | 12 | 109-2 | 0,30 |
BWX13261A1 | Disengaging | 1 600 | 103,2312 | 119,893 | 16,0 | 154,0 | 40 | 6 | 10 | 109-3 | 0,19 |
BWX13236 | Disengaging | 1 700 | 117,3912 | 136,391 | 16,0 | 175,3 | 30 | 5 | 6 | 109-3 | 0,25 |
BWX133403B | Engaging | 4 900 | 123,8812 | 142,880 | 25,4 | 188,0 | 44 | 11 | 109-2 | 0,46 |
Disengaging
When the outer ring is rotating the centrifugal force causes the sprags to lift off from the inner
race. This reduces wear during freewheeling operation.
Engaging
When the outer ring is rotating the centrifugal force presses the sprags against the inner ring.
This enhances the ability of the sprags to engage immediately when torque is applied.
Drag strips
To reduce wear during freewheeling operation between sprags and the inner race, drag strips
made from wear-resistant beryllium copper alloy are attached to the inner cage. This results in increased friction between inner cage and inner race. This counteracts individual sprag activation during freewheeling operation, thereby greatly reducing sprag pressure on the inner race.
Brake clips
Some freewheel sizes are available with brake clips fitted on the outer cage to prevent further
automatic rotation of the Cage Freewheel during rapid acceleration and deceleration of
Type DC BWC BWX is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.
BW BWC X series sprag freewheel clutches
Type | Inside shaft Diameter | Outside Shaft Diameter | Maximum Width | Rated Drag Torque | ||
Di | Sprag Space | De | Sprag Space | B | N.M (kgf.m) | |
X-135006 | 54.572 | +0.008-0.005 | 71.211 | ±0.013 | 20.5 | 799 (81.5) |
BW-13231 | 54.765 |
- |
71.427 |
- |
13.5 | 402 (41.0) |
BW-13214 | 15.9 | 363 (37.0) | ||||
BW-13167 | 15.9 | 569 (58.0) | ||||
BW-13209 | 57.760 |
- |
74.427 |
- |
13.5 | 554 (56.5) |
BWC-13239B | 15.9 | 711 (72.5) | ||||
BW-13238 | 21.0 | 1050 (107) | ||||
X-133401 | 59.538 | - | 76.200 | - | 25.4 | 1350 (138) |
X-135402C | 68.600 | - | 85.262 | - | 11.7 | (56.5) |
BW-13243 | 72.217 |
- |
88.882 |
- |
13.5 | 637 (65.0) |
BWC-13168 | 21.0 | 1510 (154) | ||||
BWC-13229 | 21.6 | 1325 (135) | ||||
BW-13255 | 26.7 | 1920 (196) | ||||
X-133614C | 83.596 | ±0.013 | 102.555 | - | 25.4 | 3040 (310) |
X-133402 | 85.776 | - | 104.775 | - | 25.4 | 3090 (315) |
BWC-13251 | 103.231 |
- |
119.944 |
- |
15.4 | 789 (80.5) |
BWC-13261 | 15.4 | 1580 (161) | ||||
X-135705 | 137.000 | - | 156.000 | - | 21.0 | (480) |
BWC-13236 | 117.391 | - | 136.390 | - | 15.9 | (204) |
X-133639 | 103.231 | - | 122.230 | - | 25.4 | 4410 (450) |
X-133403 | 123.881 | - | 142.880 | - | 25.4 | 5740 (585) |
Details size: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Company Information
Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
Workshop
Application Industry:
Main products
1. One Way Bearing
1. Overrunning clutch
for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.
2. Indexing clutch
which turns a shaft step by step, thus achieving indexed material feed or a variable speed.
3. Backstop
to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake
2.Needle roller bearings
Applications:
Backstop
A Backstop application is where rotation
is allowed in one direction and stopped in
the opposite.
Application examples:
· Conveyor equipment
· Mixers
· High voltage switches
· Furniture industry
· Turnstiles and revolving doors
· Geared motors
· Winches
· Elevators
· Cranes
· Strap/belt tighteners
· Bucket conveyors
· Belt reversing locks
· Fans
· Automatic doors (subway)
· Fire damper flaps
· Aviation technology
· Roller plants
· Summer skiing
Indexing clutch
A repeated drive then idle motion will
be transferred to the driven side, step by
step, as rotary motion in one direction (the
clamping direction).
Application examples:
·Paper processing (advance)
· Seeding machines
· Staplers (staples)
· Conveyor belts (drive)
· Ratchets
· Ratchet wrenches
· Roller advance
· Installation tools
· Automation technology
Overrunning clutch
If the speed of the driven side exceeds the
speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.
Application examples:
·Copier machines
· Printing machines
· Conveyor equipment
· Transport equipment (speed matching)
· Starters for combustion engines
· Ergometers
· E-bikes
· Bicycle hubs
· Starters
· Emergency power aggregates
· Generators
· Hybrid applications (E-mobility)
· Palletizing and storage systems
· Model helicopters
· Hand operated sirens
· Roller coasters
· Washing systems
· Continuous ovens
· Compressors
· Compensating gearboxes
· Gas turbine drives
· Pump drives
· Belt drives
· Wheelchairs
R&B manufactured Models
1. One way clutch MG Series MG300/MG400/MG500/MG600/MG700/MG750/MG800/MG900/MG100/MG1100/MG1200/MG13
2. One way clutch MZ Series MZ15/MZ17/MZ20/MZ30-22/MZ30-25/MZ30/MZ35/MZ45-40/MZ45-40/MZ60-50/MZ60-55/MZ60/MZ70-65/MZ70
3. B200 series cam clutch
B203/B204/B205/B206/B207/B208/B209/B210/B211/B212/B213/B214
4. BB series one way bearings
BB15/BB17/BB20/BB25/BB30/BB35/BB40/BB15-1K-K/BB17-1K-K/BB20-1K-K/BB25-1K-K /BB30-1K-K/BB35-1K-K/BB40-1K-K/BB15-2K-K/BB17-2K-K/BB20-2K-K/BB25-2K-K /BB30-2K-K/BB35-2K-K/BB40-2K-K/
5. CSK series one way bearings
CSK8/CSK12/CSK15/CSK15-1K/CSK15-2K/CSK17/CSK17P/CSK17PP/CSK20/CSK20P/CSK20PP/CSK25/CSK25P/CSK25PP/CSK30/CSK30P/CSK30PP/CSK35/CSK35P/CSK35PP/CSK40/CSK40-1K/CSK40-2K/CSK8-RS/CSK35-2RS/CSK12-2RS/SK40-2RS/CSK15-2RS/CSK20P-2RS/CSK17-2RS /CSK25P-2RS CSK20-2RS/CSK30P-2RS CSK25-2RS /CSK30PP-2RS CSK30-2RS
6. GFK series one way clutch bearings
GFK20/GFK25 /GFK30 /GFK35 /GFK40/GFK45 / GFK50
7. DC series sprag freewheel cage one way clutch
DC2222G /DC2776/ DC2222G /DC3175 (3C) DC2776 /DC3175A DC3175 (3C) /DC3034/ DC3175A
DC3809A/ DC3034 /DC3809A(3C) /DC3809A /DC4127 /DC3809A(3C) /DC4127
DC5476A/ DC4972 (4C) /DC5476A (4C) /DC5476A/ DC5476B/ DC5476A
8. BWC BW. X.BWX series cam clutch
BW-13161/BW-13167/BW-13167MZ/BW-13214/BW-13214/BW-13231/BW-13243/BW-13244/BW-13255/BWC-13168/BWC-13219A/BWC-13229/BWX/BWC/X/RC series freewheel cage overrunning clutch
BWX134939/BWX13219/BWX132640/BWC13230/BWC13244/BWX132909/BWX133339/BWC13167/BWC13239/BWC13168/BWX13261/BWX133403 X133400B /X133400/ X133401 X133402 /X133403 X134398 /X134954/ X135005/ X135006/ X135036/ X135041/ X135052 /X135067 RC061008 /RC081208 RC101410/ RC121610
9. RSBW series one way clutches
RSBW25/ RSBW30/RSBW35/ RSBW40/RSBW45/RSBW50/RSBW55/RSBW60
RSBW65/RSBW70/RSBW75/RSBW80/RSBW85/RSBW90
10. PB series one way clutches
PB3/PB5/PB6/PB8/PB10/PB12/PB14
11. TSS Freewheels sprag one way clutch
TSS8/TSS10/TSS12/TSS15/TSS20/TSS25/TSS30/TSS35/TSS40/TSS45/TSS50/TSS60
12. TFS series cam clutches
TFS12/TFS15/TFS17/TFS20/TFS25/TFS30/TFS35/TFS40/TFS45/TFS50/TFS60/TFS70/TFS8/TFS90
13. AS(NSS or TSS)series one way clutch
TSS8 AS8 NSS8/ TSS10 AS10 NSS10/ TSS12 AS12 NSS12/TSS15 AS15 NSS15/
TSS20 AS20 NSS20/ TSS25 AS25 NSS25/ TSS30 AS30 NSS30/ TSS35 AS35
14. ASNU(NFS or TFS) series one way clutch
TFS12 ASNU12 NFS12/ TFS15 ASNU15 NFS15/ TFS17 ASNU17 NFS17/ TFS20 ASNU20NFS20/TFS25 ASNU25 NFS25/TFS30 ASNU30 NFS30/TFS35 ASNU35
15. NF roller type one way clutch
STIEBER NF8 GFRN55/STIEBER NF12 GFRN60 /STIEBER NF15 GFRN70/
STIEBER NF20 GFRN80/STIEBER NF25 GFRN90/STIEBER NF30 GFRN100
16. AE roller type one way clutch
STIEBER AE8/STIEBER AE12/ STIEBER AE15/ STIEBER AE20/ STIEBER AE25/ STIEBER AE30/ STIEBER AE35/ STIEBER AE40/ STIEBER AE45/ STIEBER AE50/STIEBER AE55/ STIEBER AE60/
17. AA roller type one way clutch
STIEBER AA20/ STIEBER AA25/ STIEBER AA30/STIEBER AA35 /STIEBER AA40/STIEBER AA45/ STIEBER AA50/STIEBER AA55/STIEBER AA60/STIEBER AA70/ STIEBER AA80/STIEBER AA90/
STIEBER AA100/ STIEBER AA120/ STIEBER AA150/
18.GFRGFRN series miler overrunning clutch
GFR12/GFR15/GFR20/ GFR25/GFR30/ GFR35/GFR40/GFR45/GFR50/GFR55/GFR60/GFR70
19.FE series freewheel one way clutch
FE448 /FE443 /FE422/FE423/FE428/FE427/FE432/FE433/FE453 /FE437
20. One way clucth CKA Series bearngs: CK-A1542/CK-A1747/CK-A2052/CK-A2562/CK-A3072/CK-A3580/CK-A4090/CK-A45100/CK-A50110/CK-A60130
21. Drawn cup needle Roller one way HF0406/HF0612/HF0812/HF1012/HF1216HF1416/HF1616/HF1816/HF2016/HF25
22.KI series:KI196
23.HYCS cam clutch :HYC8S/HYC10S/HYC12S/HYC15S/HYC20S/HYC25S/HYC30S/HYC35S/HYC40S/HYC45S/HYC50S/HYC60S
24.LD series one way clutch:LD04/LD05/LD06/LD07/LD08
25.MA series cam clutch:MA20/MA30
26.MI series cam clutch :MI300/MI400/MI500/MI600/MI700/MI750/MI800/MI900/MI1000/MI1100/MI1200/MI1300
27.MZEUseries one way cam clutch :MZEU12K/MZEU15K/MZEU20K/MZEU25K/MZEU30K/MZEU35K/MZEU40K/MZEU45K/MZEU50K/MZEU55K/MZEU60K/MZEU70K/MZEU80K/MZEU90/MZEU100/MZEU130/MZEU150
28.BR series cam clutch BR20/BR25/BR30/BR35/BR40/BR45/BR50/BR60/BR71/BR80/BR90/BR100/BR130/BR150/BR180/BR190/BR220/BR240/
29.BSEU cam clutch BSEU40-20/BSEU40-25/BSEU40-30/BSEU40-35/BSEU40-40/BSEU70-45/BSEU70-50/BSRU70-55/BSEU70-60/BSEU70-65/BSEU70-70/BSEU90-75/BSEU90-80/BSEU90-85/BSEU90-90
30.BST cam clutch BST30/BST50/BST65/BST75/BST85/BST95/BST110/BST135/BST160/BST200/BST220/BST250/BST270/BST300/BST335/BST350/BST425/BST450
31.HYC series
HYC8C/HYC12C/HYC15C/HYC17C/HYC20C/HYC25C/HYC30C/HYC35C/HYC40C/HYC45C/HYC50C/HYC60C/HYC70C/HYC80C/HYC90C
32. CLD series one way bearings CLD04-09-06/CLD04-10-16/CLD04-13-3.1/CLD06-12-06/CLD06-16-3.5/CLD08-16-5.5/CLD08-16-09/
34.AV series backstop one way clutch
STIEBER AV20,STIEBER AV25,STIEBER AV30,STIEBER AV35,STIEBER AV40, STIEBER AV45,STIEBER AV50,STIEBER AV55,STIEBER AV60,STIEBER AV70,
STIEBER AV80,STIEBER AV90,STIEBER AV100,STIEBER AV110,STIEBER AV120
35.RSCI series one way clutch
RSCI20/STIEBER RSCI25/STIEBER RSCI30/STIEBER RSCI35/STIEBER RSCI40/ RSCI45/STIEBER RSCI50/STIEBER RSCI60/STIEBER RSCI70/STIEBER RSCI80/ STIEBER RSCI80M/STIEBER RSCI90/STIEBER RSCI90M/STIEBER RSCI100/STIEBER RSCI100M/ STIEBER RSCI130/STIEBER RSCI180/STIEBER RSCI180M/STIEBER RSCI180II/ STIEBER RSCI180II-M/STIEBER RSCI220/STIEBER RSCI220M/STIEBER RSCI220II/ STIEBER RSCI220II-M/STIEBER RSCI240/STIEBER RSCI240M/STIEBER RSCI240II/ STIEBER RSCI240II-M/STIEBER RSCI260/STIEBER RSCI260M/STIEBER RSCI260II/ STIEBER RSCI260II-M/STIEBER RSCI300/STIEBER RSCI300M/STIEBER RSCI300II
36.RSBI series
RSBI60/RSBI70/RSBI80/RSBI90/RSBI100/RSBI130/RSBI150/RSBI180/RSBI190/RSBI220/RSBI240STIEBER/RSBI100 /RIZ100G4 /STIEBER RSBI130 /RIZ130G4 /STIEBER RSBI150 /STIEBER RSBI100F8 RIZ30G7 /STIEBER RSBI130F8/ RIZ35G7 STIEBER/ RSBI150 F8 RIZ40G7
Needle roller bearings:
1. K series radial needle roller and cage assembiles,
NK series, Non-inner ring needle bearing, light series
NKS, Non-inner ring needle roller bearings, heavy series
RNA49, Non-inner needle roller bearing, sizes 49 series
RNA69, Non-inner needle roller bearings, size 69 series
RNA48, Non-inner needle roller bearings, size 48 series
NKI, with inner ring needle bearings, light series
AXK thrust ball bearing with flat seat.
HK series drawn cup needle roller bearings
RAX series combined needle roller bearings
2. Supporting roller and curve roller bearings:
NUTRseries, NUKRseries, KR series, PWKR series, NATR series, RSTOseries, STOseries, NATV series, CF series.
3. Combined radial bearings:
NKIA series, NKIB series, NX series, NKX series, NKXR series, ZARN series, ZARF series, RAXF series
Contact Person: Ms. Sun
Tel: +8615895075912
Fax: 86-519-68254183
