Product Details:
Place of Origin: Jiangsu,China
Brand Name: LST
Certification: SGS,ISO9001:2008
Model Number: FSO500-28
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD120.00-150.00/pcs
Packaging Details: Industrial packing and commercial packing
Supply Ability: 10000pcs/per month

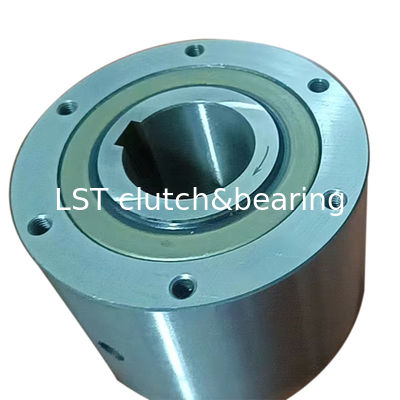

Sprag coupling Freewheel FSO500-28 One Way Overrunning Clutch FSO/HPI /GO series

Description
Material: Gcr15 Model: FSO500-28
Application: ,textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks ID: 28mm
OD: 107.95mm Height: 88.90mm
Torqure Capacity: 1621N.M Weight: 4.8kg/pcs

Product Description
Product Model: FSO(HPI)

Types FSO, FSO-GR, and HPI 300 to 700 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.
Units are delivered oil or grease lubricated according to the type. It is a Formsprag USA design with a ?full sprag complement? that gives a very high torque for a given diameter. Any overload is resisted by a sprag to sprag abutment, avoiding a sprag tilt over. Types FSO and HPI are oil lubricated and use standard shaft lip seals. Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals. Type HPI is specially designed for high speed indexing applications.
One Way Clutch (FSO HPI))



FSO/HPI300-700

Type Size   Overrunning speeds   Lubricant Weight torqueDrag







FSO
FSO-GR
HPI
    FSO FSO-GR dH7-bxh d4) A B C E F G z J K L f FSO FSO..GR HPI   TR
  TKN1) nmax2) nmax3)   min-max   -0.05
[Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]     [mm]   [mm] [ml] [ml] [ml] [kg] [Ncm]
300 379 3000/900 3600/900 15-5x5 12... 19 63.5 76.2 60.45 1.6 28.58 66.67 4 M8 13 M6 0.8 7 10 14 1.6 18
400 407 2800/850 3600/850 18-6x6 12... 22 69.85 88.9 68.07 1.6 30 73 4 M8 13 M6 0.8 10 20 20 2.7 27
500 1621 2500/800 3000/800 30-8x7 19... 33 88.9 107.95 85.73 1.6 45 92 4 M8 16 M6 1.5 22 35 35 4.8 31
        40-12x8
600 3105 2200/750 2400/750 45-14x9 24... 57 95.25 136.525 92.2 1.6 63.5 120.6 6 M8 16 M6 1.6 52 84 84 8.6 62
        50-14x6
        50-14x9
700 6900 1600/450 2000/450 60-18x11 48... 82 127 180.975 123.85 1.6 90 158.75 8* M10* 20 M6 1.6 168 280 280 19 156
        65-18x11
        70-20x12           101,65)





FSO/HPI750-1027
Type Torque
capacity
Overrunning speed dH7 A B C E F G k f Wegiht Drag Torque
750 9660 1800/650 75-20x12 152.4 222.25 149.2 1.6 107.74 177.8 25 1.6 38 5.08
      80-22x14
      85-22x14
      80-22x14
800 17940 1500/525 90-25x14 152.4 254 149.2 1.6 139.7 227 25 1.6 46 7.12
      100-28x16
      110-28x16
      100-28x16
900 24408 1350/500 110-28x16 161.9 304.8 158.7 1.6 161.92 247.65 32 1.6 71 8.47
      120-32x18
      130-32x18
      130-32x18
1027 36612 700/375 150-36x20 168.3 381 165.1 3.2 228.6 298.45 32 3.2 113 13.56
      175-45x25
1) T max = 2 × T KN
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus
2 extra-holes at 180°

MOUNTING EXAMPLE
One Way Clutch for Indexing Applications Fso300-700

FSO 300-1027 /HPI300-1027 Self-contained sprag clutch.

Model Number:
FSO 300, FSO 400, FSO 500, FSO 600, FSO 700, FSO 750, FSO 800, FSO 900, FSO 1027, HPI 300, HPI 400, HPI 500, HPI 600, HPI 700, HPI 750, HPI 800, HPI 900, HPI 1027

Fso 300-1027 /Hpi300-1027 Self-Contained Sprag Clutch
Part No. Dimension (mm) G Mass
FSO HPI B D C D1 E S n-m numbers (kg)
FSO 300 HPI 300 60.45 76.2/76.15 63.5 28.58 66.67 - 1.58×45° 4 1.6
FSO 400 HPI 400 68.26 88.9/88.85 69.85 30.15 73.02 - 1.58×45° 4 2.7
FSO 500 HPI 500 85.72 107.95/107.9 88.9 44.45 92.07 - 1.58×45° 4 4.8
FSO 600 HPI 600 92.07 136.53/136.47 95.25 63.50/69.09 120.65 - 1.58×45° 6 8.6
FSO 700 HPI 700 123.8 180.97/180.92 127 90.42/101.6 158.75 - 1.58×45° 8 19
FSO 750 HPI 750 149.2 222.25/222.2 152.4 107.95 177.8 31.75 1.58×45° 8 38
FSO 800 HPI 800 149.2 254/253.95 152.4 139.7 227.01 31.75 1.58×45° 8 46
FSO 900 HPI 900 158.8 304.8/304.72 161.9 161.92 247.65 34.92 1.58×45° 10 71
FSO 1027 HPI 1027 165.1 381/380.92 168.3 228.6 298.45 34.92 3.17×45° 12 113





Company Information



Sprag coupling Freewheel FSO500-28 One Way Overrunning Clutch FSO/HPI /GO series 3



Workshop Manufacture Processing

Sprag coupling Freewheel FSO500-28 One Way Overrunning Clutch FSO/HPI /GO series 4



Sprag coupling Freewheel FSO500-28 One Way Overrunning Clutch FSO/HPI /GO series 5

Testing equipment



Sprag coupling Freewheel FSO500-28 One Way Overrunning Clutch FSO/HPI /GO series 6



Main products



1. One Way Bearing

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings





Applications:



Backstop

A Backstop application is where rotation

is allowed in one direction and stopped in

the opposite.

Application examples:

· Conveyor equipment

· Mixers

· High voltage switches

· Furniture industry

· Turnstiles and revolving doors

· Geared motors

· Winches

· Elevators

· Cranes

· Strap/belt tighteners

· Bucket conveyors

· Belt reversing locks

· Fans

· Automatic doors (subway)

· Fire damper flaps

· Aviation technology

· Roller plants

· Summer skiing



Indexing clutch

A repeated drive then idle motion will

be transferred to the driven side, step by

step, as rotary motion in one direction (the

clamping direction).



Application examples:

·Paper processing (advance)

· Seeding machines

· Staplers (staples)

· Conveyor belts (drive)

· Ratchets

· Ratchet wrenches

· Roller advance

· Installation tools

· Automation technology





Overrunning clutch

If the speed of the driven side exceeds the

speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

Application examples:

·Copier machines

· Printing machines

· Conveyor equipment

· Transport equipment (speed matching)

· Starters for combustion engines

· Ergometers

· E-bikes

· Bicycle hubs

· Starters

· Emergency power aggregates

· Generators

· Hybrid applications (E-mobility)

· Palletizing and storage systems

· Model helicopters

· Hand operated sirens

· Roller coasters

· Washing systems

· Continuous ovens

· Compressors

· Compensating gearboxes

· Gas turbine drives

· Pump drives

· Belt drives

· Wheelchairs



Sprag coupling Freewheel FSO500-28 One Way Overrunning Clutch FSO/HPI /GO series 7
