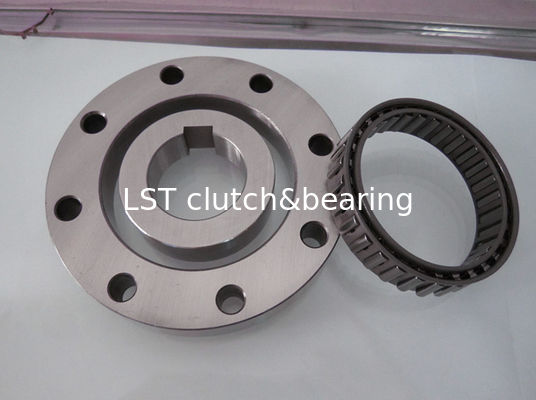

Sprag Freewheel DC cage and race one way clutch bearing apply in machines

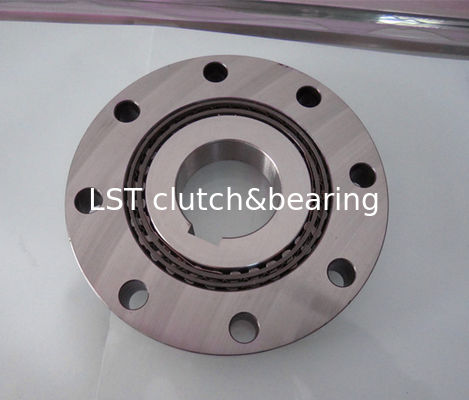

Sprag Freewheel DC cage and race one way clutch bearing apply in machines
Sprag Freewheel DC cage and race one way clutch bearing apply in machines Sprag Freewheel DC cage and race one way clutch bearing apply in machines Sprag Freewheel DC cage and race one way clutch bearing apply in machines Sprag Freewheel DC cage and race one way clutch bearing apply in machines Sprag Freewheel DC cage and race one way clutch bearing apply in machines Sprag Freewheel DC cage and race one way clutch bearing apply in machines Sprag Freewheel DC cage and race one way clutch bearing apply in machines Sprag Freewheel DC cage and race one way clutch bearing apply in machines Sprag Freewheel DC cage and race one way clutch bearing apply in machines Sprag Freewheel DC cage and race one way clutch bearing apply in machines

Large Image :  Sprag Freewheel DC cage and race one way clutch bearing apply in machines

Product Details:
Place of Origin: Jiangsu,China
Brand Name: R&B
Certification: SGS
Model Number: DC race
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD6.00-20.00/pcs
Packaging Details: Industrial packing and commercial packing
Supply Ability: 100000pcs/per month

Sprag Freewheel DC cage and race one way clutch bearing apply in machines

Description
Material: Gcr15 Model: DC168C
Application: ,textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks ID: 88.877mm
OD: 140mm Height: 21mm
Corresponding DC TYPE: DcC7221 Weight: 0.09kg/pcs



Product Description


DC races are offered for use with the DC freewheel cages shown on the previous pages.

The cage and race assembly, makes a non bearing supported freewheel. Bearing support for axial and radial loads must be provided,along with lubrication and sealing.

The sprag space tolerance must not be exceeded when all bearing clearances and mounting tolerances are considered, (see table page 45).

Taper between races should be below 0,007 mm for 25 mm width.

Outer races type A and B should be pressed into housings that will not deform after assembly.

Please contact our technical department if you need to transmit maximum freewheel torque capacity with A and G type. - Key stresses may have to be checked.


Sprag Freewheel DC cage and race one way clutch bearing apply in machines 0

Sprag Freewheel DC cage and race one way clutch bearing apply in machines 1


Size                             Number of holes×Φ   Corresponding DC Type
  dH7
[mm]
LG
[mm]
LH
[mm]
LJ
[mm]
Dj6
[mm]
T
[mm]
D-0.005+0.008
[mm]
L
[mm]
SAn6
[mm]
b1P10 t SBs6 SCg6 DL±0.1
[mm]
  Da±0.013
[mm]

DC230A               16 72 6 3.5         54.752





DC3809A
DC230B               16       72       54.752
DC230C               16         95 78 8×7 54.752
DC230G-10 10 16         38.092
DC230G-15 15 16         38.092
DC230G-20 20 16         38.092
DC230H-10 10   33   35 17 38.092
DC230H-15 15   33   35 17 38.092
DC230H-20 20   33   35 17 38.092
DC230J-10 10     50 35 17 38.092
DC230J-25 15     50 35 17 38.092
DC230J-20 20     50 35 17 38.092
DC167A               16 90 10 5         71.425 DC5476A
DC5476A(4C)
DC167B               16       90       71.425
DC167C               16         110 95 8×9 71.425
DC167G-25 25 16         54.765
DC167G-30 30 16         54.765
DC167G-35 35 16         54.765
DC167H-25 25   35   50 19 54.765
DC167H-30 30   35   50 19 54.765
DC167H-35 35   35   50 19 54.765
DC167J-25 25     54 50 19 54.765
DC167J-30 30     54 50 19 54.765
DC167J-35 35     54 50 19 54.765
DC168A               21 110 14 5.5         88.877



DC7221(51)
DC7221B
DC7221B(5C)
DC168B               21       110       88.877
DC168C               21         140 120 8×11 88.877
DC168G-40 40 21         72.217
DC168G-45 45 21         72.217
DC168G-50 50 21         72.217
DC168H-40 40   42   65 21 72.217
DC168H-45 45   42   65 21 72.217
DC168H-50 50   42   65 21 72.217
DC168J-40 40     63 65 21 72.217
DC168J-45 45     63 65 21 72.217
DC168J-50 50     63 65 21 72.217
DC235A               16 150 20 7.5         119.891



DC10323A(5c)
DC235B               16       150       119.891
DC235C               16         190 170 81×11 119.891
DC235G-55 55 16         103.23
DC235G-60 60 16         103.23
DC235G-75- 75 16         103.23
DC235H-55 55   43   100 27 103.23
DC235H-60 60   43   100 27 103.23
DC235H-75 75   43   100 27 103.23
DC235J-55 55     70 100 27 103.23
DC235J-60 60     70 100 27 103.23

GFR 130 GFRN130 Roller Clutch Bearing Roller One Way Bearing



Sprag Freewheel DC cage and race one way clutch bearing apply in machines 3



Company Information



Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



Workshop

Sprag Freewheel DC cage and race one way clutch bearing apply in machines 4

Manufacture Processing

Sprag Freewheel DC cage and race one way clutch bearing apply in machines 5

Testing equipment



Sprag Freewheel DC cage and race one way clutch bearing apply in machines 6



Main products



1. One Way Bearing

Sprag Freewheel DC cage and race one way clutch bearing apply in machines 7

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings

Sprag Freewheel DC cage and race one way clutch bearing apply in machines 8



Applications:



Backstop

A Backstop application is where rotation

is allowed in one direction and stopped in

the opposite.

Application examples:

· Conveyor equipment

· Mixers

· High voltage switches

· Furniture industry

· Turnstiles and revolving doors

· Geared motors

· Winches

· Elevators

· Cranes

· Strap/belt tighteners

· Bucket conveyors

· Belt reversing locks

· Fans

· Automatic doors (subway)

· Fire damper flaps

· Aviation technology

· Roller plants

· Summer skiing



Indexing clutch

A repeated drive then idle motion will

be transferred to the driven side, step by

step, as rotary motion in one direction (the

clamping direction).



Application examples:

·Paper processing (advance)

· Seeding machines

· Staplers (staples)

· Conveyor belts (drive)

· Ratchets

· Ratchet wrenches

· Roller advance

· Installation tools

· Automation technology





Overrunning clutch

If the speed of the driven side exceeds the

speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

Application examples:

·Copier machines

· Printing machines

· Conveyor equipment

· Transport equipment (speed matching)

· Starters for combustion engines

· Ergometers

· E-bikes

· Bicycle hubs

· Starters

· Emergency power aggregates

· Generators

· Hybrid applications (E-mobility)

· Palletizing and storage systems

· Model helicopters

· Hand operated sirens

· Roller coasters

· Washing systems

· Continuous ovens

· Compressors

· Compensating gearboxes

· Gas turbine drives

· Pump drives

· Belt drives

· Wheelchairs
