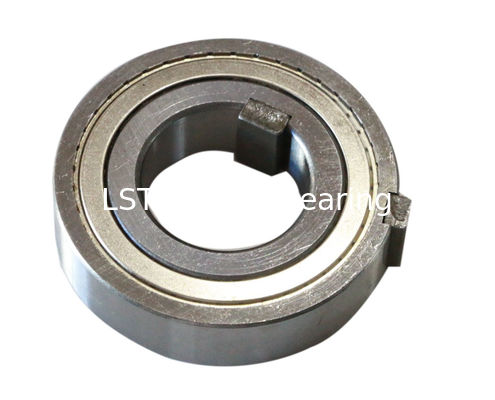

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing

Certification
China Changzhou Lisongtai Industrial Motion Technology Co.,LtD certification
I'm Online Chat Now

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing
Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing

Large Image :  Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing

Product Details:
Place of Origin: Jiangsu,China
Brand Name: R&B
Certification: SGS
Model Number: BB15-2k-k
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD6.00-20.00/pcs
Packaging Details: Industrial packing and commercial packing
Supply Ability: 100000pcs/per month

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing

Description
Material: Gcr15 Model: BB15-2k-k
Application: ,textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks ID: 15mm
OD: 35mm Height: 11mm
Torqure Capacity: 29N.M Weight: 0.05kg/pcs



Product Description

Feature of bearing BB

Product Name one direction cam clutch
Model BB15-2K
Material GCr15
Bore diameter 15mm
Outer diameter 35mm
Torque capacity 29Nm
Weight 50g
Operating temperature –30°C to +100°C
Shipping detail Grease is already applied before delivery
Package Wooden, Tube package or specific way based on buyer
Delivery time Sample 2-4 days, Big Quantity 10-15days
Payment terms TT, L/C, D/P,D/A, Western Union
Port Shanghai, Ningbo, Shenzhen or as you required



BB Cam Clutch (BB-1K-K, BB-2K-K, BB-2GD, BB-2GD 1K-K)

General information of Installation and usage for BB series Cam Clutch
1. BB series Cam Clutch is designed for press fit installation.
2. BB-1K-K and BB-2GD 1K-K series have a keyway on the inner race. Keyways, except size 25 are manufactured to DIN 6885. 3, BB40-1K-K and BB40-2GD 1K-K are manufactured to DIN 6885. 1.
3. BB-2K-K series has a keyway on both the inner and outer race.
"-K" means keys shipped together with Cam Clutch.
4. Correct interference dimensions at the shaft and the housing must be maintained to obtain maximum bearing and clutch performance.
5. BB, BB-1K and BB-2K Clutches, bearing supported and delivered with grease have dust seal protection against particles of 0.25mm and over, whereas BB-2GD and BB-2GD-1K clutches, 5mm wider than standard BB series, have special lip seals for effective protection against any dust.
6. The arrow on the inner race shows the direction of inner race engaging.
8. To install the clutch, use a press tool of the appropriate diameter to apply even pressure over the entire face of the inner and outer race.
9. Do not hammer or apply other shock to the clutch.
10. Make sure the housing has enough strength to withstand the pressure required for the press fitting installation
of the Clutch.
11. Operating temperature range: -30°C to +100°C (Consult us for the temperature that exceeds this range).

Lubrication
1. Since grease is already applied before delivery, there is no need to apply grease before use.
2. If the clutch is used with an oil lubricant, the oil lubrication should be applied inside the unit always.
3. Do not use greases or lubricants with EP additives.

Parameter of bearing bb

BB Cam Clutch One Way Backstop Clutch Bearings Manufacturer BB15 BB 15

BB Cam Clutch One Way Backstop Clutch Bearings Manufacturer BB15 BB 15BB Cam Clutch One Way Backstop Clutch Bearings Manufacturer BB15 BB 15



Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 3

Model Torque
Capacity
Max. Overrunning Drag Torque (N·m) A B C D r Weight (g) Bearing Loads
Inner Race Outer Race BB
BB-1K-K
BB-2K-K
BB-2GD
BB-2GD 1K-K
BB
BB-1K-K
BB-2K-K
BB-2GD
BB-2GD 1K-K
BB
BB-1K-K
BB-2K-K
BB-2GD
BB-2GD 1K-K
BB
BB-1K-K
BB-2K-K
BB-2GD
BB-2GD 1K-K
Cr Cor
N·m r/min r/min N N
BB15 29 3600 2000 0.01 0.04 11 16 35 15 32.6 32.45 0.6 50 70 5950 3230
BB17 43 3500 1900 0.01 0.05 12 17 40 17 36.1 36.45 0.6 80 100 7000 3700
BB20 61 3000 1600 0.014 0.055 14 19 47 20 41.7 42.35 1 120 150 8500 4900
BB25 78 2500 1400 0.017 0.055 15 20 52 25 47.1 47.05 1 150 200 10700 6300
BB30 140 2000 1100 0.03 0.058 16 21 62 30 56.6 55.6 1 230 280 11900 7900
BB35 173 1800 1000 0.034 0.06 17 22 72 35 64 64.6 1.1 320 410 13500 9700
BB40 260 1800 900 0.04 0.08 22 27 80 40 71 71.6 1.1 400 600 14500 11700



Note: Model No. marked on the inner race is only “K” for both “1K” and “2K”. (Example: the mark “BB25-K” for both BB25-1K and BB25-2K)



Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 4


Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 5

GFR 130 GFRN130 Roller Clutch Bearing Roller One Way Bearing



Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 7







Company Information



Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



Workshop

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 8



Manufacture Processing

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 9

Testing equipment



Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 10



Main products



1. One Way Bearing

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 11

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 12



Applications:



Backstop

A Backstop application is where rotation

is allowed in one direction and stopped in

the opposite.

Application examples:

· Conveyor equipment

· Mixers

· High voltage switches

· Furniture industry

· Turnstiles and revolving doors

· Geared motors

· Winches

· Elevators

· Cranes

· Strap/belt tighteners

· Bucket conveyors

· Belt reversing locks

· Fans

· Automatic doors (subway)

· Fire damper flaps

· Aviation technology

· Roller plants

· Summer skiing



Indexing clutch

A repeated drive then idle motion will

be transferred to the driven side, step by

step, as rotary motion in one direction (the

clamping direction).



Application examples:

·Paper processing (advance)

· Seeding machines

· Staplers (staples)

· Conveyor belts (drive)

· Ratchets

· Ratchet wrenches

· Roller advance

· Installation tools

· Automation technology





Overrunning clutch

If the speed of the driven side exceeds the

speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

Application examples:

·Copier machines

· Printing machines

· Conveyor equipment

· Transport equipment (speed matching)

· Starters for combustion engines

· Ergometers

· E-bikes

· Bicycle hubs

· Starters

· Emergency power aggregates

· Generators

· Hybrid applications (E-mobility)

· Palletizing and storage systems

· Model helicopters

· Hand operated sirens

· Roller coasters

· Washing systems

· Continuous ovens

· Compressors

· Compensating gearboxes

· Gas turbine drives

· Pump drives

· Belt drives

· Wheelchairs

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 13





Our advanges:

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 14

Our package:

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 15

R&B Certifications:

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 16

R&B MODELS:

1. One way clutch MG Series MG300/MG400/MG500/MG600/MG700/MG750/MG800/MG900/MG100/MG1100/MG1200/MG13

2. One way clutch MZ Series MZ15/MZ17/MZ20/MZ30-22/MZ30-25/MZ30/MZ35/MZ45-40/MZ45-40/MZ60-50/MZ60-55/MZ60/MZ70-65/MZ70

3. B200 series cam clutch
B203/B204/B205/B206/B207/B208/B209/B210/B211/B212/B213/B214

4. BB series one way bearings
BB15/BB17/BB20/BB25/BB30/BB35/BB40/BB15-1K-K/BB17-1K-K/BB20-1K-K/BB25-1K-K /BB30-1K-K/BB35-1K-K/BB40-1K-K/BB15-2K-K/BB17-2K-K/BB20-2K-K/BB25-2K-K /BB30-2K-K/BB35-2K-K/BB40-2K-K/


5. CSK series one way bearings
CSK8/CSK12/CSK15/CSK15-1K/CSK15-2K/CSK17/CSK17P/CSK17PP/CSK20/CSK20P/CSK20PP/CSK25/CSK25P/CSK25PP/CSK30/CSK30P/CSK30PP/CSK35/CSK35P/CSK35PP/CSK40/CSK40-1K/CSK40-2K/CSK8-RS/CSK35-2RS/CSK12-2RS/SK40-2RS/CSK15-2RS/CSK20P-2RS/CSK17-2RS /CSK25P-2RS CSK20-2RS/CSK30P-2RS CSK25-2RS /CSK30PP-2RS CSK30-2RS


6. GFK series one way clutch bearings
GFK20/GFK25 /GFK30 /GFK35 /GFK40/GFK45 / GFK50

7. DC series sprag freewheel cage one way clutch
DC2222G /DC2776/ DC2222G /DC3175 (3C) DC2776 /DC3175A DC3175 (3C) /DC3034/ DC3175A
DC3809A/ DC3034 /DC3809A(3C) /DC3809A /DC4127 /DC3809A(3C) /DC4127
DC5476A/ DC4972 (4C) /DC5476A (4C) /DC5476A/ DC5476B/ DC5476A

8. BWC BW. X.BWX series cam clutch
BW-13161/BW-13167/BW-13167MZ/BW-13214/BW-13214/BW-13231/BW-13243/BW-13244/BW-13255/BWC-13168/BWC-13219A/BWC-13229/BWX/BWC/X/RC series freewheel cage overrunning clutch
BWX134939/BWX13219/BWX132640/BWC13230/BWC13244/BWX132909/BWX133339/BWC13167/BWC13239/BWC13168/BWX13261/BWX133403 X133400B /X133400/ X133401 X133402 /X133403 X134398 /X134954/ X135005/ X135006/ X135036/ X135041/ X135052 /X135067 RC061008 /RC081208 RC101410/ RC121610

9. RSBW series one way clutches
RSBW25/ RSBW30/RSBW35/ RSBW40/RSBW45/RSBW50/RSBW55/RSBW60
RSBW65/RSBW70/RSBW75/RSBW80/RSBW85/RSBW90


10. PB series one way clutches
PB3/PB5/PB6/PB8/PB10/PB12/PB14

11. TSS Freewheels sprag one way clutch
TSS8/TSS10/TSS12/TSS15/TSS20/TSS25/TSS30/TSS35/TSS40/TSS45/TSS50/TSS60


12. TFS series cam clutches
TFS12/TFS15/TFS17/TFS20/TFS25/TFS30/TFS35/TFS40/TFS45/TFS50/TFS60/TFS70/TFS8/TFS90

13. AS(NSS or TSS)series one way clutch
TSS8 AS8 NSS8/ TSS10 AS10 NSS10/ TSS12 AS12 NSS12/TSS15 AS15 NSS15/
TSS20 AS20 NSS20/ TSS25 AS25 NSS25/ TSS30 AS30 NSS30/ TSS35 AS35


14. ASNU(NFS or TFS) series one way clutch
TFS12 ASNU12 NFS12/ TFS15 ASNU15 NFS15/ TFS17 ASNU17 NFS17/ TFS20 ASNU20NFS20/TFS25 ASNU25 NFS25/TFS30 ASNU30 NFS30/TFS35 ASNU35

15. NF roller type one way clutch
STIEBER NF8 GFRN55/STIEBER NF12 GFRN60 /STIEBER NF15 GFRN70/
STIEBER NF20 GFRN80/STIEBER NF25 GFRN90/STIEBER NF30 GFRN100


16. AE roller type one way clutch
STIEBER AE8/STIEBER AE12/ STIEBER AE15/ STIEBER AE20/ STIEBER AE25/ STIEBER AE30/ STIEBER AE35/ STIEBER AE40/ STIEBER AE45/ STIEBER AE50/STIEBER AE55/ STIEBER AE60/

17. AA roller type one way clutch
STIEBER AA20/ STIEBER AA25/ STIEBER AA30/STIEBER AA35 /STIEBER AA40/STIEBER AA45/ STIEBER AA50/STIEBER AA55/STIEBER AA60/STIEBER AA70/ STIEBER AA80/STIEBER AA90/
STIEBER AA100/ STIEBER AA120/ STIEBER AA150/

18.GFRGFRN series miler overrunning clutch
GFR12/GFR15/GFR20/ GFR25/GFR30/ GFR35/GFR40/GFR45/GFR50/GFR55/GFR60/GFR70


19.FE series freewheel one way clutch

FE448 /FE443 /FE422/FE423/FE428/FE427/FE432/FE433/FE453 /FE437

20. One way clucth CKA Series bearngs: CK-A1542/CK-A1747/CK-A2052/CK-A2562/CK-A3072/CK-A3580/CK-A4090/CK-A45100/CK-A50110/CK-A60130

21. Drawn cup needle Roller one way HF0406/HF0612/HF0812/HF1012/HF1216HF1416/HF1616/HF1816/HF2016/HF25


22.KI series:KI196


23.HYCS cam clutch :HYC8S/HYC10S/HYC12S/HYC15S/HYC20S/HYC25S/HYC30S/HYC35S/HYC40S/HYC45S/HYC50S/HYC60S

24.LD series one way clutch:LD04/LD05/LD06/LD07/LD08

25.MA series cam clutch:MA20/MA30

26.MI series cam clutch :MI300/MI400/MI500/MI600/MI700/MI750/MI800/MI900/MI1000/MI1100/MI1200/MI1300

27.MZEUseries one way cam clutch :MZEU12K/MZEU15K/MZEU20K/MZEU25K/MZEU30K/MZEU35K/MZEU40K/MZEU45K/MZEU50K/MZEU55K/MZEU60K/MZEU70K/MZEU80K/MZEU90/MZEU100/MZEU130/MZEU150

28.BR series cam clutch BR20/BR25/BR30/BR35/BR40/BR45/BR50/BR60/BR71/BR80/BR90/BR100/BR130/BR150/BR180/BR190/BR220/BR240/

29.BSEU cam clutch BSEU40-20/BSEU40-25/BSEU40-30/BSEU40-35/BSEU40-40/BSEU70-45/BSEU70-50/BSRU70-55/BSEU70-60/BSEU70-65/BSEU70-70/BSEU90-75/BSEU90-80/BSEU90-85/BSEU90-90

30.BST cam clutch BST30/BST50/BST65/BST75/BST85/BST95/BST110/BST135/BST160/BST200/BST220/BST250/BST270/BST300/BST335/BST350/BST425/BST450


31.HYC series
HYC8C/HYC12C/HYC15C/HYC17C/HYC20C/HYC25C/HYC30C/HYC35C/HYC40C/HYC45C/HYC50C/HYC60C/HYC70C/HYC80C/HYC90C


32. CLD series one way bearings CLD04-09-06/CLD04-10-16/CLD04-13-3.1/CLD06-12-06/CLD06-16-3.5/CLD08-16-5.5/CLD08-16-09/

34.AV series backstop one way clutch
STIEBER AV20,STIEBER AV25,STIEBER AV30,STIEBER AV35,STIEBER AV40, STIEBER AV45,STIEBER AV50,STIEBER AV55,STIEBER AV60,STIEBER AV70,
STIEBER AV80,STIEBER AV90,STIEBER AV100,STIEBER AV110,STIEBER AV120

35.RSCI series one way clutch
RSCI20/STIEBER RSCI25/STIEBER RSCI30/STIEBER RSCI35/STIEBER RSCI40/ RSCI45/STIEBER RSCI50/STIEBER RSCI60/STIEBER RSCI70/STIEBER RSCI80/ STIEBER RSCI80M/STIEBER RSCI90/STIEBER RSCI90M/STIEBER RSCI100/STIEBER RSCI100M/ STIEBER RSCI130/STIEBER RSCI180/STIEBER RSCI180M/STIEBER RSCI180II/ STIEBER RSCI180II-M/STIEBER RSCI220/STIEBER RSCI220M/STIEBER RSCI220II/ STIEBER RSCI220II-M/STIEBER RSCI240/STIEBER RSCI240M/STIEBER RSCI240II/ STIEBER RSCI240II-M/STIEBER RSCI260/STIEBER RSCI260M/STIEBER RSCI260II/ STIEBER RSCI260II-M/STIEBER RSCI300/STIEBER RSCI300M/STIEBER RSCI300II

36.RSBI series
RSBI60/RSBI70/RSBI80/RSBI90/RSBI100/RSBI130/RSBI150/RSBI180/RSBI190/RSBI220/RSBI240STIEBER/RSBI100 /RIZ100G4 /STIEBER RSBI130 /RIZ130G4 /STIEBER RSBI150 /STIEBER RSBI100F8 RIZ30G7 /STIEBER RSBI130F8/ RIZ35G7 STIEBER/ RSBI150 F8 RIZ40G7

Needle roller bearings:
1. K series radial needle roller and cage assembiles,
NK series, Non-inner ring needle bearing, light series
NKS, Non-inner ring needle roller bearings, heavy series
RNA49, Non-inner needle roller bearing, sizes 49 series
RNA69, Non-inner needle roller bearings, size 69 series
RNA48, Non-inner needle roller bearings, size 48 series
NKI, with inner ring needle bearings, light series
AXK thrust ball bearing with flat seat.


2. Supporting roller and curve roller bearings:
NUTRseries, NUKRseries, KR series, PWKR series, NATR series, RSTOseries, STOseries, NATV series, CF series.

3. Combined radial bearings:
NKIA series, NKIB series, NX series, NKX series, NKXR series, ZARN series, ZARF series, RAXF series







Transport ways:

Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 17

Easy communication  ways:



Cam Clutch (BB15-1K-K, BB15-2K-K, BB-2GD/BB-2GD1K-K /2K-K) one way ball bearing 18





FAQ

A:Will you send me free sample?

B: It is highly encouraged to ask for the samples for quality check.



A:Do you like to serve the client only with small orders?

B:We enjoy to grow up together with all our clients whatever big or small.And WIN-WIN is our objective.



A:Could you accept OEM and customize?
B:YES, we can customize for you according to sample or drawing, but, pls provide us technical data, such as dimension and mark.


A:Is it your company is factory or Trade Company?
B:We have our own factory; our type is factory + trade.


A:How to maintain my bearings?
B:a. Soak your bearings in mineral spririts or paint thinner to remove any grease or particulates;
b. Blowbearing out with compressed air;
c.place a light drop of oil on the bearing;
d.If the bearings feel rough repeat, give the bearing a spin.


A:Could you supply door to door service?
B:Yes, by air and by express (DHL, FEDEX, TNT, ARAMEX,EMS, SF)

Our Advantages

Contact Details
Changzhou Lisongtai Industrial Motion Technology Co.,LtD

Contact Person: Ms. Sun

Tel: +8615895075912

Fax: 86-519-68254183

Send your inquiry directly to us (0 / 3000)
