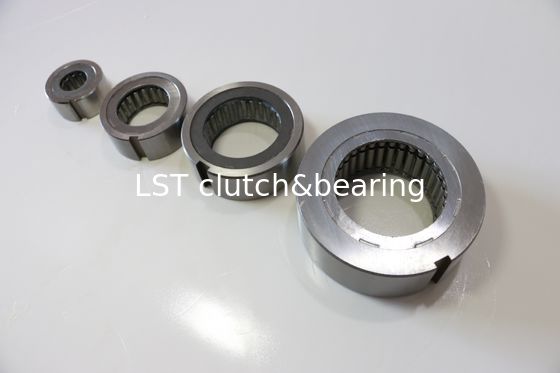

high quality R&B brand B212 TSUBAKI design sprag type one way clutch apply in harvester

Large Image : high quality R&B brand B212 TSUBAKI design sprag type one way clutch apply in harvester

Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	R&B
Certification:	SGS
Model Number:	B212

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	USD5.00-10.00/pcs
Packaging Details:	Industrial packing and commercial packing
Supply Ability:	100000pcs/per month

Contact Now

high quality R&B brand B212 TSUBAKI design sprag type one way clutch apply in harvester

Description

Material:	Gcr15	Model:	B212
Application:	,textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks	ID:	70.029mm
OD:	110mm	Height:	42mm
Torqure Capacity:	1230N.M	Weight:	1.8kg/pcs

Industrial Bearing CB206,S206,B206 Sprag Cam Clutch One Way Clutch

Product Description

GFR 130 GFRN130 Roller Clutch Bearing Roller One Way Bearing

high quality R&B brand B212 TSUBAKI design sprag type one way clutch apply in harvester 1

Details
Item		CB-206,B206,S206
Material		GCr15
Inner Diameter		32.766 mm
Key Way		7X4mm
Outer Diameter		62 mm
Weight		0.7 kg
Drag Torque		0.2 Nm
Application		Elevator, Industrial Machines

Introduction

Type B206,CB-200 is a sprag type free wheel not self-centring. It is therefore necessary to place one or two bearings next to the free wheel so that the outer race can rotate centrally to the inner race.

The bearings to use next to the free wheel are written in the following table.

A key will transmit the torque between outer ring and the shaft. the tolerance of the housing bore must be h7.

The sprags work on the shaft made by the user which must be realized following these indications:

1) carburized depth after grinding 0,6 mm

2) surface hardness of hrc58-62

3) core hardness of hrc35-45

4) surface roughness must not exceed 6,3 μm

5) maximum shaft taper 0,01 mm per 50 mm length

CB-200 series can be lubricated with grease or oil but they must not have EP additives

Different Sizes For Your Reference

Industrial Bearing CB206 B206 Sprag Cam Clutch One Way

Type	Drag torque(N.m)	Overrunning Speed (r/min)		Shaft size (mm)	Outer race h7(mm)	Thickness	Key way
Type	Drag torque(N.m)	inner race	outer race	Shaft size (mm)	Outer race h7(mm)	(mm)	(mm)
CB203	43.2	2650	550	16.51	40	25	4.0×2.5
CB204	64.7	2650	550	18.796	47	25	5.0×3.0
CB205	108	2000	440	23.622	52	25	5.0×3.0
CB206	258	2000	385	32.766	62	28	7.0×4.0
CB207	409	2000	330	42.088	72	28	7.0×4.0
CB208	590	2000	220	46.761	80	32	10.0×4.5
CB209	590	2000	220	46.761	85	32	10.0×4.5
CB210	835	1350	220	56.109	90	32	10.0×4.5

Specification:

Type	Drag torque(N.m)	Overrunning Speed (r/min)		Shaft size	Outer race h7(mm)	Thickness	Key way
Type	Drag torque(N.m)	inner race	outer race	(mm)	Outer race h7(mm)	(mm)	(mm)
B203	39.2	2400	500	16.51	40	25	4.0×2.5
B204	58.8	2400	500	18.796	47	25	5.0×3.0
B205	98	1800	400	23.622	52	25	5.0×3.0
B206	235	1800	350	32.766	62	28	7.0×4.0
B207	372	1800	300	42.088	72	28	7.0×4.0
B208	549	1800	200	46.761	80	32	10.0×4.5
B209	549	1200	200	46.761	85	32	10.0×4.5
B210	784	1200	200	56.109	90	32	10.0×4.5
B211	784	1200	200	56.109	100	32	10.0×4.5
B212	1230	1200	180	70.029	110	42	10.0×4.5
B213	1230	1200	180	70.029	120	42	10.0×4.5
B214	1390	1000	180	79.356	125	42	12.0×4.5

Installation and Usage
1.B200 Series Cam Clutch is shaft mounted, so the shaft on which the clutch is mounted must be hardened to Rc 56-60 and 1.5 mm case depth after grinding. Grind to 1.5S (16micro-inch) finish. The taper of this shaft should not exceed 0.01 mm per 50mm.
2. For installation of the clutch mount the clutch with bearings at both sides or on one side in
order to obtain concentricity between the shaft and the clutch outer race and to take up radial
or thrust loads which may work on the outer race or the shaft. See the installation example.
3. The clutch should be mounted on the shaft by rotating it in the direction marked by the arrow
shown on the clutch plate. Do not apply shock to the clutch by hammering.
4. The clutches have the same outside diameters as the bearings shown in the table above. Bore tolerance of the housing in which the clutch is assembled should be within the range shown in the table below.
5. For indexing, oil lubrication is recommended.
6. Concentricity of the housing bore and shaft should be within 0.05 mm.
7. Key profile should be in accordance with JIS B1301-1959

Model	Tolerance of housing bore(mm)
B203,B204	+0 to + 0.025
B205,B206,B207,B208	+0 to + 0.030
B210,B211,B212,B213	+0 to + 0.035
B214	+0 to + 0.040

Typical applications of one way bearing B206
Air cleaning plants; Agricultural machines; Buchet elevators; Compressors; Conveyors; Cranes and hoists; Dry cleaning machinery; Duplicator equipment; Fish net machines; Heat-treatment furnaces; Induced draft fans; Multi-states conveyors; Packaging machinery; Printing machinery; Pumps; Punch presses and feeders; Power plants; Refinery equipment; Speed reducers; Standby power units; Textile looms; Two-speed grinders; Two-speed shiftovers; Washing machines; Wire winding machinery.

Detailed Image

Sprag Clutch AS (NSS TSS) One Way Clutch

high quality R&B brand B212 TSUBAKI design sprag type one way clutch apply in harvester 4

high quality R&B brand B212 TSUBAKI design sprag type one way clutch apply in harvester 5

Company Information

Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

Workshop

high quality R&B brand B212 TSUBAKI design sprag type one way clutch apply in harvester 6

Manufacture Processing

high quality R&B brand B212 TSUBAKI design sprag type one way clutch apply in harvester 7

Testing equipment

high quality R&B brand B212 TSUBAKI design sprag type one way clutch apply in harvester 8

Main products

1. One Way Bearing

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake

2.Needle roller bearings

Applications:

Backstop

A Backstop application is where rotation

is allowed in one direction and stopped in

the opposite.

Application examples:

· Conveyor equipment

· Mixers

· High voltage switches

· Furniture industry

· Turnstiles and revolving doors

· Geared motors

· Winches

· Elevators

· Cranes

· Strap/belt tighteners

· Bucket conveyors

· Belt reversing locks

· Fans

· Automatic doors (subway)

· Fire damper flaps

· Aviation technology

· Roller plants

· Summer skiing

Indexing clutch

A repeated drive then idle motion will

be transferred to the driven side, step by

step, as rotary motion in one direction (the

clamping direction).

Application examples:

·Paper processing (advance)

· Seeding machines

· Staplers (staples)

· Conveyor belts (drive)

· Ratchets

· Ratchet wrenches

· Roller advance

· Installation tools

· Automation technology

Overrunning clutch

If the speed of the driven side exceeds the

speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

Application examples:

·Copier machines

· Printing machines

· Conveyor equipment

· Transport equipment (speed matching)

· Starters for combustion engines

· Ergometers

· E-bikes

· Bicycle hubs

· Starters

· Emergency power aggregates

· Generators

· Hybrid applications (E-mobility)

· Palletizing and storage systems

· Model helicopters

· Hand operated sirens

· Roller coasters

· Washing systems

· Continuous ovens

· Compressors

· Compensating gearboxes

· Gas turbine drives

· Pump drives

· Belt drives

· Wheelchairs
