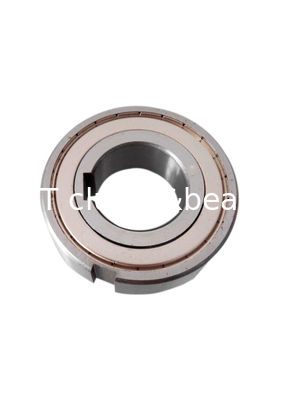

Cam Clutch BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design

Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design
Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design

Large Image :  Cam Clutch BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design

Product Details:
Place of Origin: Jiangsu,China
Brand Name: R&B
Certification: SGS
Model Number: BB35-2GD
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD6.00-20.00/pcs
Packaging Details: Industrial packing and commercial packing
Supply Ability: 100000pcs/per month

Cam Clutch BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design

Description
Material: Gcr15 Model: BB35-2GD
Application: ,textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks ID: 35mm
OD: 72mm Height: 22mm
Torqure Capacity: 170N.M Weight: 0.6kg/pcs



Product Description

Feature of bearing BB

Product Name one direction cam clutch
Model BB35-2GD
Material GCr15
Bore diameter 35mm
Outer diameter 72mm
Torque capacity 173Nm
Weight 0.41kg
Operating temperature –30°C to +100°C
Shipping detail Grease is already applied before delivery
Package Wooden, Tube package or specific way based on buyer
Delivery time Sample 2-4 days, Big Quantity 10-15days
Payment terms TT, L/C, D/P,D/A, Western Union
Port Shanghai, Ningbo, Shenzhen or as you required



BB Cam Clutch (BB-1K-K, BB-2K-K, BB-2GD, BB-2GD 1K-K)

General information of Installation and usage for BB series Cam Clutch
1. BB series Cam Clutch is designed for press fit installation.
2. BB-1K-K and BB-2GD 1K-K series have a keyway on the inner race. Keyways, except size 25 are manufactured to DIN 6885. 3, BB40-1K-K and BB40-2GD 1K-K are manufactured to DIN 6885. 1.
3. BB-2K-K series has a keyway on both the inner and outer race.
"-K" means keys shipped together with Cam Clutch.
4. Correct interference dimensions at the shaft and the housing must be maintained to obtain maximum bearing and clutch performance.
5. BB, BB-1K and BB-2K Clutches, bearing supported and delivered with grease have dust seal protection against particles of 0.25mm and over, whereas BB-2GD and BB-2GD-1K clutches, 5mm wider than standard BB series, have special lip seals for effective protection against any dust.
6. The arrow on the inner race shows the direction of inner race engaging.
8. To install the clutch, use a press tool of the appropriate diameter to apply even pressure over the entire face of the inner and outer race.
9. Do not hammer or apply other shock to the clutch.
10. Make sure the housing has enough strength to withstand the pressure required for the press fitting installation
of the Clutch.
11. Operating temperature range: -30°C to +100°C (Consult us for the temperature that exceeds this range).

Lubrication
1. Since grease is already applied before delivery, there is no need to apply grease before use.
2. If the clutch is used with an oil lubricant, the oil lubrication should be applied inside the unit always.
3. Do not use greases or lubricants with EP additives.

Parameter of bearing bb

BB Cam Clutch One Way Backstop Clutch Bearings Manufacturer BB15 BB 15

BB Cam Clutch One Way Backstop Clutch Bearings Manufacturer BB15 BB 15BB Cam Clutch One Way Backstop Clutch Bearings Manufacturer BB15 BB 15



Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design 3

Model Torque
Capacity
Max. Overrunning Drag Torque (N·m) A B C D r Weight (g) Bearing Loads
Inner Race Outer Race BB
BB-1K-K
BB-2K-K
BB-2GD
BB-2GD 1K-K
BB
BB-1K-K
BB-2K-K
BB-2GD
BB-2GD 1K-K
BB
BB-1K-K
BB-2K-K
BB-2GD
BB-2GD 1K-K
BB
BB-1K-K
BB-2K-K
BB-2GD
BB-2GD 1K-K
Cr Cor
N·m r/min r/min N N
BB15 29 3600 2000 0.01 0.04 11 16 35 15 32.6 32.45 0.6 50 70 5950 3230
BB17 43 3500 1900 0.01 0.05 12 17 40 17 36.1 36.45 0.6 80 100 7000 3700
BB20 61 3000 1600 0.014 0.055 14 19 47 20 41.7 42.35 1 120 150 8500 4900
BB25 78 2500 1400 0.017 0.055 15 20 52 25 47.1 47.05 1 150 200 10700 6300
BB30 140 2000 1100 0.03 0.058 16 21 62 30 56.6 55.6 1 230 280 11900 7900
BB35 173 1800 1000 0.034 0.06 17 22 72 35 64 64.6 1.1 320 410 13500 9700
BB40 260 1800 900 0.04 0.08 22 27 80 40 71 71.6 1.1 400 600 14500 11700



Note: Model No. marked on the inner race is only “K” for both “1K” and “2K”. (Example: the mark “BB25-K” for both BB25-1K and BB25-2K)



Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design 4


Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design 5

GFR 130 GFRN130 Roller Clutch Bearing Roller One Way Bearing



Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design 7







Company Information



Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



Workshop

Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design 8



Manufacture Processing

Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design 9

Testing equipment



Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design 10



Main products



1. One Way Bearing

Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design 11

1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings

Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design 12



Applications:



Backstop

A Backstop application is where rotation

is allowed in one direction and stopped in

the opposite.

Application examples:

· Conveyor equipment

· Mixers

· High voltage switches

· Furniture industry

· Turnstiles and revolving doors

· Geared motors

· Winches

· Elevators

· Cranes

· Strap/belt tighteners

· Bucket conveyors

· Belt reversing locks

· Fans

· Automatic doors (subway)

· Fire damper flaps

· Aviation technology

· Roller plants

· Summer skiing



Indexing clutch

A repeated drive then idle motion will

be transferred to the driven side, step by

step, as rotary motion in one direction (the

clamping direction).



Application examples:

·Paper processing (advance)

· Seeding machines

· Staplers (staples)

· Conveyor belts (drive)

· Ratchets

· Ratchet wrenches

· Roller advance

· Installation tools

· Automation technology





Overrunning clutch

If the speed of the driven side exceeds the

speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

Application examples:

·Copier machines

· Printing machines

· Conveyor equipment

· Transport equipment (speed matching)

· Starters for combustion engines

· Ergometers

· E-bikes

· Bicycle hubs

· Starters

· Emergency power aggregates

· Generators

· Hybrid applications (E-mobility)

· Palletizing and storage systems

· Model helicopters

· Hand operated sirens

· Roller coasters

· Washing systems

· Continuous ovens

· Compressors

· Compensating gearboxes

· Gas turbine drives

· Pump drives

· Belt drives

· Wheelchairs

Cam Clutch  BB35-2GD/BB35-2GD-1K-K /2K-K one way bearings TSUBAKI design 13
