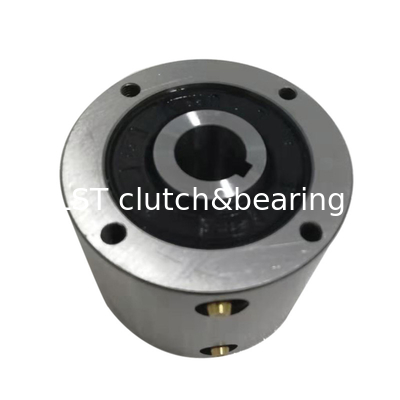

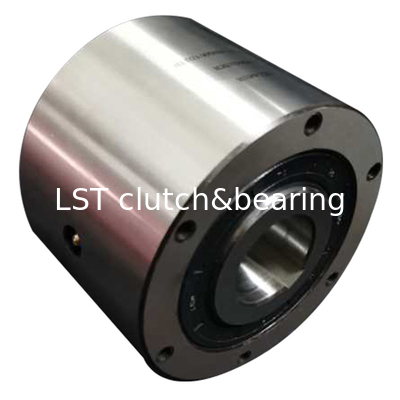

Large Image :  sprag type one way clutch cam clutch MG300/MI300 mechanical clutch

Product Details:
Place of Origin: Jiangsu,China
Brand Name: LST
Certification: SGS
Model Number: MI300
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD100.00-200.00/pcs
Packaging Details: Industrial packing and commercial packing
Supply Ability: 10000pcs/per month

sprag type one way clutch cam clutch MG300/MI300 mechanical clutch

Description
Material: Gcr15 Model: MI300
Application: ,textile Machine,elevator Machine, Strap/belt Tighteners • Bucket Conveyors • Belt Reversing Locks ID: 19mm
OD: 77mm Height: 63mm
Torqure Capacity: 314N.M Weight: 1.80kg/pcs

Product Description







MG/MI/MZ type cam clutch

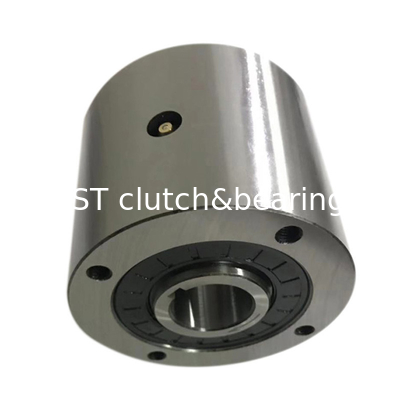

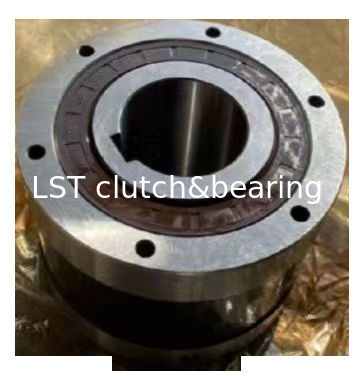

sprag  type one way clutch cam clutch MG300/MI300 mechanical clutch 0

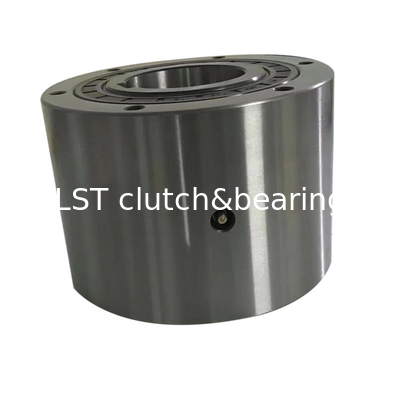

sprag  type one way clutch cam clutch MG300/MI300 mechanical clutch 1







Model
    Max.                   H-M
Torque Drag Overrunning Max. Bore Size       PCD       No.of Weight
Capacity Torque (r/min) Indexing   A B C   E F S Tapped Holes (kg)
(Nm) (Nm) Inner Outer (cycle/min) Dia. Keyway   (h7)   D       ×Size×Pitch
    Race Race   (H7)
MG 300 314 0.23 2800 900 _ 19 5x2 63 77 60 66 10.4 28.5 13 4xM6xP1.0 1.8
MI 300 0.31 50 _ 300
MG 400 539 0.29 2600 800 _ 22 5x2 70 88 67 73 10.7 31.7 16 4XM8xP1.25 2.7
MI 400 0.38 50 _ 300
MG 500 1620 0.51 2400 800 _ 31.5 7x3 89 108 86 92 12.3 44.4 16 4XM8xP1.25 5
MI 500 0.68 50 _ 300
MG 600 3140 0.85 2100 700 _ 50 12x3.5 95 136 92 120 12.8 69.8 16 6xM8xP1.25 8.6
MI 600 1.54 30 _ 300
MG 700 5880 1.7 1500 500 _ 70 18x6 127 180 124 160 19.8 101.5 20 6xM10xP1.5 19.5
MI 700 2.63 30 _ 300
MG 750 9500 3.43 1800 600 _ 85 24x6 153 200 150 175 75 110 25 8xM14xP2.0 37
MI 750 4.12 30 _ 300
MG 800 17600 5.39 1300 475 _ 110 28x7 158 250 155 220 77.5 140 25 8xM16xP2.0 46.5
MI 800 8.33 20 _ 300
MG 900 24500 6.77 1200 400 _ 135 35x9 165 300 160 265 80 170 32 10xM16xP2.0 70.5
MI 900 9.41 20 _ 300
MG 1000 33800 8.14 1200 325 _ 160 38x10 188 370 180 325 90 200 32 12xM16xP2.0 108.5
MI 1000 12.74 2 _ 300
MG 1100 78400 15 350 _ _ 185 45x14 260 470 250 415 125 260 40 12xM20xP2.5 250
MI 1100 22.15 20 _ 150
MG 1200 95100 17.64 300 _ _ 200 45x14 260 500 250 440 125 280 45 12xM24xP3.0 280
MI 1200 27.54 20 _ 150
MG 1300 2E+05 18.72 250 _ _ 250 56x17.5 280 600 260 530 130 340 50 12xM30xP3.5 410
MI 1300 28.13 20 _ 150




Feature

1.MG Series Cam Clutch is used for inner race overrunning applications. MI Series Cam Clutch is used for indexing applications
2. For attaching a pulley, a gear, or sprocket to the clutch, insert the clutch into the hub of the device, and screw the bolts (high tension) into the tapped holes on the clutch end. The tolerance bore of the hub should be H6 or H7 of JIS standard
3. Recommended shaft tolerances are as follows:
4. The key should be in accordance with JIS B1301-1959. However, for M750 and above models, a key is attached.
5. Use only a parallel key to secure the clutch. Never use a tapered key.
6. If the clutch receives shock loads or is designed for use at full torque capacity, it is better to use a
hardened key and shaft.
7. Allow for a clearance between the top of the clutch keyway and the top of the key for pressure ventilation of the clutch in the case of MG Series. A pressure ventilation hole is provided on the keyway of the clutch inner race.
8. When mounting the clutch on a shaft, apply pressure to the inner race, but never to the outer race.
9. Thrust load should be taken up by other devices, not by the Cam Clutch.
10.When using MG Series at medium and high speeds, pay attention to heating. Longevity is shortened if
the temperature of Cam Clutch outer race rises to over 70°C. In case of continuous over running
Please contact Tubaki. In this case, use a different model or provide an oil bath or forced lubrication.
11.Oil is not sealed in at the time of shipment. Supply an appropriate amount of oil before use.
12.When placing an order for MG Series Cam Clutch model MG 750 and above, please inform of the overrunning speed you use.
13.For vertical mounting, please consult .



Detailed Images

MZ MI MG Sprag Freewheels One Way Backstop Clutch Cam Clutch Bearings

Related Products

MZ MI MG Sprag Freewheels One Way Backstop Clutch Cam Clutch Bearings



Company Information

Changzhou Lisongtai Industrial Motion Technocology Co,LTD is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



Workshop&Manufacture Processing

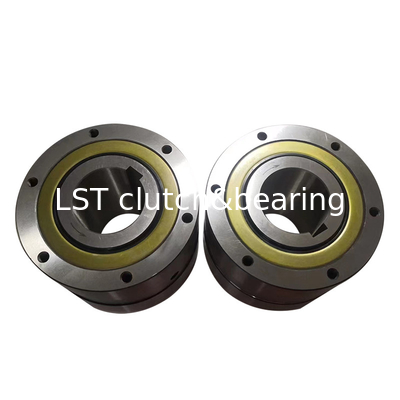

sprag  type one way clutch cam clutch MG300/MI300 mechanical clutch 4

Testing equipment

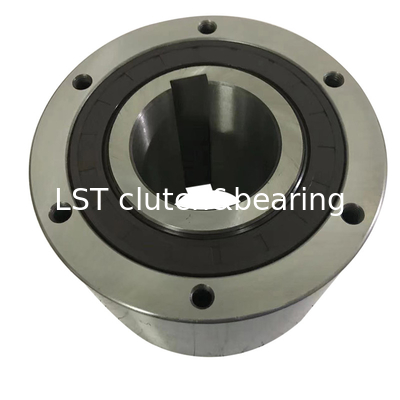

sprag  type one way clutch cam clutch MG300/MI300 mechanical clutch 5



Main products



1. One Way Bearing



1. Overrunning clutch

for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

2. Indexing clutch

which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

3. Backstop

to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake



2.Needle roller bearings





Applications:

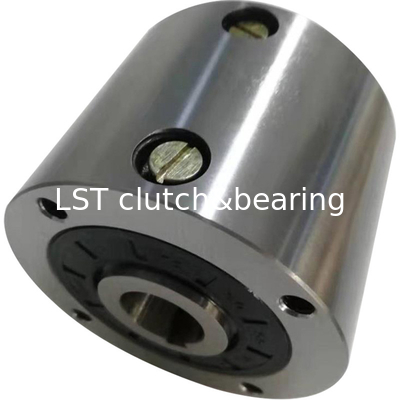

sprag  type one way clutch cam clutch MG300/MI300 mechanical clutch 6



Backstop

A Backstop application is where rotation

is allowed in one direction and stopped in

the opposite.

Application examples:

· Conveyor equipment

· Mixers

· High voltage switches

· Furniture industry

· Turnstiles and revolving doors

· Geared motors

· Winches

· Elevators

· Cranes

· Strap/belt tighteners

· Bucket conveyors

· Belt reversing locks

· Fans

· Automatic doors (subway)

· Fire damper flaps

· Aviation technology

· Roller plants

· Summer skiing



Indexing clutch

A repeated drive then idle motion will

be transferred to the driven side, step by

step, as rotary motion in one direction (the

clamping direction).



Application examples:

·Paper processing (advance)

· Seeding machines

· Staplers (staples)

· Conveyor belts (drive)

· Ratchets

· Ratchet wrenches

· Roller advance

· Installation tools

· Automation technology





Overrunning clutch

If the speed of the driven side exceeds the

speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

Application examples:

·Copier machines

· Printing machines

· Conveyor equipment

· Transport equipment (speed matching)

· Starters for combustion engines

· Ergometers

· E-bikes

· Bicycle hubs

· Starters

· Emergency power aggregates

· Generators

· Hybrid applications (E-mobility)

· Palletizing and storage systems

· Model helicopters

· Hand operated sirens

· Roller coasters

· Washing systems

· Continuous ovens

· Compressors

· Compensating gearboxes

· Gas turbine drives

· Pump drives

· Belt drives

· Wheelchairs







Our advanges:

sprag  type one way clutch cam clutch MG300/MI300 mechanical clutch 7



FAQ

A:Will you send me free sample?

B: It is highly encouraged to ask for the samples for quality check.



A:Do you like to serve the client only with small orders?

B:We enjoy to grow up together with all our clients whatever big or small.And WIN-WIN is our objective.



A:Could you accept OEM and customize?
B:YES, we can customize for you according to sample or drawing, but, pls provide us technical data, such as dimension and mark.


A:Is it your company is factory or Trade Company?
B:We have our own factory; our type is factory + trade.


A:How to maintain my bearings?
B:a. Soak your bearings in mineral spririts or paint thinner to remove any grease or particulates;
b. Blowbearing out with compressed air;
c.place a light drop of oil on the bearing;
d.If the bearings feel rough repeat, give the bearing a spin.


A:Could you supply door to door service?
B:Yes, by air and by express (DHL, FEDEX, TNT, ARAMEX,EMS, SF)
